Strut profile Parts
























Compare Strut profile
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Cross-section | Mass [m] [kg] | Area moment of inertia in x-direction [lx] [cm⁴] | Area moment of inertia in y-direction [ly] [cm⁴] | Weight [kg] |
|---|---|---|---|---|---|

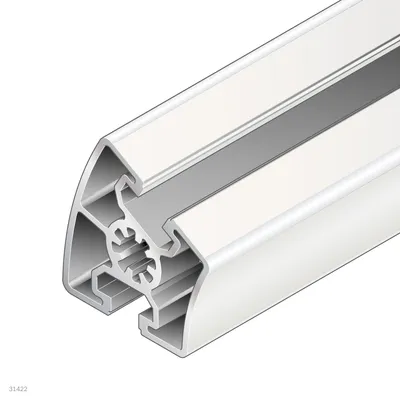

| 3842993733 | 45x30° | 1.9 | 12.7 | 15.2 | 0 |
| 3842993013 | 45x30° | 1.9 | 12.7 | 15.2 | 0 |

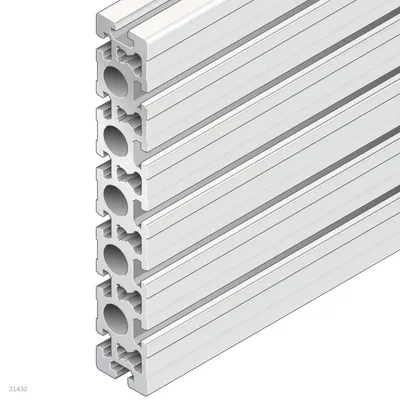

| 3842992928 | 45x270 | 16.7 | 3962 | 118 | 0 |
| 3842557949 | 45x270 | 16.7 | 3962 | 118 | 206.1 |
| 3842520025 | 45x270 | 16.7 | 3962 | 118 | 212 |
| 3842993732 | 45x270 | 16.7 | 3962 | 118 | 0 |
| 3842992927 | 45x270 | 16.7 | 3962 | 118 | 0 |

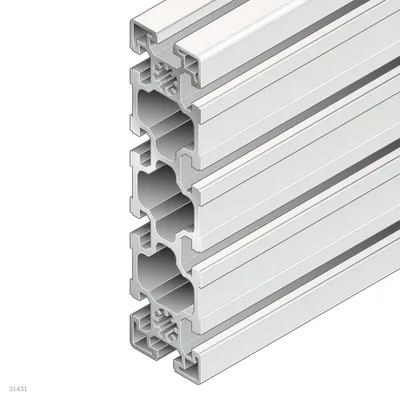

| 3842990339 | 45x180 | 6.9 | 766.7 | 57.3 | 0 |
| 3842990336 | 45x180 | 6.9 | 766.7 | 57.3 | 0 |
| 3842553623 | 45x180 | 6.9 | 766.7 | 57.3 | 42.6 |
| 3842990344 | 45x180 | 6.9 | 766.7 | 57.3 | 0 |
| 3842990342 | 45x180 | 6.9 | 766.7 | 57.3 | 0 |
| 3842553616 | 45x180 | 6.9 | 766.7 | 57.3 | 273.6 |
| 3842993731 | 45x180 | 6.9 | 766.7 | 57.3 | 0 |
| 3842990335 | 45x180 | 6.9 | 766.7 | 57.3 | 0 |

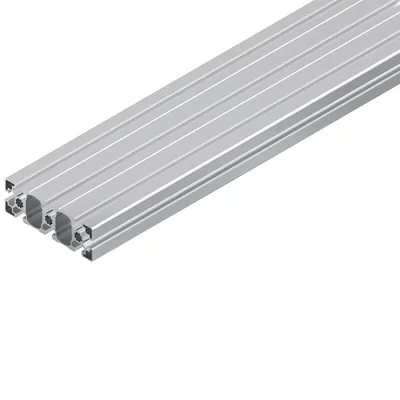

| 3842564124 | 45x135L | 4.6 | 36.2 | 267.4 | 28.4 |
| 3842564122 | 45x135L | 4.6 | 36.2 | 267.4 | 233.5 |
| 3842564125 | 45x135L 5N | 4.7 | 38.6 | 274.4 | 29 |
| 3842564123 | 45x135L 5N | 4.7 | 38.6 | 274.4 | 240.5 |
| 3842993774 | 45x135L 5N | 4.7 | 38.6 | 274.4 | 0 |
| 3842993530 | 45x135L 5N | 4.7 | 38.6 | 274.4 | 0 |
| 3842993773 | 45x135L | 4.6 | 36.2 | 267.4 | 0 |
| 3842993528 | 45x135L | 4.6 | 36.2 | 267.4 | 0 |
| 3842529370 | 40x80x80L | 4.2 | 96.6 | 96.6 | 25.61 |
Common to all listed parts
| Profile slot | 10 |
| Color | Natural |
| Material | Aluminum, anodized |
