Bosch Rexroth 3842553616

STRUT PROFILE 45X180 6X6070MM

MPN: 3842553616
Category: Strut profile

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842553616?

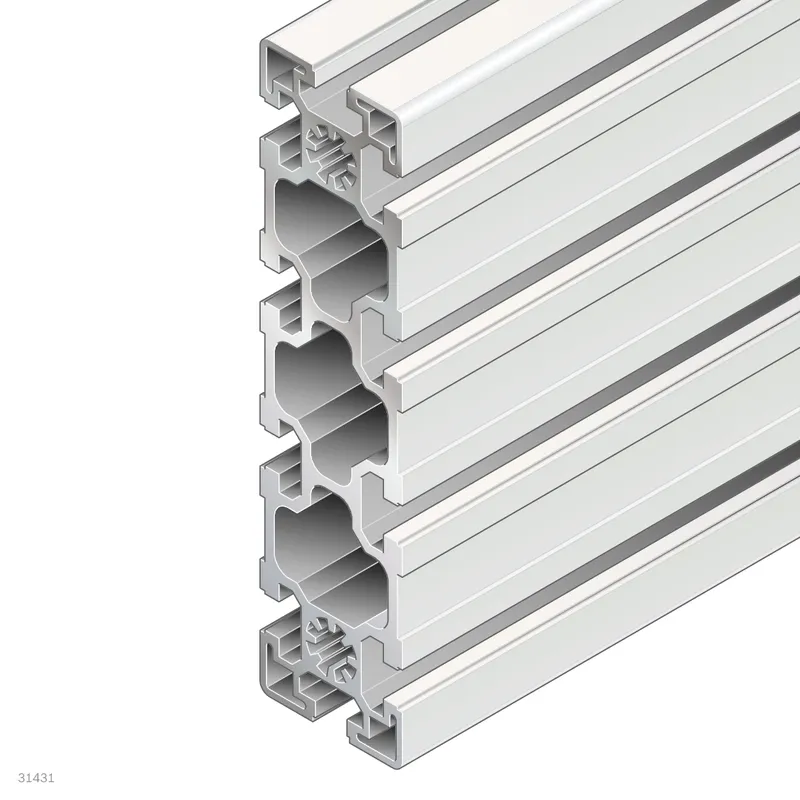

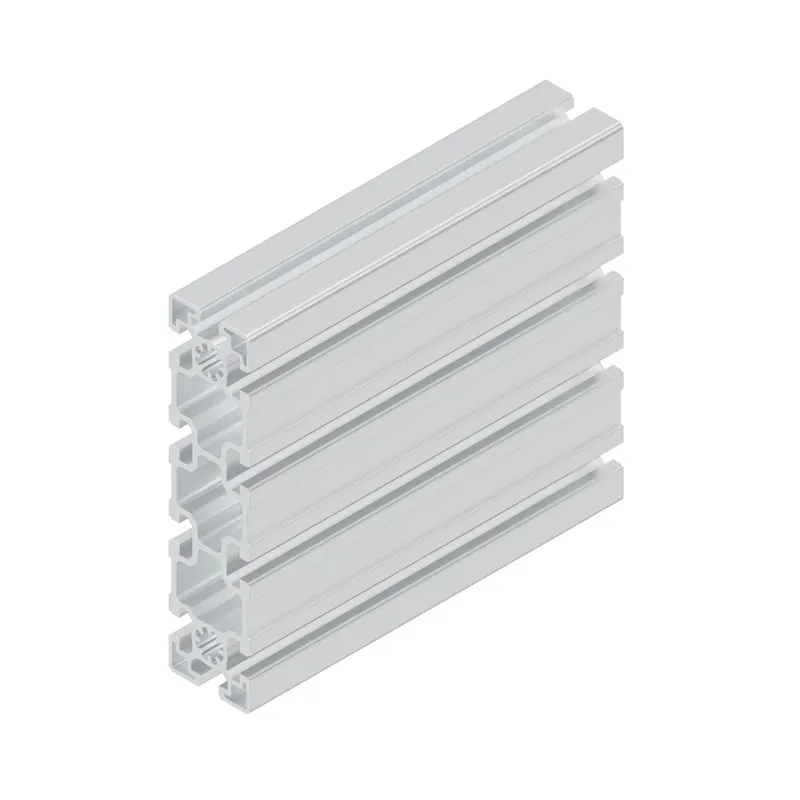

Strut profile 45x180, 6xL=6070mm

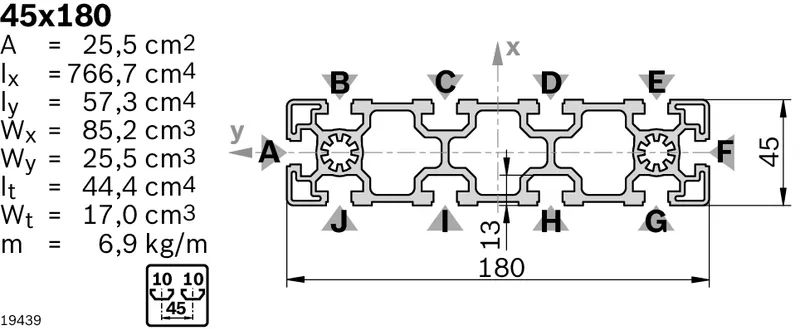

Specifications

Condition on delivery	Packaging unit in standard length
Cross-section	45x180
Modular dimension [mm]	45
Profile slot	10
ESD	Yes
Dimensions	45x180
Open slots	10.0
Profile type	Standard
Color	Natural
Delivery unit	6
Mass [m] [kg]	6.9
Area moment of inertia in x-direction [lx] [cm⁴]	766.7
Area moment of inertia in y-direction [ly] [cm⁴]	57.3
Profile surface [A] [cm²]	25.5
Moment of resistance in the x-direction [Wx] [cm³]	85.2
Moment of resistance in the y-direction [Wy] [cm³]	25.5
Torsional moment of inertia [It] [cm⁴]	44.4
Moment of torsion resistance [Wt] [cm³]	17.0
Profile adaption	D17: in slots B/J, E/G; D17V: in slots A/F; M12: in all core holes
Length [L]	6070.0
Material	Aluminum, anodized
Recommended accessories	Cover cap 45x180, black; Cover cap 45x180, signal gray
Weight [kg]	273.6
