Bosch Rexroth 3842993773

STRUT PROFILE 45X135L Q&E

MPN: 3842993773
Category: Strut profile

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842993773?

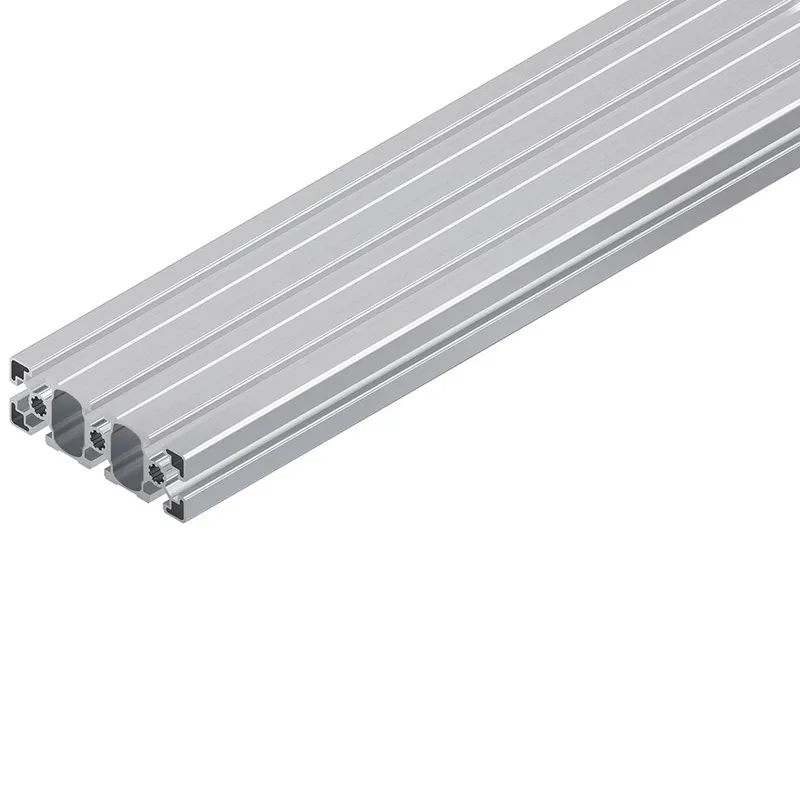

Strut profile 45x135L Q&E

Specifications

Condition on delivery	Profile finishing
Cross-section	45x135L
Modular dimension [mm]	45
Profile slot	10
Dimensions	45x135
Open slots	8.0
Profile type	Standard
Color	Natural
Length max [L max] [mm]	6070
Length min [L min] [mm]	50
Packaging unit	1
Customized profile finishing	DI / DIS / MT / MTS / MI / MIS / DG
Standard profile finishing	M12 / D9,8(B,C,D,F,G,H)<sup>1)</sup> / D17(B,C,D,F,G,H)<sup>1)</sup> / DB17 / F1(A,E)
Standard profile finishing minimum length	Observe minimum length
Mass [m] [kg]	4.6
Area moment of inertia in x-direction [lx] [cm⁴]	36.2
Area moment of inertia in y-direction [ly] [cm⁴]	267.4
Profile surface [A] [cm²]	16.8
Moment of resistance in the x-direction [Wx] [cm³]	16.1
Moment of resistance in the y-direction [Wy] [cm³]	39.6
Torsional moment of inertia [It] [cm⁴]	29.5
Moment of torsion resistance [Wt] [cm³]	8.2
Notice	DGmax = 45°; Lmin1 / Lmin2 = 534 / 768 mm; Standard profile finishing at specified slots
Material	Aluminum, anodized
Individual profile finishing [L max i] [mm]	5400
Recommended accessories	Cover cap 45x45, black ESD; Cover cap 45x45, signal gray; Cover cap 45x90, black ESD; Cover cap 45x90, signal gray
Weight [kg]	0
