Strut profile Parts
























Compare Strut profile
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Cross-section | Profile type | Torsional moment of inertia [It] [cm⁴] | Moment of torsion resistance [Wt] [cm³] | Weight [kg] |
|---|---|---|---|---|---|

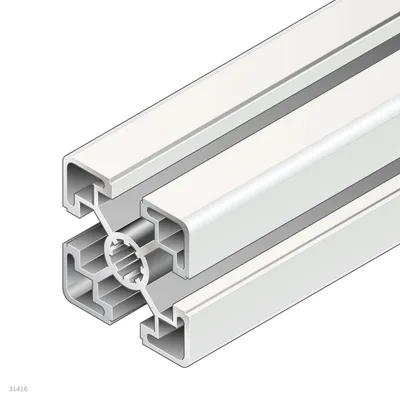

| 3842992960 | 45x45L | Standard | 1.46 | 0.75 | 0 |
| 3842992426 | 45x45L | Standard | 1.46 | 0.75 | 0 |
| 3842553618 | 45x45L | Standard | 1.46 | 0.75 | 9.9 |
| 3842992967 | 45x45L | Standard | 1.46 | 0.75 | 0 |
| 3842992956 | 45x45L | Standard | 1.46 | 0.75 | 0 |
| 3842992954 | 45x45L | Standard | 1.46 | 0.75 | 0 |
| 3842557235 | 45x45L 3N | 3N | 3.4 | 2.4 | 10.2 |
| 3842557225 | 45x45L 3N | 3N | 3.4 | 2.4 | 204.8 |
| 3842993741 | 45x45L 3N | 3N | 3.4 | 2.4 | 0 |
| 3842992404 | 45x45L 3N | 3N | 3.4 | 2.4 | 0 |

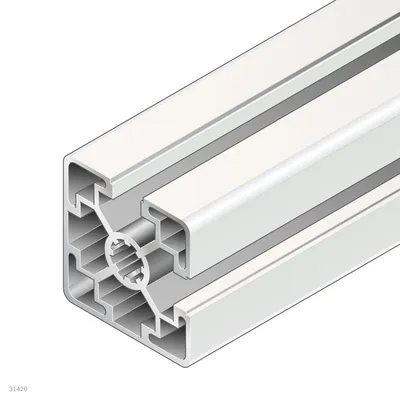

| 3842557233 | 45x45L 2NVS | 2NVS | 6.3 | 3.8 | 10.6 |
| 3842557223 | 45x45L 2NVS | 2NVS | 6.3 | 3.8 | 212.2 |
| 3842993740 | 45x45L 2NVS | 2NVS | 6.3 | 3.8 | 0 |
| 3842992402 | 45x45L 2NVS | 2NVS | 6.3 | 3.8 | 0 |

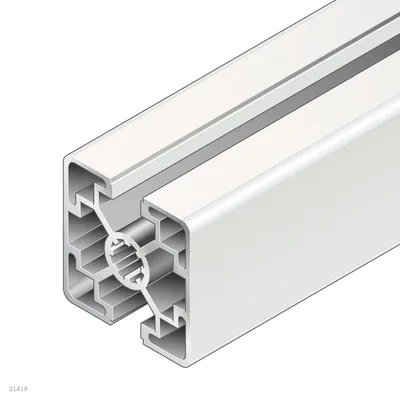

| 3842557234 | 45x45L 2N | 2N | 5.5 | 4.3 | 10.6 |
| 3842557224 | 45x45L 2N | 2N | 5.5 | 4.3 | 212.2 |
| 3842993739 | 45x45L 2N | 2N | 5.5 | 4.3 | 0 |
| 3842992403 | 45x45L 2N | 2N | 5.5 | 4.3 | 0 |
| 3842553611 | 45x45L | Standard | 1.46 | 0.75 | 216 |

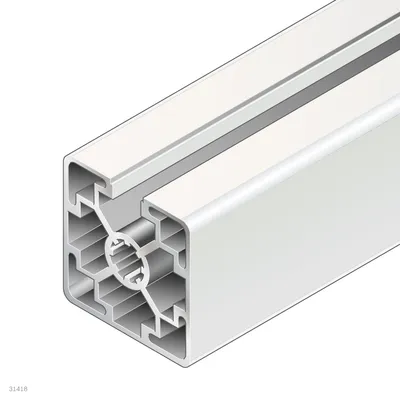

| 3842557232 | 45x45L 1N | 1N | 10.0 | 5.2 | 10.9 |
| 3842557222 | 45x45L 1N | 1N | 10.0 | 5.2 | 218.4 |
| 3842993738 | 45x45L 1N | 1N | 10.0 | 5.2 | 0 |
| 3842992401 | 45x45L 1N | 1N | 10.0 | 5.2 | 0 |

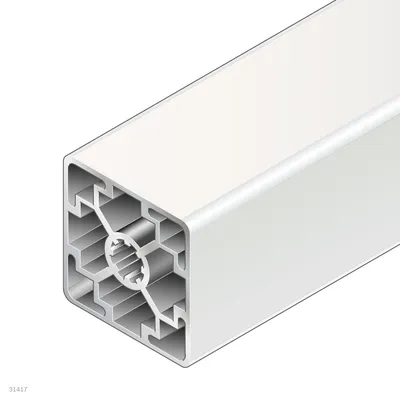

| 3842540955 | 45x45L 0N | 0N | 16.2 | 6.1 | 207 |
Common to all listed parts
| Modular dimension [mm] | 45 |
| Profile slot | 10 |
| Dimensions | 45x45 |
| Color | Natural |
| Material | Aluminum, anodized |
