Bosch Rexroth 3842564123

STRUT PROFILE 45X135L 5N 8X6070MM

MPN: 3842564123
Category: Strut profile

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842564123?

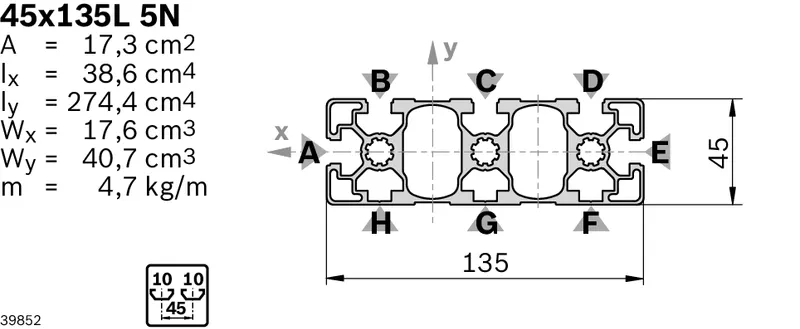

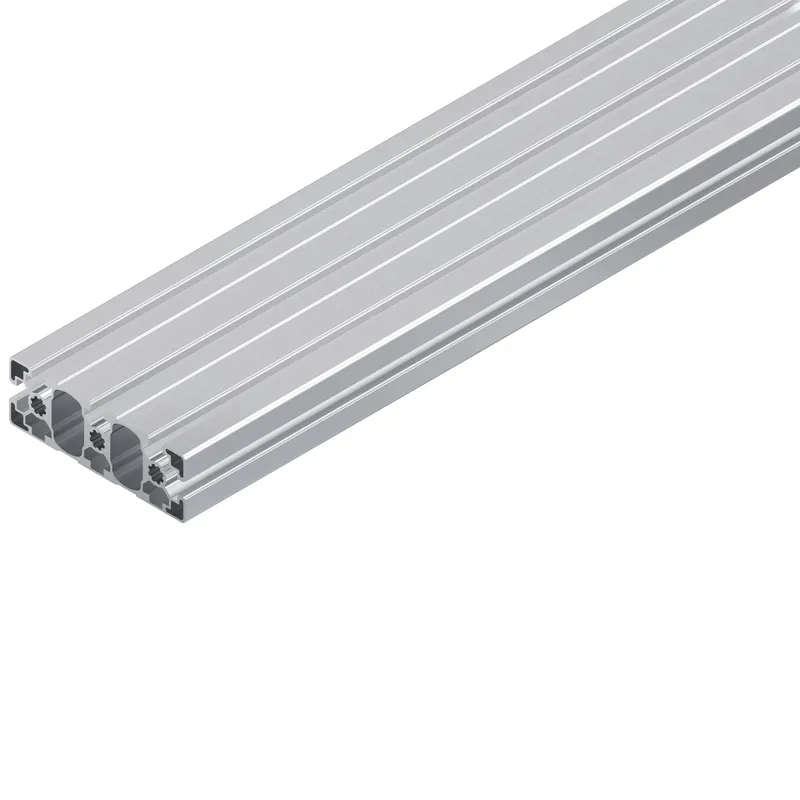

Strut profile 45x135L 5N, 8XL=6070 mm

Specifications

Condition on delivery	Packaging unit in standard length
Cross-section	45x135L 5N
Modular dimension [mm]	45
Profile slot	10
Dimensions	45x135
Open slots	5.0
Profile type	5N
Color	Natural
Delivery unit	8
Mass [m] [kg]	4.7
Area moment of inertia in x-direction [lx] [cm⁴]	38.6
Area moment of inertia in y-direction [ly] [cm⁴]	274.4
Profile surface [A] [cm²]	17.3
Moment of resistance in the x-direction [Wx] [cm³]	17.6
Moment of resistance in the y-direction [Wy] [cm³]	40.7
Torsional moment of inertia [It] [cm⁴]	32.5
Moment of torsion resistance [Wt] [cm³]	10.9
Length [L]	6070.0
Material	Aluminum, anodized
Recommended accessories	Cover cap 45x45, black ESD; Cover cap 45x45, signal gray; Cover cap 45x90, black ESD; Cover cap 45x90, signal gray
Weight [kg]	240.5
