Linear sets with linear bushings Parts
Compare Linear sets with linear bushings
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Shaft diameter d [mm] | Dynamic load capacity C [N] | Dynamic torsional moment load capacity Mt [Nm] | Outer diameter D [mm] | Weight [kg] |
|---|---|---|---|---|---|
| R109953089 | 30.0 | 6000.0 | 60.0 | 47.0 | 0 |
| R109953085 | 30.0 | 6000.0 | 60.0 | 47.0 | 8.39 |
| R109953080 | 30.0 | 6000.0 | 60.0 | 47.0 | 6.4 |
| R109953088 | 30.0 | 6000.0 | 60.0 | 47.0 | 13.3 |

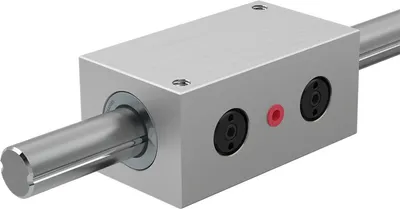

| R109953087 | 30.0 | 6000.0 | 60.0 | 47.0 | 0.1 |
| R109953069 | 30.0 | 6000.0 | 60.0 | 47.0 | 0 |
| R109953086 | 30.0 | 6000.0 | 60.0 | 47.0 | 0 |
| R109952579 | 25.0 | 4900.0 | 40.0 | 40.0 | 0 |
| R109952589 | 25.0 | 4900.0 | 40.0 | 40.0 | 0 |
| R109952585 | 25.0 | 4900.0 | 40.0 | 40.0 | 5.04 |
| R109952580 | 25.0 | 4900.0 | 40.0 | 40.0 | 3.8 |
| R109952588 | 25.0 | 4900.0 | 40.0 | 40.0 | 0.1 |
| R109952587 | 25.0 | 4900.0 | 40.0 | 40.0 | 0.1 |
| R109952569 | 25.0 | 4900.0 | 40.0 | 40.0 | 0 |
| R109952586 | 25.0 | 4900.0 | 40.0 | 40.0 | 0 |
| R109952079 | 20.0 | 2500.0 | 20.0 | 32.0 | 0 |
| R109952089 | 20.0 | 2500.0 | 20.0 | 32.0 | 0 |
| R109952085 | 20.0 | 2500.0 | 20.0 | 32.0 | 3.69 |
| R109952080 | 20.0 | 2500.0 | 20.0 | 32.0 | 1.95 |
| R109952088 | 20.0 | 2500.0 | 20.0 | 32.0 | 0.1 |
| R109952087 | 20.0 | 2500.0 | 20.0 | 32.0 | 0.1 |
| R109952086 | 20.0 | 2500.0 | 20.0 | 32.0 | 0 |
| R109855079 | 50.0 | 9250.0 | 167.0 | 75.0 | 0 |
| R109855089 | 50.0 | 9250.0 | 167.0 | 75.0 | 0 |
Common to all listed parts
| Series | Torque |
| Type | Linear set |
| Maximum acceleration rate amax [m/s²] | 150.0 |
| Maximum permissible linear speed vmax [m/s] | 3.0 |
| Permissible ambient temperature (min. ... max.) | -10 °C ... +80 °C |
