Bosch Rexroth R109852580

LINEAR-SET LSADR2-25-WV-500

MPN
R109852580
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Bosch Rexroth parts? We buy surplus →

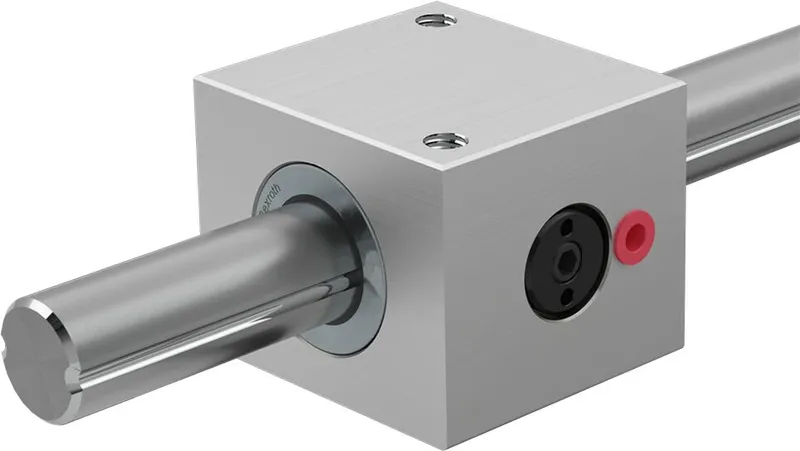

What is the Bosch Rexroth R109852580?

Linear set (aluminum)

1 torque-resistant LB

Ball guide grooves = 2

Shaft diameter d = 25

Shaft included

500 = standard length as per table

Without seal

Version: Standard

Lightweight precision tandem housing (aluminum)

Precision steel shaft with two ball guide grooves

torque-resistant linear bushing

Torque-transmitting, hardened steel bearing plates set to zero clearance ex works

Stability against cocking loads

External seals

Relubricatable

Specifications

Specifications

Shaft diameter d [mm]25.0
SeriesTorque
TypeLinear set
Dynamic load capacity C [N]3030.0
Note: dynamic load capacity CThe load capacities indicated are minimal values as the direction of loading cannot always be clearly defined.
Maximum acceleration rate amax [m/s²]150.0
Maximum permissible linear speed vmax [m/s]3.0
Dynamic torsional moment load capacity Mt [Nm]24.0
Outer diameter D [mm]40.0
Mass m (kg/m) [kg/m]3.8
Permissible ambient temperature (min. ... max.)-10 °C ... +80 °C
Weight [kg]3.13
Static load capacity C0 [N]2180.0
Note: static load capacity C0The load capacities indicated are minimal values as the direction of loading cannot always be clearly defined.

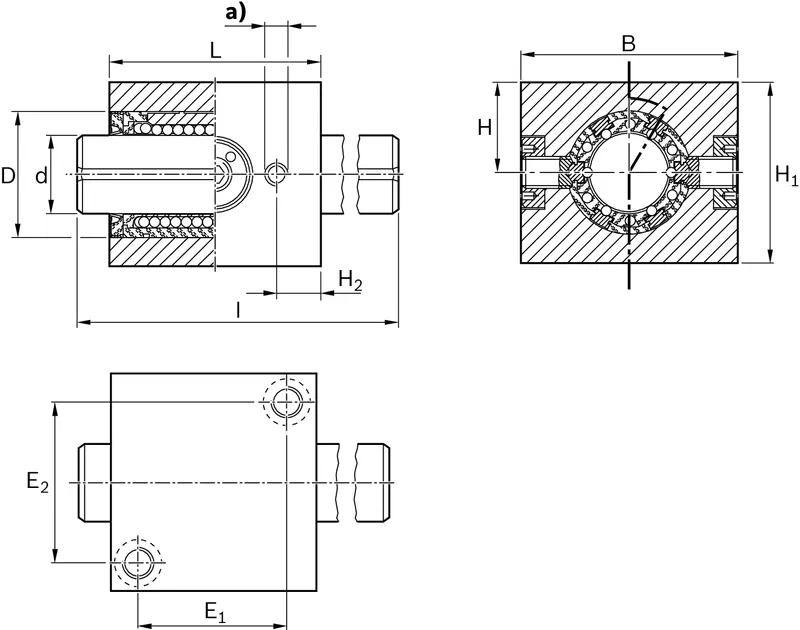

Dimension B (profiled rail systems) [mm]74
Dimension D [mm]40
Dimension E1 [mm]48
Dimension E2 [mm]54
Dimension H [mm]30.0
Dimension H1 (profiled rail systems) [mm]60
Dimension L [mm]68
Standard length l of the shaft footnote [mm]R.... ... 85: l = 900 mm, R.... ... 87: l = 1200 mm, R.... ... 88: l = 2000 mm
Standard length l of the shaft [mm]500

R109852580: frequently asked questions

When can R109852580 be shipped?

R109852580 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up R109852580 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for R109852580 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R109852580, subject to availability and destination.
