Linear sets with linear bushings Parts
Compare Linear sets with linear bushings
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Dynamic load capacity C [N] | Weight [kg] | Static load capacity C0 [N] | Breakaway force [N] | Dimension L [mm] |
|---|---|---|---|---|---|
| R170144020 | 13500.0 | 1.76 | 10400.0 | 12 | 81 |
| R170143020 | 8800.0 | 0.95 | 7180.0 | 9 | 69 |
| R170142520 | 6190.0 | 0.62 | 4530.0 | 7 | 59 |
| R170142020 | 3530.0 | 0.31 | 2530.0 | 5 | 46 |
| R170126020 | 23500.0 | 5 | 18700.0 | 18 | 126 |

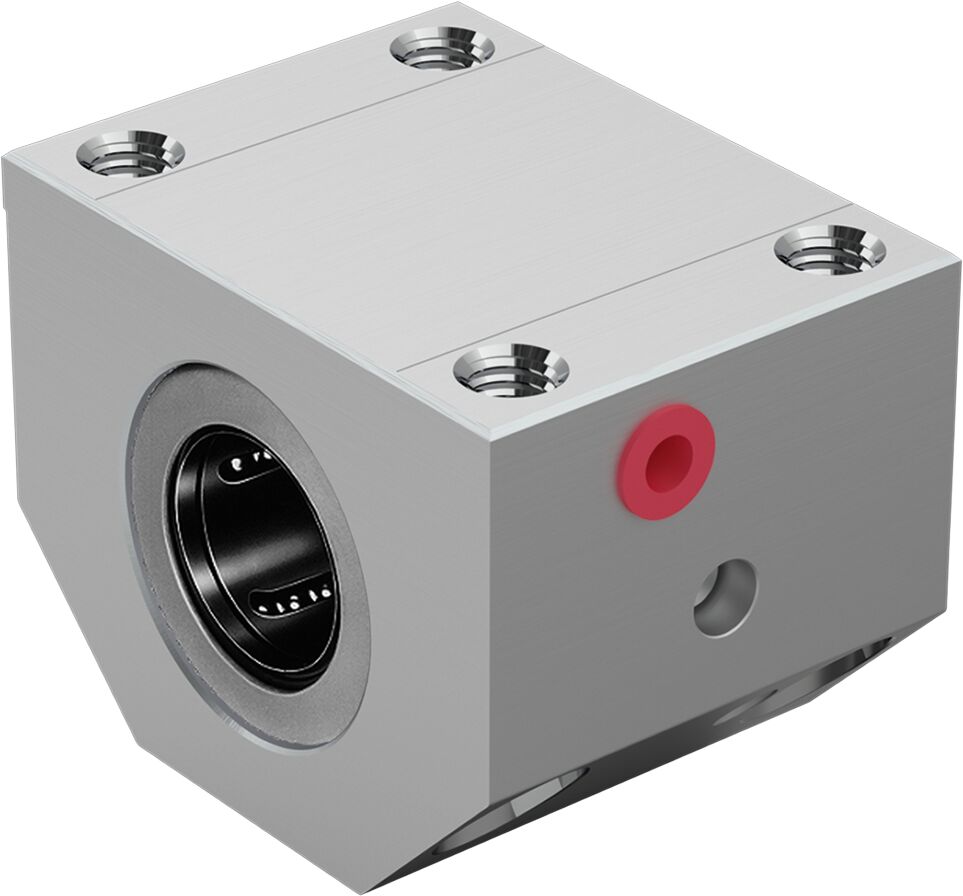

| R170125020 | 16000.0 | 2.7 | 12200.0 | 15 | 101 |
| R170124020 | 9680.0 | 1.59 | 7600.0 | 12 | 81 |
| R170123020 | 6300.0 | 0.87 | 5230.0 | 9 | 69 |
| R170122520 | 4430.0 | 0.59 | 3360.0 | 7 | 59 |
| R170122020 | 2520.0 | 0.3 | 1880.0 | 5 | 46 |
| R108363020 | 7800.0 | 1.43 | 5580.0 | 6 | 152 |
| R108362520 | 6420.0 | 0.98 | 4360.0 | 4.5 | 130 |

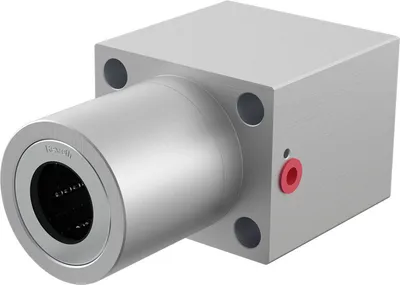

| R108362020 | 3280.0 | 0.52 | 2100.0 | 3 | 104 |
| R108361620 | 1660.0 | 0.29 | 1060.0 | 2 | 84 |
| R108361220 | 1350.0 | 0.2 | 840.0 | 1.5 | 76 |
| R103685020 | 14730.0 | 3 | 8280.0 | 10 | 113 |
| R103684020 | 10070.0 | 1.77 | 5570.0 | 8 | 91 |
| R103683020 | 5860.0 | 1 | 3570.0 | 6 | 79 |
| R103682520 | 4820.0 | 0.67 | 2790.0 | 4.5 | 67 |
| R103682020 | 2470.0 | 0.35 | 1340.0 | 3 | 54 |

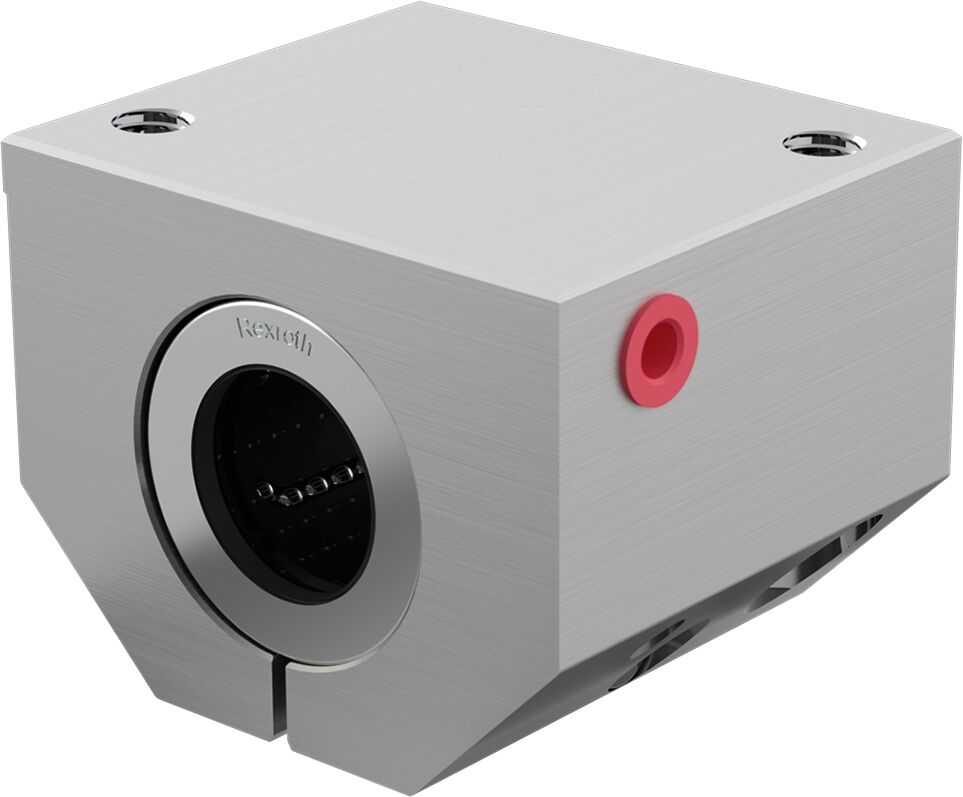

| R103681620 | 1250.0 | 0.21 | 620.0 | 2 | 43 |
| R103681220 | 1020.0 | 0.13 | 490.0 | 1.5 | 39 |
| R103681020 | 730.0 | 0.11 | 380.0 | 1 | 36 |
| R103665020 | 14730.0 | 3 | 8280.0 | 10 | 113 |
Common to all listed parts
| Type | Linear set |
| Maximum acceleration rate amax [m/s²] | 150.0 |
