Linear sets with linear bushings Parts
Compare Linear sets with linear bushings
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Dynamic load capacity C [N] | Weight [kg] | Static load capacity C0 [N] | Breakaway force [N] | Dimension H1 (profiled rail systems) [mm] |
|---|---|---|---|---|---|
| R170422070 | 2520.0 | 0.25 | 1880.0 | 7.5 | 42 |

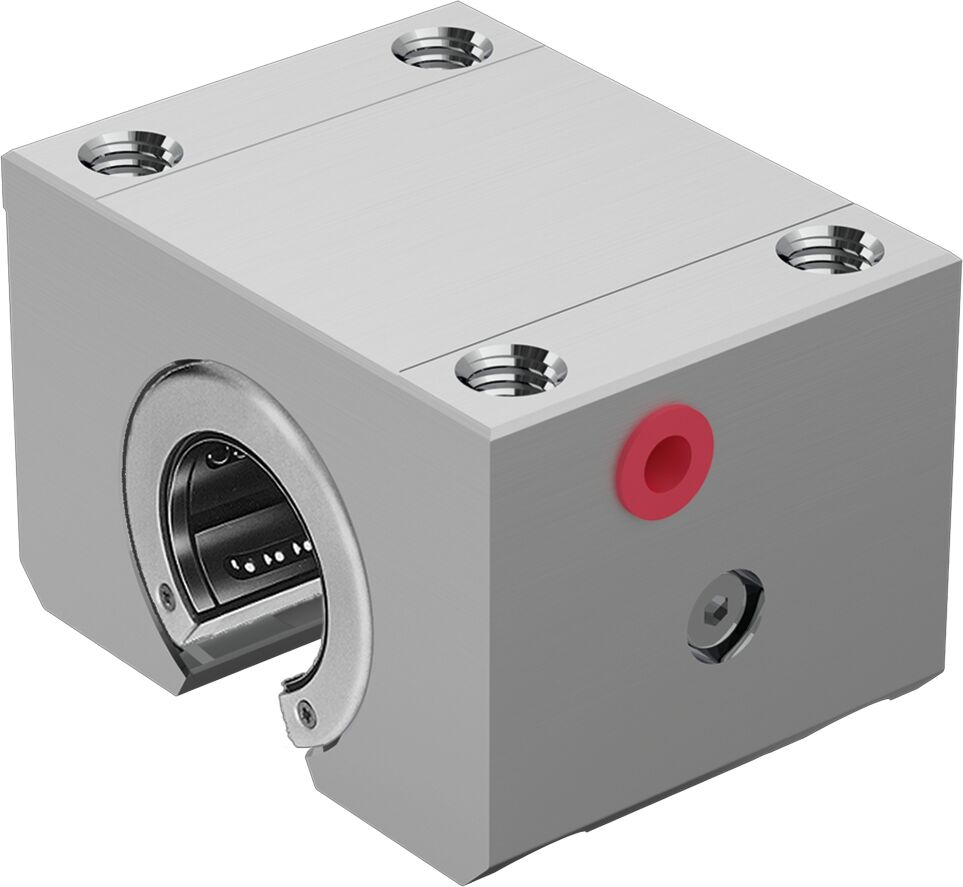

| R170345070 | 22300.0 | 2.66 | 16800.0 | 22.5 | 88 |
| R170344070 | 13500.0 | 1.5 | 10400.0 | 18 | 77 |
| R170343070 | 8800.0 | 0.8 | 7180.0 | 13.5 | 60 |
| R170342570 | 6190.0 | 0.53 | 4530.0 | 10.5 | 51 |
| R170342070 | 3530.0 | 0.26 | 2530.0 | 7.5 | 42 |
| R170326070 | 23500.0 | 4.33 | 18700.0 | 27 | 105 |
| R170325070 | 16000.0 | 2.31 | 12200.0 | 22.5 | 88 |
| R170324070 | 9680.0 | 1.36 | 7600.0 | 18 | 77 |
| R170323070 | 6300.0 | 0.74 | 5230.0 | 13.5 | 60 |
| R170322570 | 4430.0 | 0.51 | 3360.0 | 10.5 | 51 |
| R170322070 | 2520.0 | 0.25 | 1880.0 | 7.5 | 42 |
| R170245020 | 22300.0 | 3.01 | 16800.0 | 15 | 105 |
| R170244020 | 13500.0 | 1.75 | 10400.0 | 12 | 90 |
| R170243020 | 8800.0 | 0.95 | 7180.0 | 9 | 70 |
| R170242520 | 6190.0 | 0.62 | 4530.0 | 7 | 60 |
| R170242020 | 3530.0 | 0.31 | 2530.0 | 5 | 50 |
| R170226020 | 23500.0 | 4.9 | 18700.0 | 18 | 125 |
| R170225020 | 16000.0 | 2.7 | 12200.0 | 15 | 105 |
| R170224020 | 9680.0 | 1.58 | 7600.0 | 12 | 90 |

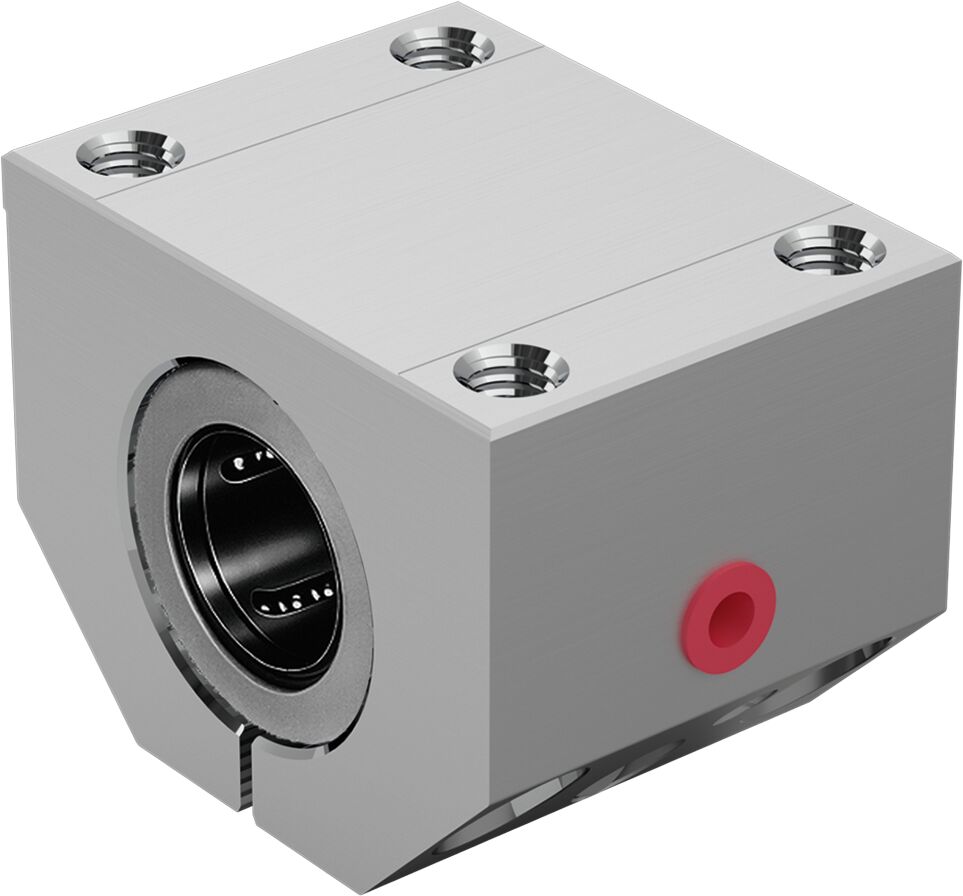

| R170223020 | 6300.0 | 0.87 | 5230.0 | 9 | 70 |
| R170222520 | 4430.0 | 0.59 | 3360.0 | 7 | 60 |
| R170222020 | 2520.0 | 0.3 | 1880.0 | 5 | 50 |

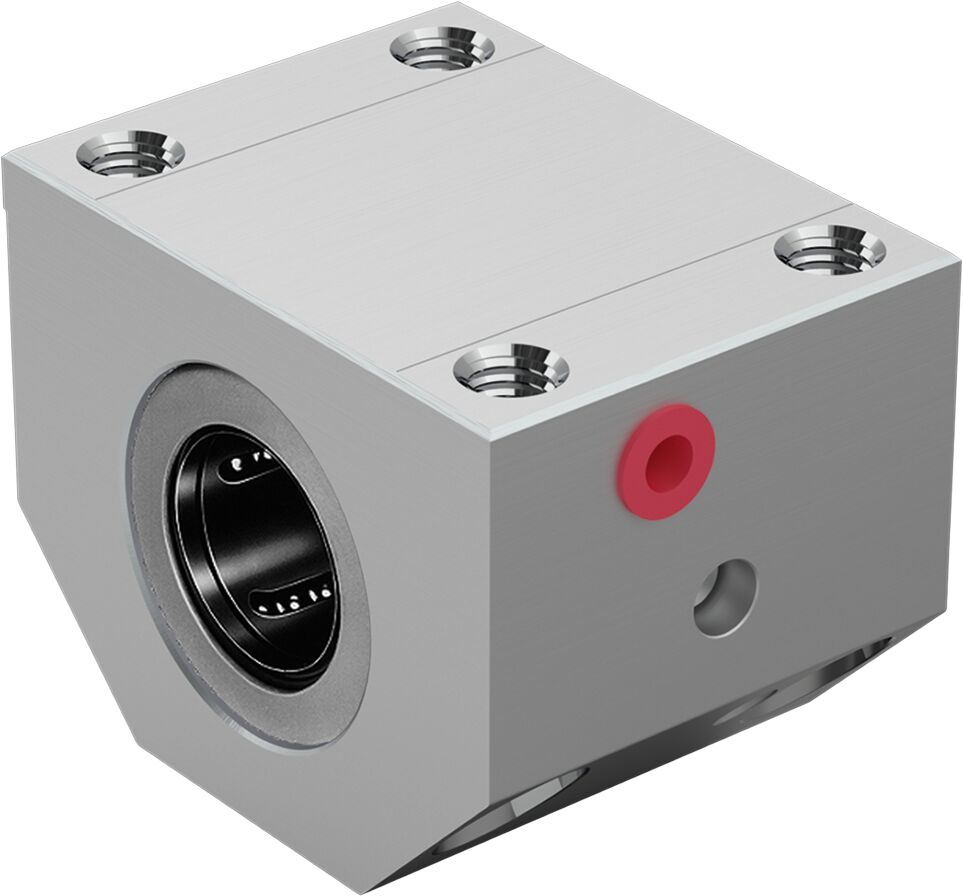

| R170145020 | 22300.0 | 3.02 | 16800.0 | 15 | 105 |
Common to all listed parts
| Type | Linear set |
| Note: dynamic load capacity C | The load capacities apply for the main direction of loading. |
| Maximum acceleration rate amax [m/s²] | 150.0 |
| Maximum permissible linear speed vmax [m/s] | 5.0 |
| Permissible ambient temperature (min. ... max.) | -20 °C ... +80 °C |
| Note: static load capacity C0 | The load capacities apply for the main direction of loading. |
