Linear sets with linear bushings Parts
Compare Linear sets with linear bushings
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Dynamic load capacity C [N] | Weight [kg] | Static load capacity C0 [N] | Dimension E1 [mm] | Dimension E2 [mm] |
|---|---|---|---|---|---|

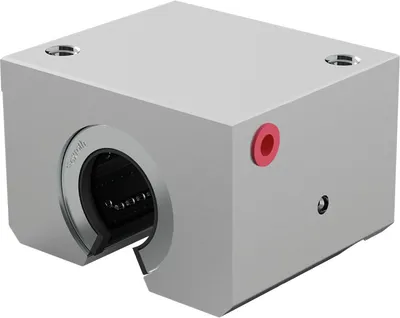

| R103762520 | 4130.0 | 0.59 | 2250.0 | 60 | 40 |
| R103762020 | 2570.0 | 0.31 | 1180.0 | 45 | 32 |
| R103761620 | 1500.0 | 0.18 | 830.0 | 40 | 26 |
| R103761220 | 1060.0 | 0.11 | 510.0 | 32 | 23 |
| R170645070 | 22300.0 | 3.31 | 16800.0 | 50 | 62 |
| R170644070 | 13500.0 | 2.05 | 10400.0 | 43 | 48 |
| R170643070 | 8800.0 | 1.09 | 7180.0 | 34 | 42 |
| R170642570 | 6190.0 | 0.73 | 4530.0 | 28 | 36 |

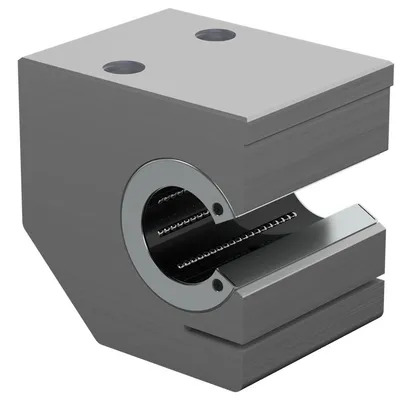

| R170642070 | 3530.0 | 0.36 | 2530.0 | 22 | 30 |
| R170625070 | 16000.0 | 3.04 | 12200.0 | 50 | 62 |
| R170624070 | 9680.0 | 1.88 | 7600.0 | 43 | 48 |
| R170623070 | 6300.0 | 1.03 | 5230.0 | 34 | 42 |
| R170622570 | 4430.0 | 0.7 | 3360.0 | 28 | 36 |
| R170622070 | 2520.0 | 0.34 | 1880.0 | 22 | 30 |
| R170445070 | 22300.0 | 2.63 | 16800.0 | 108 | 50 |
| R170444070 | 13500.0 | 1.49 | 10400.0 | 86 | 58 |

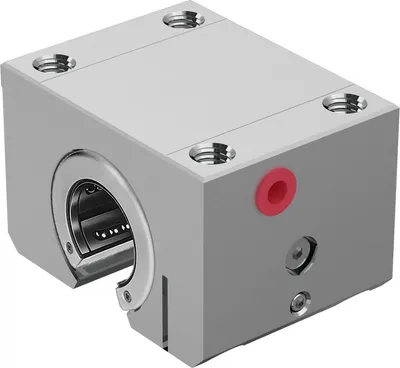

| R170443070 | 8800.0 | 0.8 | 7180.0 | 68 | 45 |
| R170442570 | 6190.0 | 0.52 | 4530.0 | 60 | 40 |
| R170442070 | 3530.0 | 0.26 | 2530.0 | 45 | 32 |
| R170426070 | 23500.0 | 4.4 | 18700.0 | 132 | 65 |
| R170425070 | 16000.0 | 2.28 | 12200.0 | 108 | 50 |
| R170424070 | 9680.0 | 1.35 | 7600.0 | 86 | 58 |
| R170423070 | 6300.0 | 0.73 | 5230.0 | 68 | 45 |
| R170422570 | 4430.0 | 0.5 | 3360.0 | 60 | 40 |
Common to all listed parts
| Type | Linear set |
| Note: dynamic load capacity C | The load capacities apply for the main direction of loading. |
| Maximum acceleration rate amax [m/s²] | 150.0 |
| Note: static load capacity C0 | The load capacities apply for the main direction of loading. |
