Bosch Rexroth R170125020

LINEAR-SET LSAH-H-50-DD

MPN: R170125020
Category: Linear sets with linear bushings

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Bosch Rexroth parts? We buy surplus →

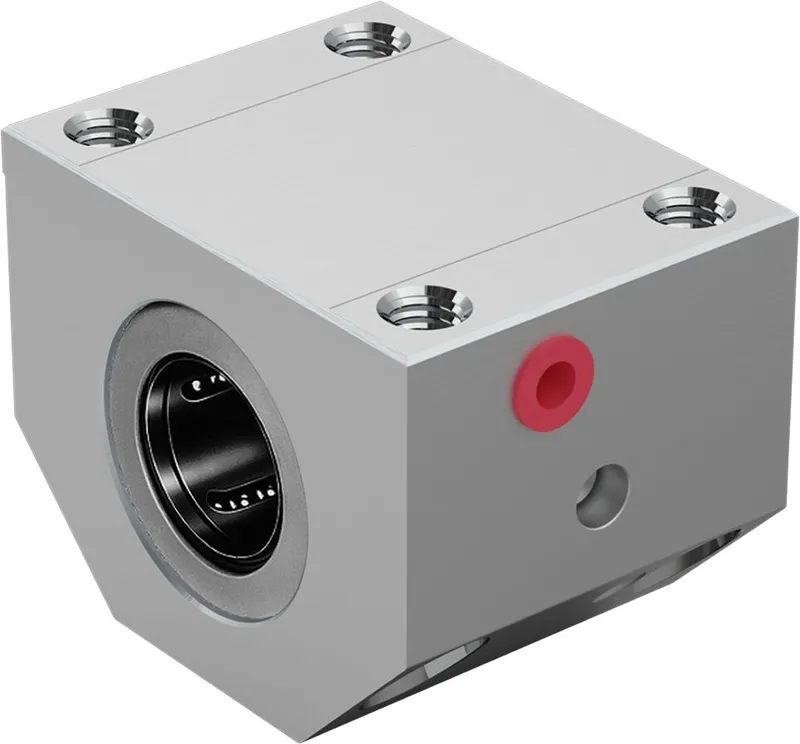

What is the Bosch Rexroth R170125020?

Linear set (aluminum)

Heavy-duty

With super LB H

Shaft diameter d = 50

With two seals

Version: Standard

Precision housing (aluminum)

super linear bushing H

Compensate for misalignments of up to 30 ft

Integrated wiper seals

Secured with bolt

Relubricatable

Specifications

Shaft diameter d [mm]	50.0
Format of linear bushings	H - Heavy-duty
Series	Super H
Type	Linear set
Dynamic load capacity C [N]	16000.0
Note: dynamic load capacity C	The load capacities apply for the main direction of loading.
Maximum acceleration rate amax [m/s²]	150.0
Maximum permissible linear speed vmax [m/s]	5.0
Outer diameter D [mm]	75.0
Permissible ambient temperature (min. ... max.)	-20 °C ... +80 °C
Weight [kg]	2.7
Static load capacity C0 [N]	12200.0
Note: static load capacity C0	The load capacities apply for the main direction of loading.
Footnote shaft radial clearance h6	Clamped (fastened).
Footnote friction force FR	Frictional drags generated by linear bushings with integrated wiper seals on two sides when not under radial load. The frictional drags depend on speed and lubrication.
Breakaway force [N]	15

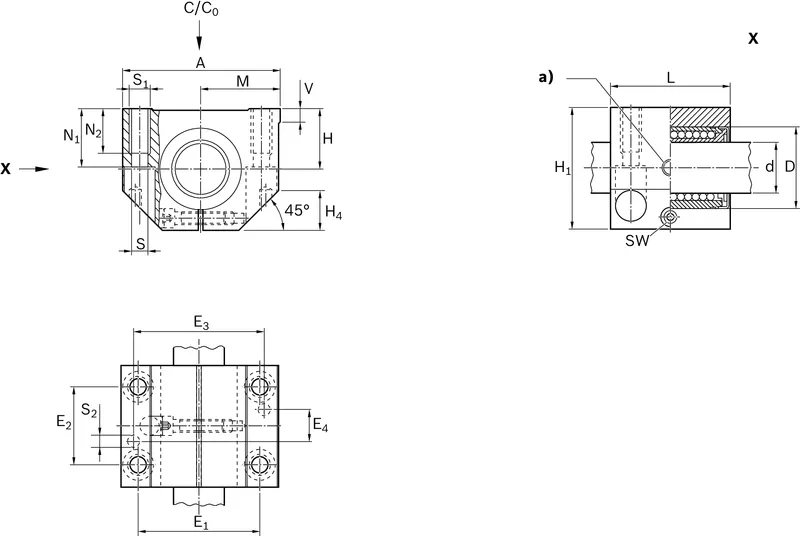

Dimension A (profiled rail systems) [mm]	132
Dimension D [mm]	75
Dimension E1 [mm]	108
Dimension E2 [mm]	50
Dimension E3 (profiled rail systems) [mm]	108
Dimension E4 [mm]	85
Dimension H [mm]	50.0
Dimension H1 (profiled rail systems) [mm]	105
Dimension H4 [mm]	37
Dimension L [mm]	101
Dimension M [mm]	66
Dimension N1 (profiled rail systems) [mm]	49
Dimension N2 (profiled rail systems) [mm]	34
Dimension S [mm]	13.5
Dimension S2 [mm]	10
Dimension SW [mm]	8
Dimension V [mm]	12
