Linear sets with linear bushings Parts
Compare Linear sets with linear bushings
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Shaft diameter d [mm] | Dynamic load capacity C [N] | Outer diameter D [mm] | Weight [kg] | Static load capacity C0 [N] |
|---|---|---|---|---|---|
| R103885020 | 50.0 | 12500.0 | 75.0 | 2.66 | 6620.0 |
| R103884020 | 40.0 | 8620.0 | 62.0 | 1.57 | 4480.0 |
| R103883020 | 30.0 | 5020.0 | 47.0 | 0.87 | 2880.0 |
| R103882520 | 25.0 | 4130.0 | 40.0 | 0.58 | 2250.0 |
| R103882020 | 20.0 | 2570.0 | 32.0 | 0.3 | 1180.0 |
| R103881620 | 16.0 | 1500.0 | 26.0 | 0.18 | 830.0 |
| R103881220 | 12.0 | 1060.0 | 22.0 | 0.11 | 510.0 |

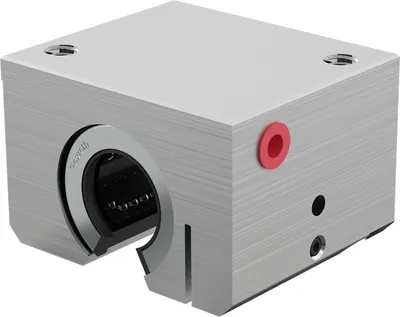

| R103865020 | 50.0 | 12500.0 | 75.0 | 2.67 | 6620.0 |
| R103864020 | 40.0 | 8620.0 | 62.0 | 1.57 | 4480.0 |
| R103863020 | 30.0 | 5020.0 | 47.0 | 0.87 | 2880.0 |
| R103862520 | 25.0 | 4130.0 | 40.0 | 0.59 | 2250.0 |
| R103862020 | 20.0 | 2570.0 | 32.0 | 0.3 | 1180.0 |
| R103861620 | 16.0 | 1500.0 | 26.0 | 0.18 | 830.0 |
| R103861220 | 12.0 | 1060.0 | 22.0 | 0.11 | 510.0 |
| R103785020 | 50.0 | 12500.0 | 75.0 | 2.68 | 6620.0 |
| R103784020 | 40.0 | 8620.0 | 62.0 | 1.58 | 4480.0 |
| R103783020 | 30.0 | 5020.0 | 47.0 | 0.88 | 2880.0 |
| R103782520 | 25.0 | 4130.0 | 40.0 | 0.59 | 2250.0 |

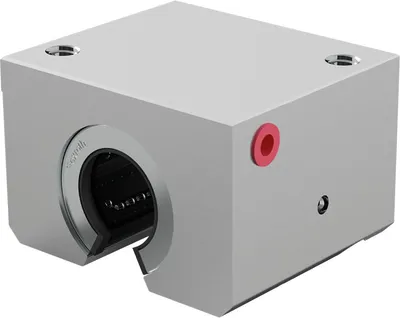

| R103782020 | 20.0 | 2570.0 | 32.0 | 0.31 | 1180.0 |
| R103781620 | 16.0 | 1500.0 | 26.0 | 0.18 | 830.0 |
| R103781220 | 12.0 | 1060.0 | 22.0 | 0.11 | 510.0 |
| R103765020 | 50.0 | 12500.0 | 75.0 | 2.69 | 6620.0 |
| R103764020 | 40.0 | 8620.0 | 62.0 | 1.59 | 4480.0 |
| R103763020 | 30.0 | 5020.0 | 47.0 | 0.88 | 2880.0 |
Common to all listed parts
| Type | Linear set |
| Note: dynamic load capacity C | The load capacities apply for the main direction of loading. |
| Maximum acceleration rate amax [m/s²] | 150.0 |
| Maximum permissible linear speed vmax [m/s] | 3.0 |
| Permissible ambient temperature (min. ... max.) | -10 °C ... +80 °C |
| Note: static load capacity C0 | The load capacities apply for the main direction of loading. |
