Bosch Rexroth R170242520

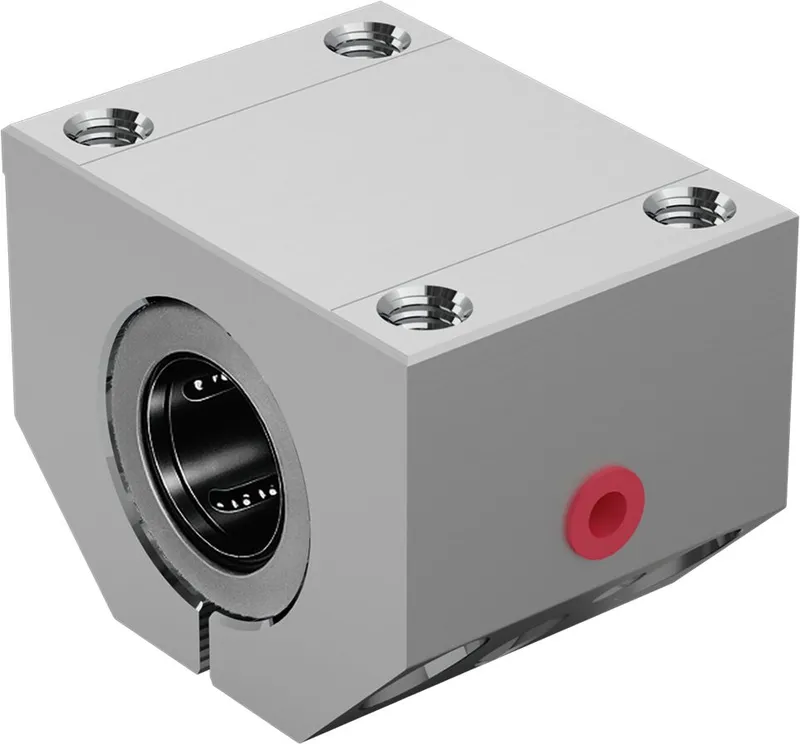

LINEAR-SET LSAHE-SH-25-DD

MPN: R170242520
Category: Linear sets with linear bushings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R170242520?

Linear set (aluminum)

Heavy-duty, adjustable

With super LB SH

Shaft diameter d = 25

With two seals

Version: Standard

Lightweight precision housing (aluminum)

super linear bushings SH

Compensate for misalignments of up to 30 ft

Integrated wiper seals

Secured with bolt

Relubricatable

Specifications

Shaft diameter d [mm]	25.0
Format of linear bushings	HE - Heavy-duty, adjustable
Series	Super SH
Type	Linear set
Dynamic load capacity C [N]	6190.0
Note: dynamic load capacity C	The load capacities apply for the main direction of loading.
Maximum acceleration rate amax [m/s²]	150.0
Maximum permissible linear speed vmax [m/s]	5.0
Radial clearance	Clamped to h5 shaft (lower limit) and set to zero-clearance before delivery
Outer diameter D [mm]	40.0
Permissible ambient temperature (min. ... max.)	-20 °C ... +80 °C
Weight [kg]	0.62
Static load capacity C0 [N]	4530.0
Note: static load capacity C0	The load capacities apply for the main direction of loading.
Footnote friction force FR	Frictional drags generated by linear bushings with integrated wiper seals on two sides when not under radial load. The frictional drags depend on speed and lubrication.
Breakaway force [N]	7
Dimension A (profiled rail systems) [mm]	78
Dimension D [mm]	40
Dimension E1 [mm]	60
Dimension E2 [mm]	40
Dimension E3 (profiled rail systems) [mm]	64
Dimension E4 [mm]	17
Dimension H [mm]	30.0
Dimension H1 (profiled rail systems) [mm]	60
Dimension H3 [mm]	10
Dimension H4 [mm]	20
Dimension L [mm]	59
Dimension L3 [mm]	21
Dimension M [mm]	39
Dimension N1 (profiled rail systems) [mm]	29
Dimension N2 (profiled rail systems) [mm]	22
Dimension S [mm]	8.4
Dimension S2 [mm]	6
Dimension SW [mm]	5
Dimension V [mm]	6.5
