Linear sets with linear bushings Parts
Compare Linear sets with linear bushings
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Dynamic load capacity C [N] | Weight [kg] | Static load capacity C0 [N] | Breakaway force [N] | Dimension N1 (profiled rail systems) [mm] |
|---|---|---|---|---|---|
| R108762020 | 4170.0 | 0.59 | 2360.0 | 3 | 35.5 |
| R108761620 | 2430.0 | 0.33 | 1660.0 | 2 | 29.5 |
| R108761220 | 1720.0 | 0.22 | 1020.0 | 1.5 | 25 |

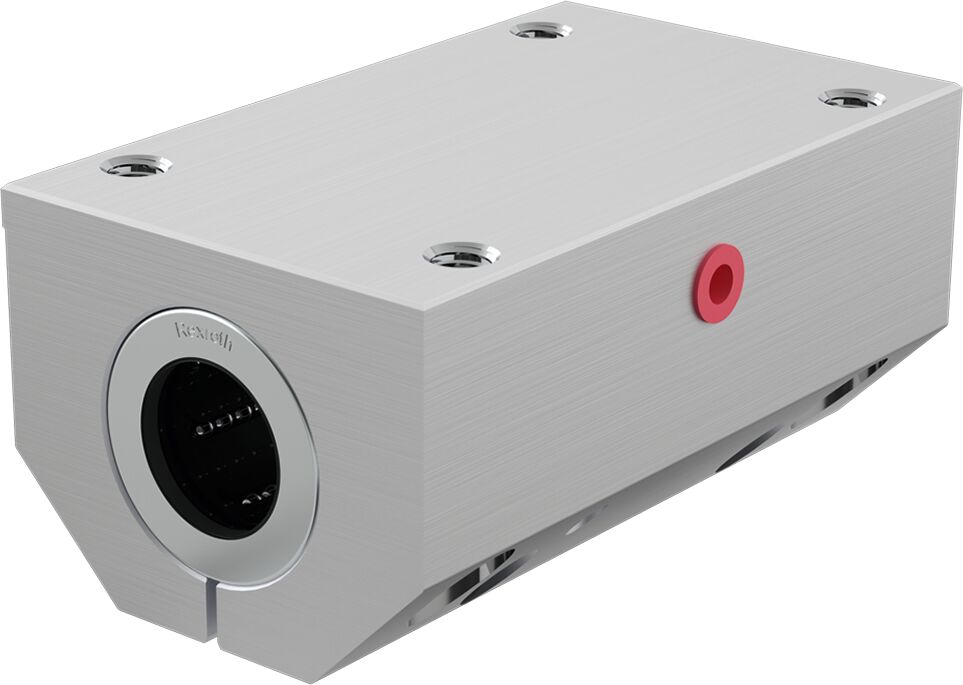

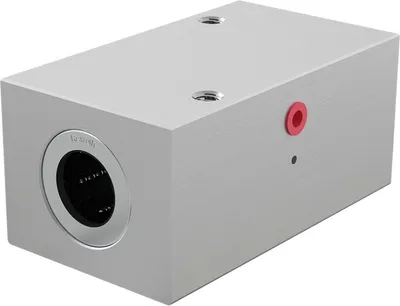

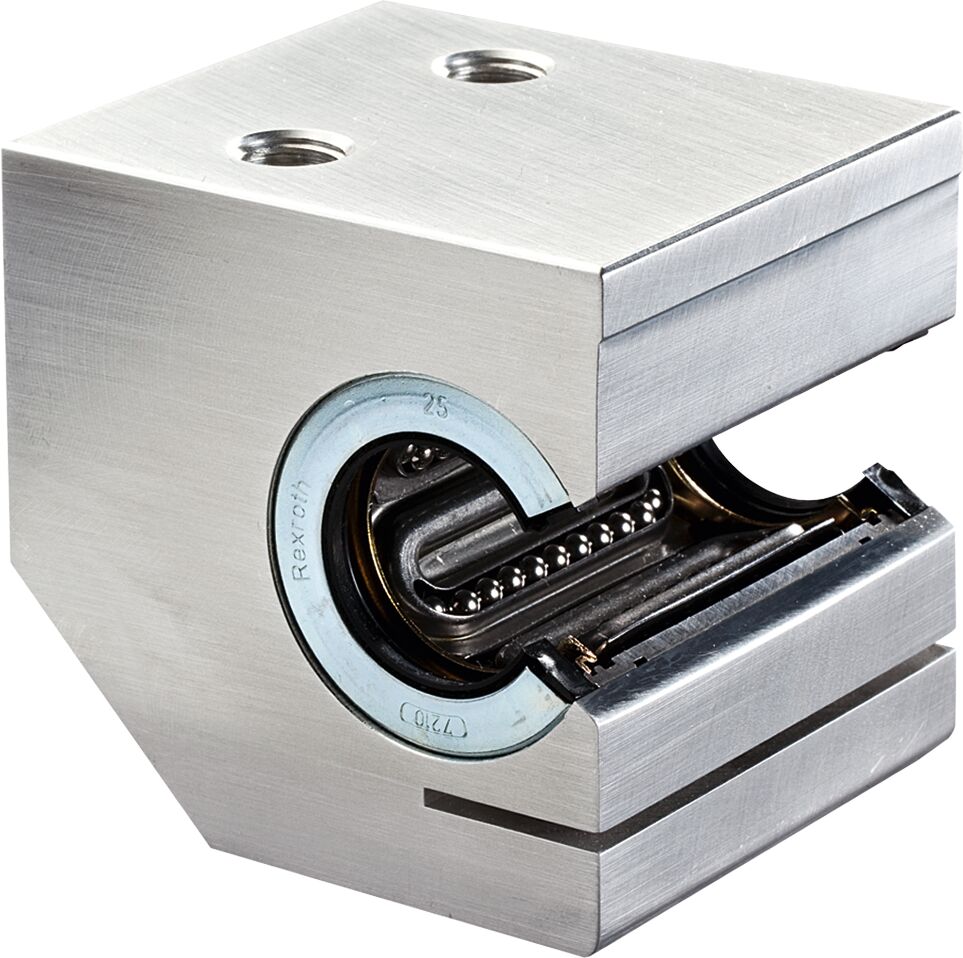

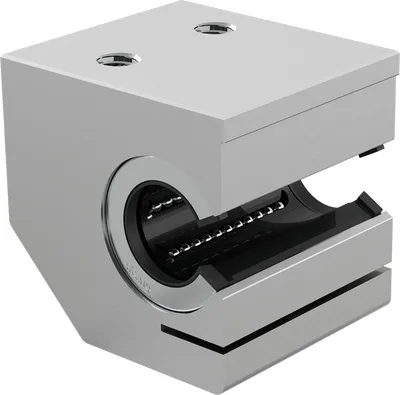

| R103265020 | 23930.0 | 6.04 | 16560.0 | 10 | — |
| R103264020 | 16360.0 | 3.46 | 11140.0 | 8 | — |
| R103263020 | 9520.0 | 1.92 | 7140.0 | 6 | — |
| R103262520 | 8180.0 | 1.28 | 4940.0 | 4.5 | — |
| R103262020 | 4010.0 | 0.66 | 2680.0 | 3 | — |
| R103261620 | 2430.0 | 0.4 | 1660.0 | 2 | — |
| R103261220 | 1660.0 | 0.25 | 980.0 | 1.5 | — |
| R103261020 | 1180.0 | 0.2 | 760.0 | 1 | — |
| R108565020 | 23930.0 | 6.9 | 16560.0 | 10 | 89 |
| R108564020 | 16360.0 | 3.88 | 11140.0 | 8 | 74 |
| R108563020 | 9520.0 | 2.08 | 7140.0 | 6 | 56 |
| R108562520 | 8180.0 | 1.37 | 4940.0 | 4.5 | 49 |
| R108562020 | 4010.0 | 0.75 | 2680.0 | 3 | 41 |
| R108561620 | 2430.0 | 0.42 | 1660.0 | 2 | 35 |
| R108561220 | 1660.0 | 0.27 | 980.0 | 1.5 | 28 |
| R107225000 | 8470.0 | 3.71 | 6900.0 | 40 | 78 |
| R107224000 | 5280.0 | 2.27 | 4000.0 | 32 | 67 |
| R107223000 | 2890.0 | 1.27 | 2390.0 | 24 | 55 |
| R107222500 | 2270.0 | 0.82 | 1750.0 | 19 | 50 |
| R107222000 | 1280.0 | 0.44 | 970.0 | 16 | 42 |
| R107285020 | 12500.0 | 3.39 | 6620.0 | 10 | 78 |
Common to all listed parts
| Type | Linear set |
| Permissible ambient temperature (min. ... max.) | -10 °C ... +80 °C |
