Bosch Rexroth R103782020

LINEAR-SET LSAO-B-20-DD

MPN: R103782020
Category: Linear sets with linear bushings

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Bosch Rexroth parts? We buy surplus →

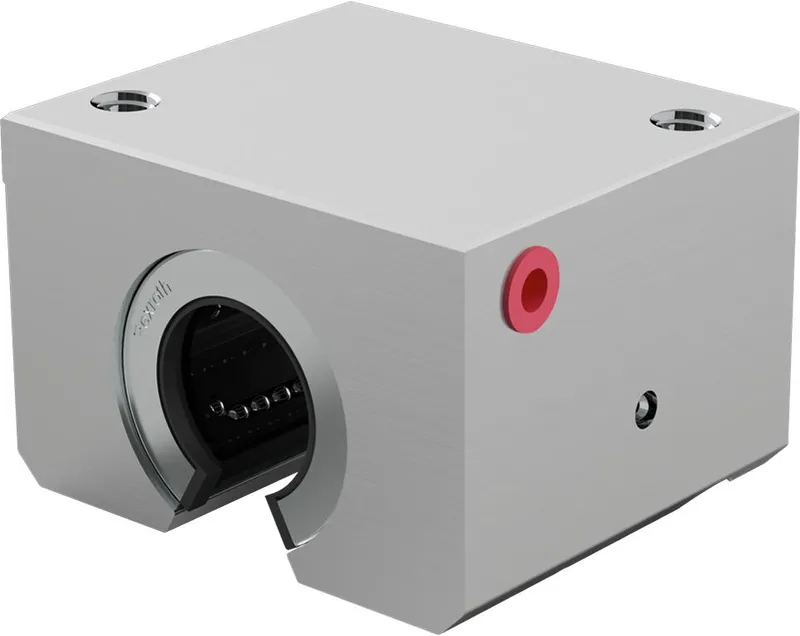

What is the Bosch Rexroth R103782020?

Linear set (aluminum)

Open

With super LB B

Shaft diameter d = 20

With two seals

Version: Standard

Lightweight precision housing (aluminum)

super linear bushing B without self-alignment feature

Secured by grooved taper pin

External seals

Relubricatable

Specifications

Shaft diameter d [mm]	20.0
Format of linear bushings	O - Open
Series	Super B (no self-alignment feature)
Type	Linear set
Dynamic load capacity C [N]	2570.0
Note: dynamic load capacity C	The load capacities apply for the main direction of loading.
Maximum acceleration rate amax [m/s²]	150.0
Maximum permissible linear speed vmax [m/s]	3.0
Note: maximum permissible speed vmax	Speeds of up to 5 m/s possible. Service life is limited by heightened wear to plastic parts. Tests have shown total travel from 50 • 10<sup>5</sup> m to 100 • 10<sup>5</sup> m without failure.
Outer diameter D [mm]	32.0
Permissible ambient temperature (min. ... max.)	-10 °C ... +80 °C
Weight [kg]	0.31
Static load capacity C0 [N]	1180.0
Note: static load capacity C0	The load capacities apply for the main direction of loading.
Footnote shaft radial clearance h6	Clamped (fastened).
Footnote friction force FR	Frictional drags generated by linear bushings with integrated wiper seals on two sides when not under radial load. The frictional drags depend on speed and lubrication.
Breakaway force [N]	3
Dimension A (profiled rail systems) [mm]	60
Dimension D [mm]	32
Dimension E1 [mm]	45
Dimension E2 [mm]	32
Dimension E3 (profiled rail systems) [mm]	50
Dimension E4 [mm]	45
Dimension H [mm]	25.0
Dimension H1 (profiled rail systems) [mm]	42
Dimension H3 [mm]	10
Dimension H4 [mm]	3.5
Dimension L [mm]	54
Dimension L3 [mm]	13.5
Dimension M [mm]	30
Dimension N1 (profiled rail systems) [mm]	24
Dimension N2 (profiled rail systems) [mm]	18
Dimension S [mm]	6.6
Dimension S2 [mm]	5
Dimension SW [mm]	2.5
Dimension V [mm]	5
Dimension W [mm]	9
Angle α [°]	55
