Linear sets with linear bushings Parts
Compare Linear sets with linear bushings
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Dynamic load capacity C [N] | Weight [kg] | Static load capacity C0 [N] | Breakaway force [N] | Dimension W [mm] |
|---|---|---|---|---|---|
| R107284020 | 8620.0 | 2.1 | 4480.0 | 8 | 19.5 |

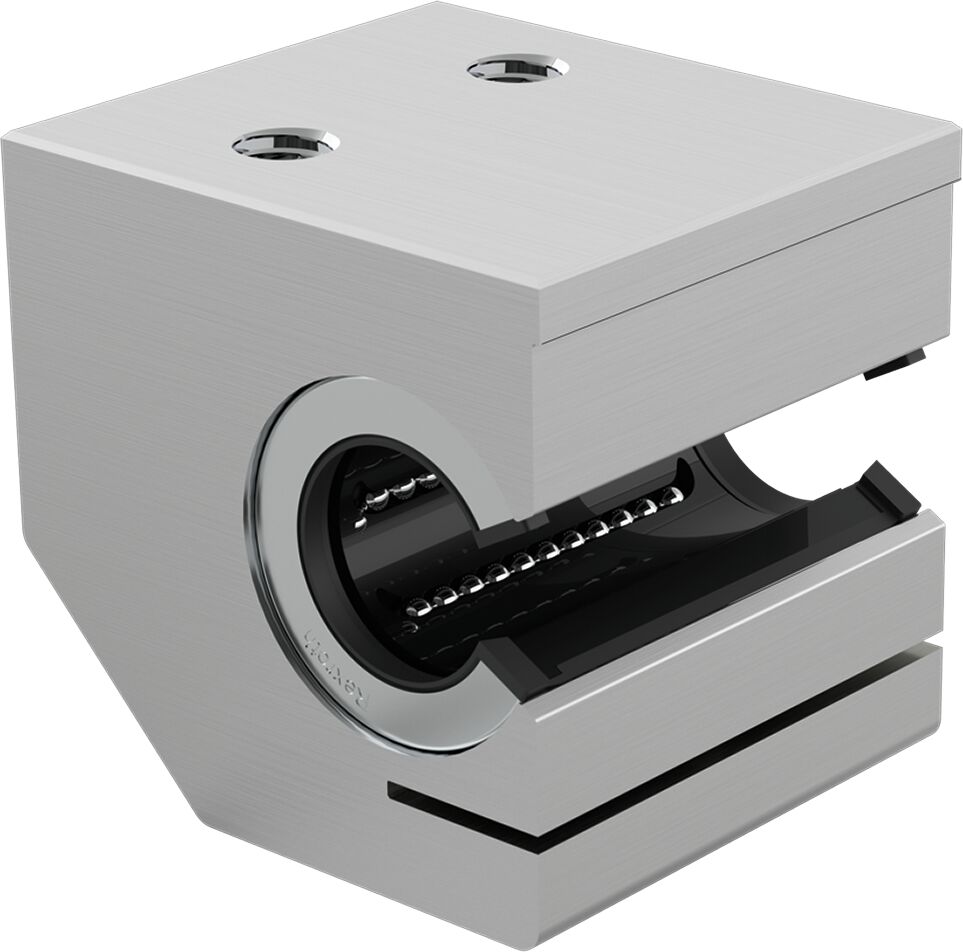

| R107283020 | 5020.0 | 1.17 | 2880.0 | 6 | 14 |
| R107282520 | 4130.0 | 0.78 | 2250.0 | 4.5 | 11.5 |
| R107282020 | 2570.0 | 0.42 | 1180.0 | 3 | 9 |
| R107265020 | 12500.0 | 3.42 | 6620.0 | 10 | 22.5 |
| R107264020 | 8620.0 | 2.1 | 4480.0 | 8 | 19.5 |
| R107263020 | 5020.0 | 1.17 | 2880.0 | 6 | 14 |
| R107262520 | 4130.0 | 0.79 | 2250.0 | 4.5 | 11.5 |
| R107262020 | 2570.0 | 0.42 | 1180.0 | 3 | 9 |
| R107125000 | 8470.0 | 3.73 | 6900.0 | 40 | 21 |
| R107124000 | 5280.0 | 2.29 | 4000.0 | 32 | 16.8 |

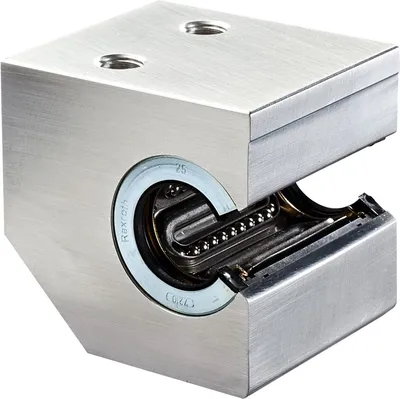

| R107123000 | 2890.0 | 1.27 | 2390.0 | 24 | 12.5 |
| R107122500 | 2270.0 | 0.83 | 1750.0 | 19 | 12.5 |
| R107122000 | 1280.0 | 0.44 | 970.0 | 16 | 10 |
| R107185020 | 12500.0 | 3.39 | 6620.0 | 10 | 22.5 |
| R107184020 | 8620.0 | 2.13 | 4480.0 | 8 | 19.5 |
| R107183020 | 5020.0 | 1.18 | 2880.0 | 6 | 14 |
| R107182520 | 4130.0 | 0.79 | 2250.0 | 4.5 | 11.5 |
| R107182020 | 2570.0 | 0.42 | 1180.0 | 3 | 9 |
| R107165020 | 12500.0 | 3.43 | 6620.0 | 10 | 22.5 |
| R107164020 | 8620.0 | 2.13 | 4480.0 | 8 | 19.5 |
| R107163020 | 5020.0 | 1.18 | 2880.0 | 6 | 14 |
| R107162520 | 4130.0 | 0.79 | 2250.0 | 4.5 | 11.5 |

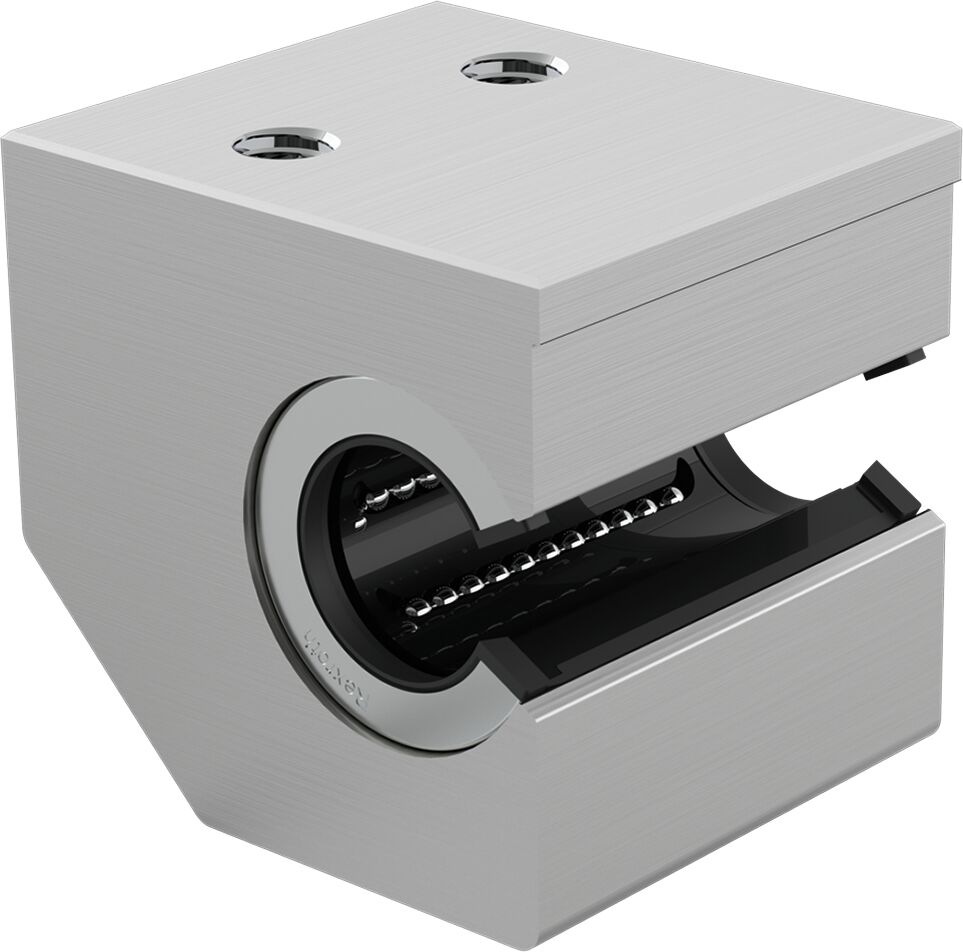

| R107162020 | 2570.0 | 0.42 | 1180.0 | 3 | 9 |
Common to all listed parts
| Type | Linear set |
| Note: dynamic load capacity C | The load capacities apply for the main direction of loading. |
| Permissible ambient temperature (min. ... max.) | -10 °C ... +80 °C |
| Note: static load capacity C0 | The load capacities apply for the main direction of loading. |
