Bosch Rexroth R107122000

LINEAR-SET LSAS-M-20-DD

MPN: R107122000
Category: Linear sets with linear bushings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R107122000?

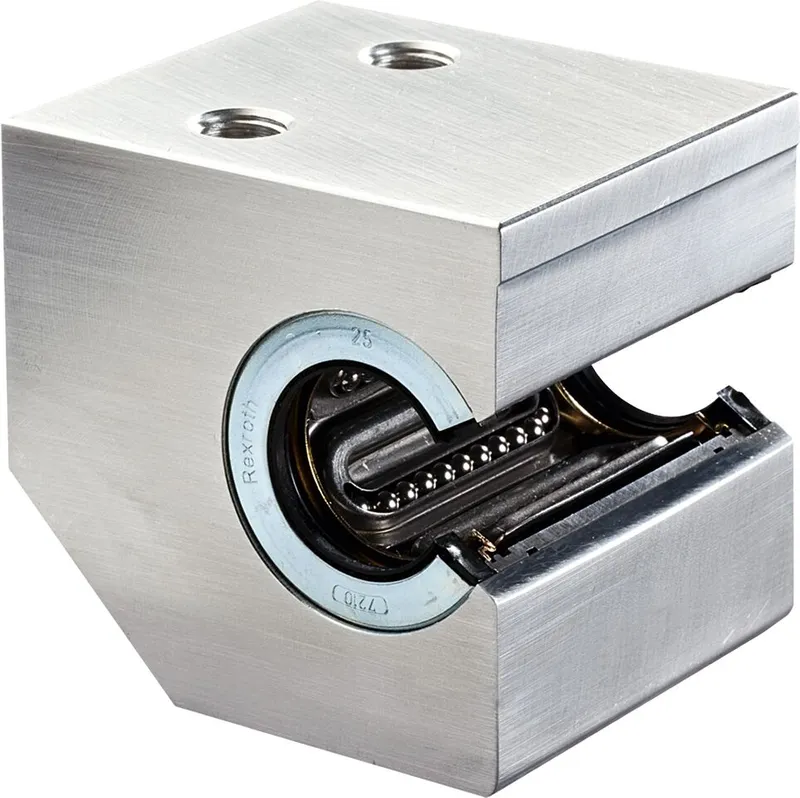

Linear set (aluminum)

Side opening

With standard LB (metal)

Shaft diameter d = 20

With two seals

Version: Standard

Lightweight precision housing (aluminum)

standard linear bushing

Secured by grooved taper pin

External seals

No lube port

Specifications

Shaft diameter d [mm]	20.0
Format of linear bushings	S - With side opening
Series	Standard (metal)
Type	Linear set
Dynamic load capacity C [N]	1280.0
Note: dynamic load capacity C	The load capacities apply for the main direction of loading.
Maximum acceleration rate amax [m/s²]	100.0
Maximum permissible linear speed vmax [m/s]	2.5
Outer diameter D [mm]	32.0
Permissible ambient temperature (min. ... max.)	-10 °C ... +80 °C
Weight [kg]	0.44
Static load capacity C0 [N]	970.0
Note: static load capacity C0	The load capacities apply for the main direction of loading.
Footnote shaft radial clearance h6	Clamped (fastened).
Footnote friction force FR	Frictional drags generated by linear bushings with integrated wiper seals on two sides when not under radial load. The frictional drags depend on speed and lubrication.
Breakaway force [N]	16

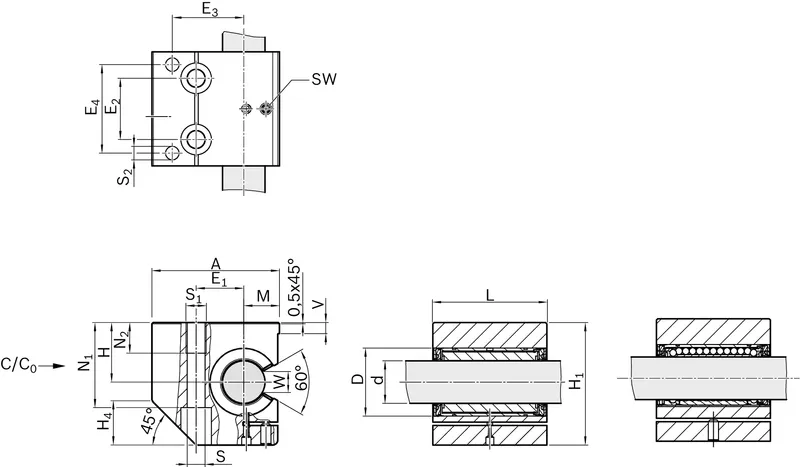

Dimension A (profiled rail systems) [mm]	60
Dimension D [mm]	32
Dimension E1 [mm]	22
Dimension E2 [mm]	30
Dimension E3 (profiled rail systems) [mm]	33
Dimension E4 [mm]	42
Dimension H [mm]	30.0
Dimension H1 (profiled rail systems) [mm]	60
Dimension H4 [mm]	22
Dimension L [mm]	54
Dimension M [mm]	17
Dimension N1 (profiled rail systems) [mm]	42
Dimension N2 (profiled rail systems) [mm]	15
Dimension S [mm]	8.4
Dimension S2 [mm]	6
Dimension SW [mm]	2.5
Dimension V [mm]	5
Dimension W [mm]	10
