Linear sets with linear bushings Parts
Compare Linear sets with linear bushings
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Shaft diameter d [mm] | Dynamic load capacity C [N] | Weight [kg] | Static load capacity C0 [N] | Dimension V [mm] |
|---|---|---|---|---|---|

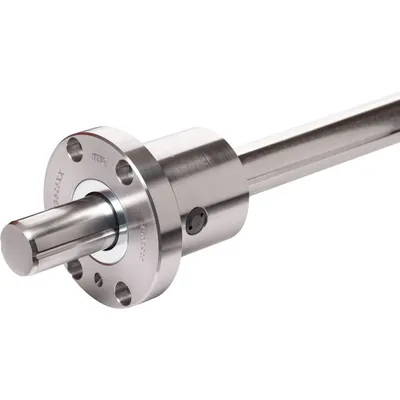

| R072321689 | 16.0 | 780.0 | 0 | 530.0 | 4.5 |
| R072321685 | 16.0 | 780.0 | 0.01 | 530.0 | 4.5 |
| R072321680 | 16.0 | 780.0 | 1.2 | 530.0 | 4.5 |
| R072321688 | 16.0 | 780.0 | 0.1 | 530.0 | 4.5 |
| R072321687 | 16.0 | 780.0 | 3 | 530.0 | 4.5 |
| R072321686 | 16.0 | 780.0 | 0 | 530.0 | 4.5 |
| R072321279 | 12.0 | 640.0 | 0 | 420.0 | 4.5 |
| R072321289 | 12.0 | 640.0 | 0 | 420.0 | 4.5 |
| R072321285 | 12.0 | 640.0 | 1.6 | 420.0 | 4.5 |
| R072321280 | 12.0 | 640.0 | 0.79 | 420.0 | 4.5 |
| R072321288 | 12.0 | 640.0 | 0.1 | 420.0 | 4.5 |
| R072321287 | 12.0 | 640.0 | 0.1 | 420.0 | 4.5 |
| R072321286 | 12.0 | 640.0 | 0 | 420.0 | 4.5 |
| R103465020 | 50.0 | 20300.0 | 5.21 | 13240.0 | 12 |
| R103464020 | 40.0 | 14000.0 | 2.97 | 8960.0 | 10 |
| R103463020 | 30.0 | 8150.0 | 1.65 | 5760.0 | 8 |
| R103462520 | 25.0 | 6700.0 | 1.11 | 4500.0 | 6.5 |
| R103462020 | 20.0 | 4170.0 | 0.56 | 2360.0 | 5 |
| R103461620 | 16.0 | 2430.0 | 0.33 | 1660.0 | 5 |

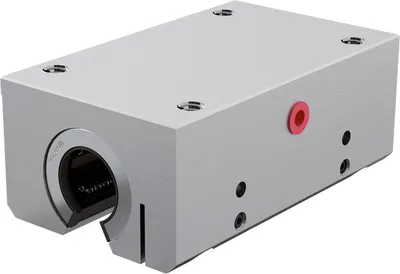

| R103461220 | 12.0 | 1720.0 | 0.2 | 1020.0 | 5 |

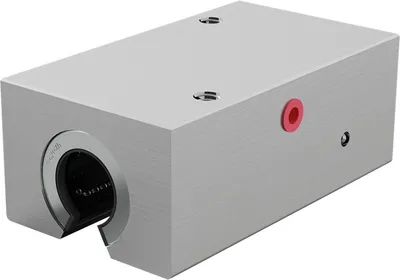

| R108765020 | 50.0 | 20300.0 | 5.47 | 13240.0 | — |
| R108764020 | 40.0 | 14000.0 | 3.2 | 8960.0 | — |
| R108763020 | 30.0 | 8150.0 | 1.66 | 5760.0 | — |
| R108762520 | 25.0 | 6700.0 | 1.1 | 4500.0 | — |
Common to all listed parts
| Type | Linear set |
| Maximum acceleration rate amax [m/s²] | 150.0 |
| Maximum permissible linear speed vmax [m/s] | 3.0 |
| Permissible ambient temperature (min. ... max.) | -10 °C ... +80 °C |
