Bosch Rexroth R065825434

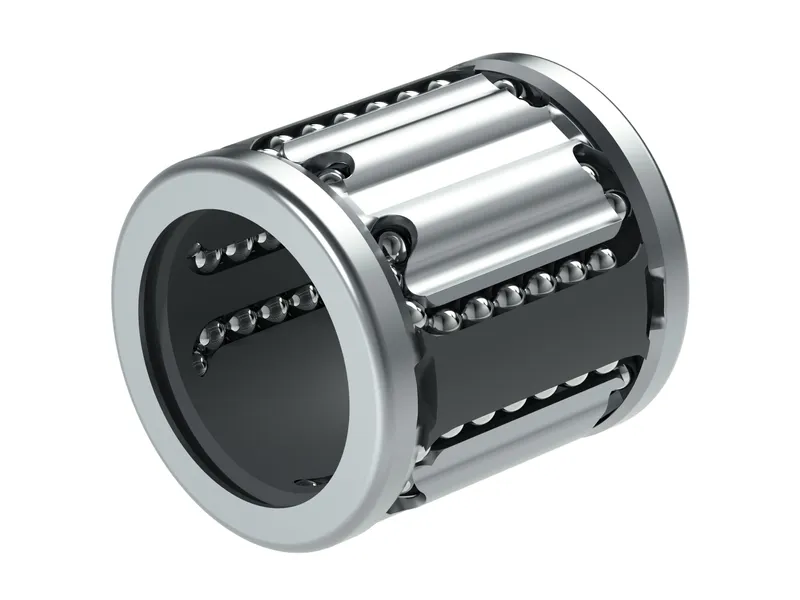

ELINE LINEAR BUSHING KBC-25-DD-RT-NR-G

MPN: R065825434
Category: Linear bushings

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R065825434?

Linear bushing eLINE

Compact

Shaft diameter d = 25

With two seals

Radial clearance: Reduced

Version: Corrosion-resistant

Greased

Low-cost linear bushing for general requirements

Small outer dimensions and highly compact construction

Stainless steel for the medical, chemistry and food industries: Segmental load bearing plates comprising 1.4037 balls made from 1.3541

Reduced radial clearance for applications where minimal-clearance bearings with an H7 bore are desired

Initial lubrication with Dynalub 510

High dynamic load rating and long service life due to hardened segmental load-bearing plates with ball conformity in the running track

Simple mounting: Just press on – no additional retention needed

High travel speed (5 m/s)

Integrated wiper seals, external seals or no wiper seals

Integrated metal retainer about 0.1 mm larger than outer diameter (shaft diameters 12 to 50) for secure fit in housing bore

Many pockets acting as lubricant reservoirs for extended lubrication intervals or lubrication for life

Pockets collect any dirt that may have worked its way in to prevent the linear bushing from jamming.

POM ball retainer

Balls made of rolling bearing steel

Specifications

Shaft diameter d [mm]	25.0
Version	Corrosion-resistant
Format of linear bushings	– Closed
Series	Compact (eLINE)
Type	Linear bushing
Seal	2 integrated wiper seals
Lubrication	Greased
Dynamic load capacity C [N]	2050.0
Maximum dynamic load capacity Cmax [N]	2050.0
Maximum acceleration rate amax [m/s²]	150.0
Maximum permissible linear speed vmax [m/s]	5.0
Radial clearance	reduced radial clearance
Length of linear bushing [mm]	40.0
Outer diameter D [mm]	35.0
Permissible ambient temperature (min. ... max.)	-10 °C ... +80 °C
Weight [kg]	0.07
Static load capacity C0 [N]	1560.0
Footnote maximum dynamic load capacity Cmax	The dynamic load capacities are based on a total travel of 100,000 m. When based on 50,000 m, the C values in the table are to be multiplied by 1.26.
Footnote minimum dynamic load capacity Cmin	The dynamic load capacities are based on a total travel of 100,000 m. When based on 50,000 m, the C values in the table are to be multiplied by 1.26.
Footnote friction force FR	Frictional drags generated by linear bushings with integrated wiper seals on two sides when not under radial load. The frictional drags depend on speed and lubrication.
Breakaway force [N]	4.5
Dimension C [mm]	40
Dimension D [mm]	35
Dimension d [mm]	25
