Bosch Rexroth R066802000
SEGMENTAL LINEAR BUSHING KBSE-20
- MPN
- R066802000
- Category
- Linear bushings
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Bosch Rexroth R066802000?
Segmental linear bushing
Closed
Shaft diameter d = 20
Without seal
Version: Standard
Designed especially for general requirements
Separate wiper seals optional
Hardened segmental load bearing plates
Balls made of rolling bearing steel
Ball retainer and retaining rings made of PA 11
Specifications
Specifications
| Shaft diameter d [mm] | 20.0 |
| Version | Standard |
| Format of linear bushings | – Closed |
| Series | Segment |
| Type | Linear bushing |
| Seal | Without wiper seals |
| Lubrication | Not lubricated |
| Maximum dynamic load capacity Cmax [N] | 1080.0 |
| Maximum acceleration rate amax [m/s²] | 150.0 |
| Maximum permissible linear speed vmax [m/s] | 3.0 |
| Length of linear bushing [mm] | 30.0 |
| Outer diameter D [mm] | 30.0 |
| Permissible ambient temperature (min. ... max.) | -10 °C ... +80 °C |
| Friction coefficient μ | 0.001 ... 0.004 |
| Note: friction coefficient μ | Friction coefficients of unsealed linear bushings when lubricated with oil. The friction coefficient is lowest under heavy load, but can still be above the specified value even under a low load. |
| Weight [kg] | 0.04 |
| Footnote maximum dynamic load capacity Cmax | The dynamic load capacities are based on a total travel of 100,000 m. When based on 50,000 m, the C values in the table are to be multiplied by 1.26. |
| Footnote minimum dynamic load capacity Cmin | The dynamic load capacities are based on a total travel of 100,000 m. When based on 50,000 m, the C values in the table are to be multiplied by 1.26. |
| Footnote friction force FR | Frictional drags generated by linear bushings with seals on both ends when not under radial load. This depends on speed and lubrication. |
| Breakaway force [N] | 5 |

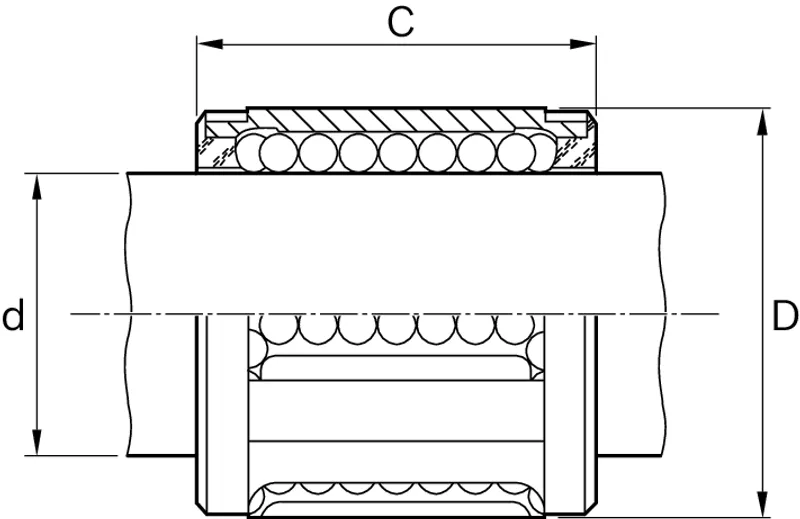

| Dimension C js14 [mm] | 30 |
| Dimension D [mm] | 30 |
R066802000: frequently asked questions
When can R066802000 be shipped?
R066802000 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up R066802000 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for R066802000 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R066802000, subject to availability and destination.
