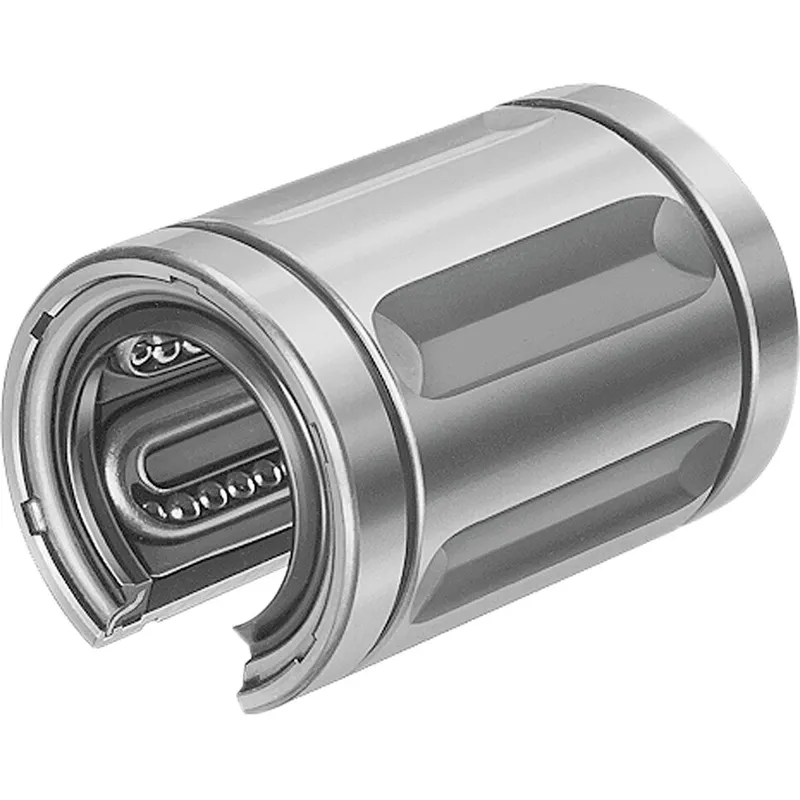

Bosch Rexroth R063201600
STANDARD LINEAR BUSHING KBM-O-16-DD
- MPN
- R063201600
- Category
- Linear bushings
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Bosch Rexroth R063201600?
"standard linear bushing
Standard (metal)
Open
Shaft diameter d = 16
With two seals
Version: Standard"
Rugged all-metal design with steel ball retainer for harsh environments and heavy contamination
Many pockets acting as lubricant reservoirs for extended lubrication intervals or lubrication for life
Seal-free and with steel ball retainers for temperatures well above 80°C or under vacuum
With locating hole for axial and radial securing (no locating hole for shaft diameters 12 and 16)
Optional integrated wiper seals
For use in woodworking, foundries, cement plants
Pockets collect any dirt that may have worked its way in to prevent the linear bushing from jamming.
No wiper seals, come with integrated steel retaining rings; higher temperatures allowed with shaft diameters 12 and higher
Hardened and ground outer sleeve
Steel ball retainer
Balls made of rolling bearing steel
Specifications
Specifications
| Shaft diameter d [mm] | 16.0 |
| Version | Standard |
| Format of linear bushings | O - Open |
| Series | Standard (metal) |
| Type | Linear bushing |
| Seal | 2 integrated wiper seals |
| Lubrication | Not lubricated |
| Dynamic load capacity C [N] | 600.0 |
| Note: dynamic load capacity C | The load capacities C and C<sub>0</sub> apply for the main direction of loading. |
| Maximum acceleration rate amax [m/s²] | 100.0 |
| Maximum permissible linear speed vmax [m/s] | 2.5 |
| Length of linear bushing [mm] | 36.0 |
| Outer diameter D [mm] | 26.0 |
| Permissible ambient temperature (min. ... max.) | -10 °C ... +80 °C |
| Note: permissible ambient temperature (min. ... max.) | Only unsealed linear bushings with steel ball retainers may be used at higher temperatures. Make allowance for reductions in load capacity. |
| Friction coefficient μ | 0.001 ... 0.004 |
| Note: friction coefficient μ | Friction coefficients of unsealed linear bushings when lubricated with oil. The friction coefficient is lowest under heavy load, but can still be above the specified value even under a low load. |
| Weight [kg] | 0.05 |
| Footnote diameter d | Without locating hole for radial and axial retainer. |
| Static load capacity C0 [N] | 450.0 |
| Note: static load capacity C0 | The load capacities C and C<sub>0</sub> apply for the main direction of loading. |
| Footnote breakaway force | One wiper seal: Multiply value with factor 0.5 |
| Footnote friction force FR | One wiper seal: Multiply value with factor 0.5 |
| Breakaway force [N] | 12 |

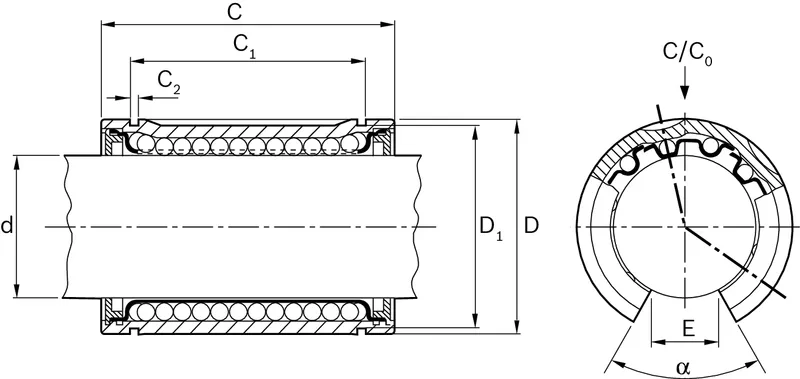

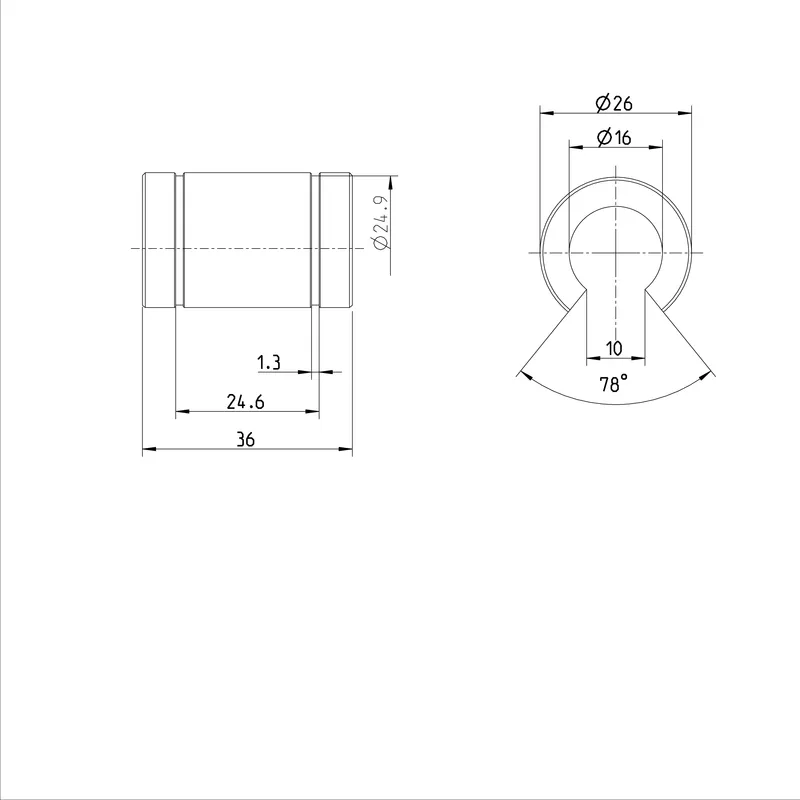

| Dimension C h12 [mm] | 36 |
| Dimension C1 H13 [mm] | 24.6 |
| Dimension C2 [mm] | 1.3 |
| Dimension D [mm] | 26 |
| Dimension D1 [mm] | 24.9 |
| Dimension E [mm] | 10 |
| Footnote Dimension E | Lower limit relative to Ø d. |
| Angle α [°] | 78 |
