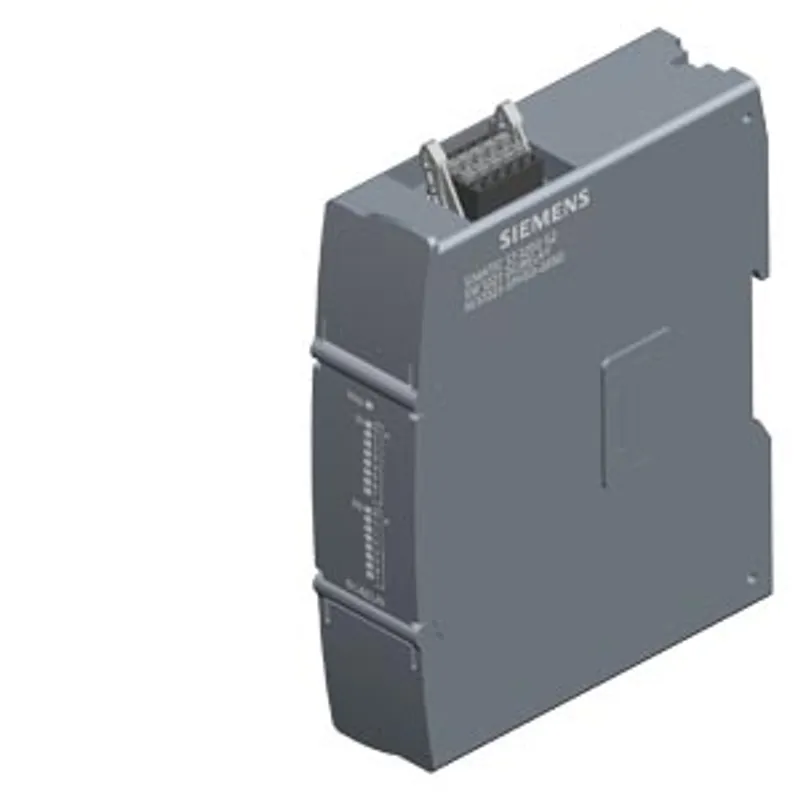

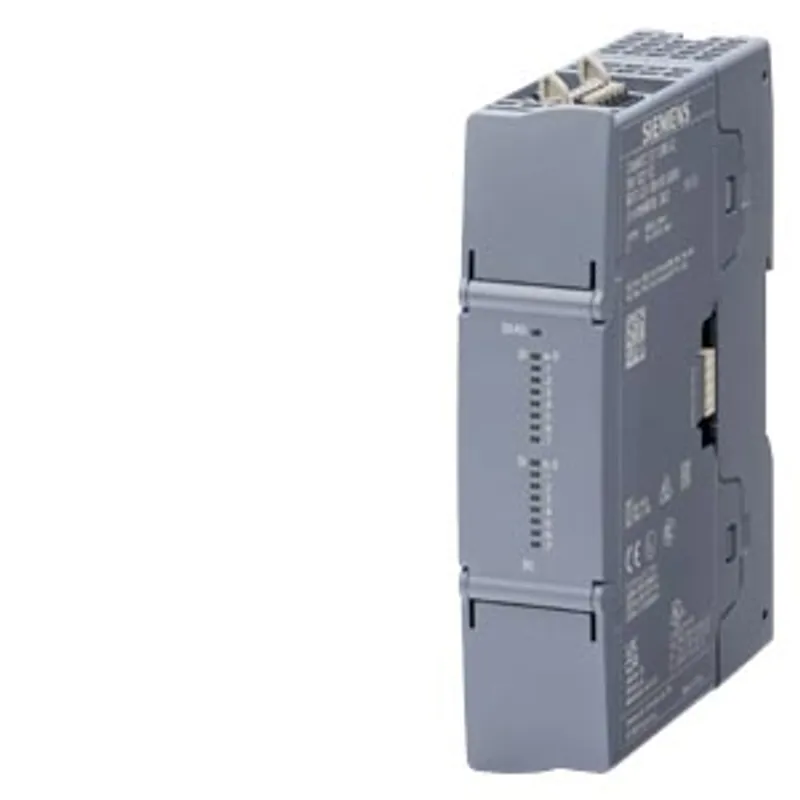

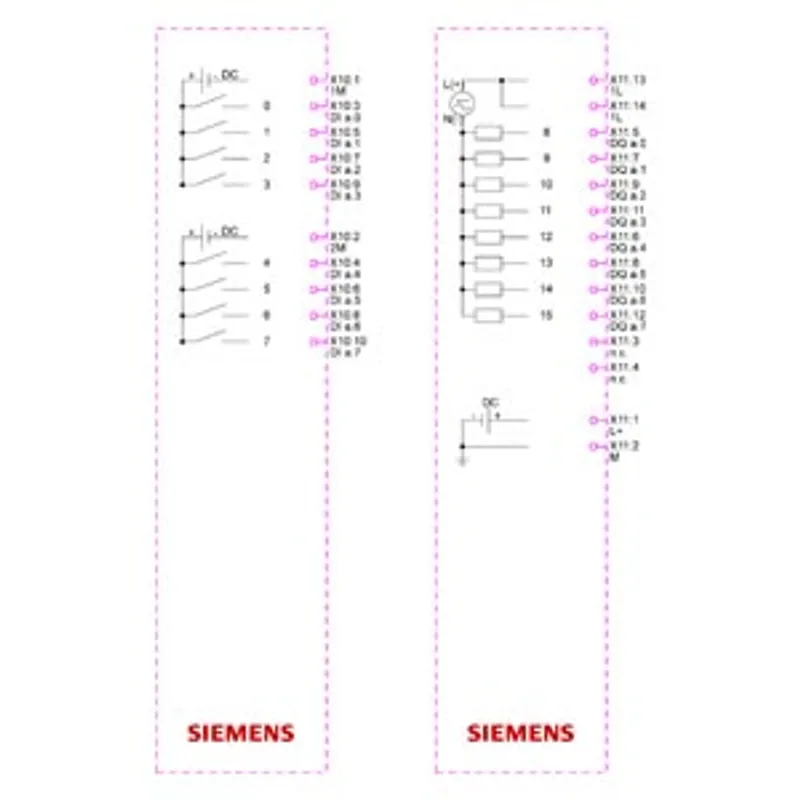

What is the Siemens 6ES7223-5PH50-0XB0?

SIMATIC S7-1200 G2: SM 1223 digital I/O, 8 DI/8 RLY; inputs: 8x DI 24 V DC sink/source; outputs: 8x DO relay 2 A

Specifications

General information

Product type designationSM 1223, DI 8x 24 V DC, DQ 8x relay

Supply voltage

Rated value (DC)24 V
permissible range, lower limit (DC)20.4 V
permissible range, upper limit (DC)28.8 V

Input current

from backplane bus 5 V DC, max.105 mA
Digital inputs — from load voltage L+ (without load), max.4.1 mA; per channel
Digital outputs — from load voltage L+, max.9 mA; per relay coil

Power loss

Power loss, typ.4.8 W

Digital inputs

Number of digital inputs8
Number of digital inputs — in groups of4
Input characteristic curve in accordance with IEC 61131, type 1Yes
Number of simultaneously controllable inputs — all mounting positions — up to 40 °C, max.8
Number of simultaneously controllable inputs — horizontal installation — up to 40 °C, max.8
Number of simultaneously controllable inputs — horizontal installation — up to 50 °C, max.8
Number of simultaneously controllable inputs — vertical installation — up to 40 °C, max.8
Input voltage — Rated value (DC)24 V
Input voltage — for signal "0"5 V DC or 0.5 mA
Input voltage — for signal "1"15 V DC at 2.5 mA
Input current — for signal "0", max. (permissible quiescent current)1 mA
Input current — for signal "1", min.2.5 mA
Input current — for signal "1", typ.4 mA
Input delay (for rated value of input voltage) — for standard inputs — parameterizableYes; 0.2 ms, 0.4 ms, 0.8 ms, 1.6 ms, 3.2 ms, 6.4 ms and 12.8 ms, selectable in groups of four
Input delay (for rated value of input voltage) — for interrupt inputs — ParameterizableNo
Cable length — shielded, max.500 m
Cable length — unshielded, max.300 m

Digital outputs

Number of digital outputs8
Number of digital outputs — in groups of8
Short-circuit protectionNo; to be provided externally
Switching capacity of the outputs — with resistive load, max.2 A
Switching capacity of the outputs — on lamp load, max.30 W with DC, 200 W with AC
Output voltage — Rated value (DC)5 V DC to 30 V DC
Output voltage — Rated value (AC)5 V AC to 250 V AC
Output current — for signal "1" rated value2 A
Output delay with resistive load — "0" to "1", max.10 ms
Output delay with resistive load — "1" to "0", max.10 ms
Total current of the outputs (per group) — horizontal installation — up to 50 °C, max.16 A; Current per mass
Relay outputs — Number of relay outputs8
Relay outputs — Rated supply voltage of relay coil L+ (DC)24 V
Relay outputs — Number of operating cycles, max.mechanically 10 million, at rated load voltage 100 000
Relay outputs — Switching capacity of contacts — with inductive load, max.2 A
Relay outputs — Switching capacity of contacts — on lamp load, max.30 W with DC, 200 W with AC
Relay outputs — Switching capacity of contacts — with resistive load, max.2 A
Cable length — shielded, max.500 m
Cable length — unshielded, max.150 m

Interrupts/diagnostics/status information

Diagnostics functionYes
Alarms — Diagnostic alarmYes
Diagnoses — Monitoring the supply voltageYes
Diagnostics indication LED — for status of the inputsYes
Diagnostics indication LED — for status of the outputsYes
Diagnostics indication LED — for maintenanceYes

Potential separation

Potential separation digital inputs — between the channels, in groups of4
Potential separation digital inputs — between the channels and backplane busYes; 707 V DC (type test)
Potential separation digital outputs — between the channelsRelays
Potential separation digital outputs — between the channels, in groups of8
Potential separation digital outputs — between the channels and backplane busYes; 4 200 V DC (type test)

Isolation

Isolation tested with1500 V AC (type test)

Degree and class of protection

IP degree of protectionIP20

Standards, approvals, certificates

Siemens Eco Profile (SEP)Siemens EcoTech
CE markYes
CSA approvalNo
UL approvalYes
cULusYes
FM approvalNo
RCM (formerly C-TICK)Yes
KC approvalYes
Marine approvalNo
Ecological footprint — environmental product declarationYes; type 2 acc. to ISO 14021
Ecological footprint — Global warming potential — global warming potential, (total) [CO2 eq]40.3 kg
Ecological footprint — Global warming potential — global warming potential, (during production) [CO2 eq]7.79 kg
Ecological footprint — Global warming potential — global warming potential, (during operation) [CO2 eq]32.5 kg
Ecological footprint — Global warming potential — global warming potential, (after end of life cycle) [CO2 eq]-0.089 kg

Ambient conditions

Free fall — Fall height, max.0.3 m; five times, in product package
Ambient temperature during operation — min.-20 °C; No condensation
Ambient temperature during operation — max.40 °C; at max. voltages and max. specifications
Ambient temperature during operation — horizontal installation, min.-20 °C; No condensation
Ambient temperature during operation — horizontal installation, max.60 °C; at rated voltages, 50 % of max. specification and alternate IO active
Ambient temperature during operation — vertical installation, min.-20 °C; No condensation
Ambient temperature during operation — vertical installation, max.50 °C; at rated voltages, 50 % of max. specification and alternate IO active
Ambient temperature during operation — permissible temperature change5°C to 55°C, 3°C / minute
Ambient temperature during storage/transportation — min.-40 °C
Ambient temperature during storage/transportation — max.70 °C
Air pressure acc. to IEC 60068-2-13 — Operation, min.540 hPa
Air pressure acc. to IEC 60068-2-13 — Operation, max.1 140 hPa
Air pressure acc. to IEC 60068-2-13 — Storage/transport, min.540 hPa
Air pressure acc. to IEC 60068-2-13 — Storage/transport, max.1 140 hPa
Altitude during operation relating to sea level — Installation altitude, min.-1 000 m
Altitude during operation relating to sea level — Installation altitude, max.4 000 m; Restrictions for installation altitudes > 2 000 m, see manual
Relative humidity — Operation at 25 ℃ without condensation, max.95 %
Vibrations — Vibration resistance during operation acc. to IEC 60068-2-63.5 mm from 5 - 8.4 Hz, 1g from 8.4 - 150 Hz
Vibrations — Operation, tested according to IEC 60068-2-6Yes
Shock testing — tested according to IEC 60068-2-27Yes; IEC 68, Part 2-27 half-sine: strength of the shock 15 g (peak value), duration 11 ms
Pollutant concentrations — SO2 at RH < 60% without condensationS02: < 0.5 ppm; H2S: < 0.1 ppm; RH < 60 % condensation-free

Connection method

required front connectorNo

Mechanics/material

Enclosure material (front) — plasticYes

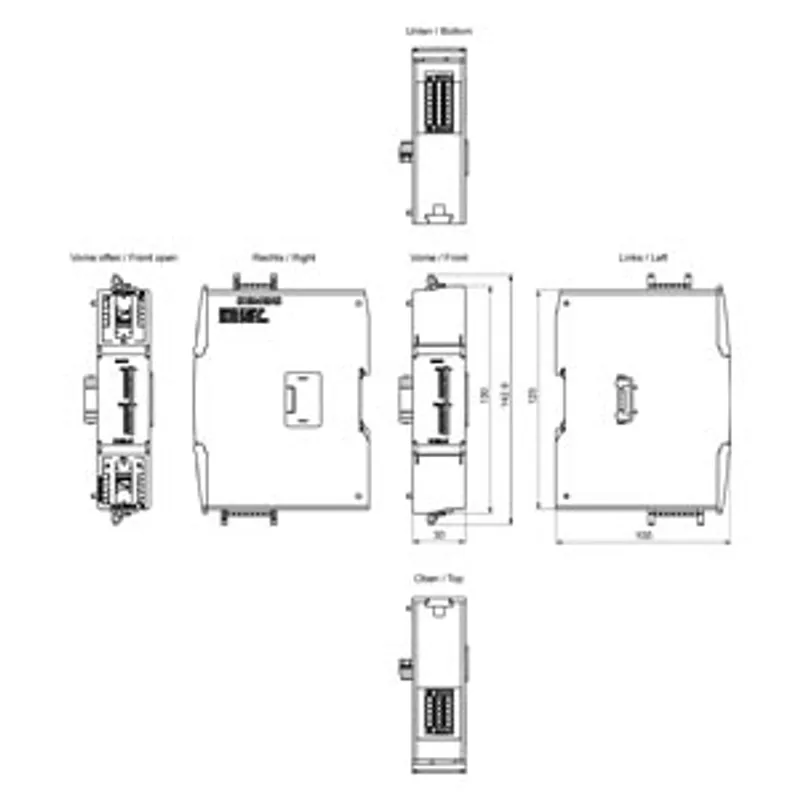

Dimensions

Width30 mm
Height125 mm
Depth100 mm

Weights

Weight, approx.194 g
