Siemens 6ES7193-6BP00-0BU0

BaseUnit

MPN: 6ES7193-6BP00-0BU0
Category: BaseUnits

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Siemens parts? We buy surplus →

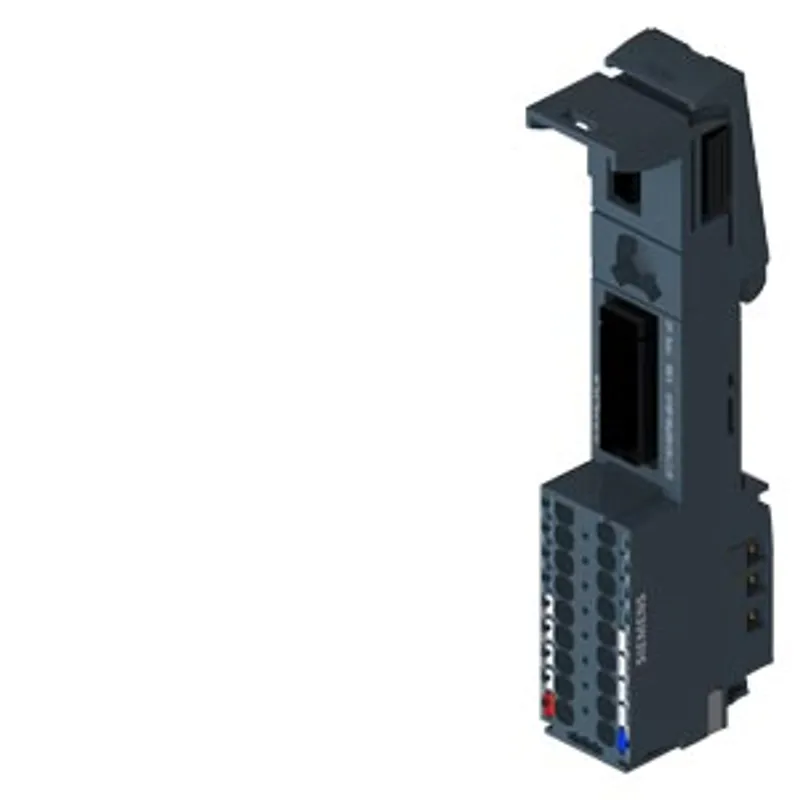

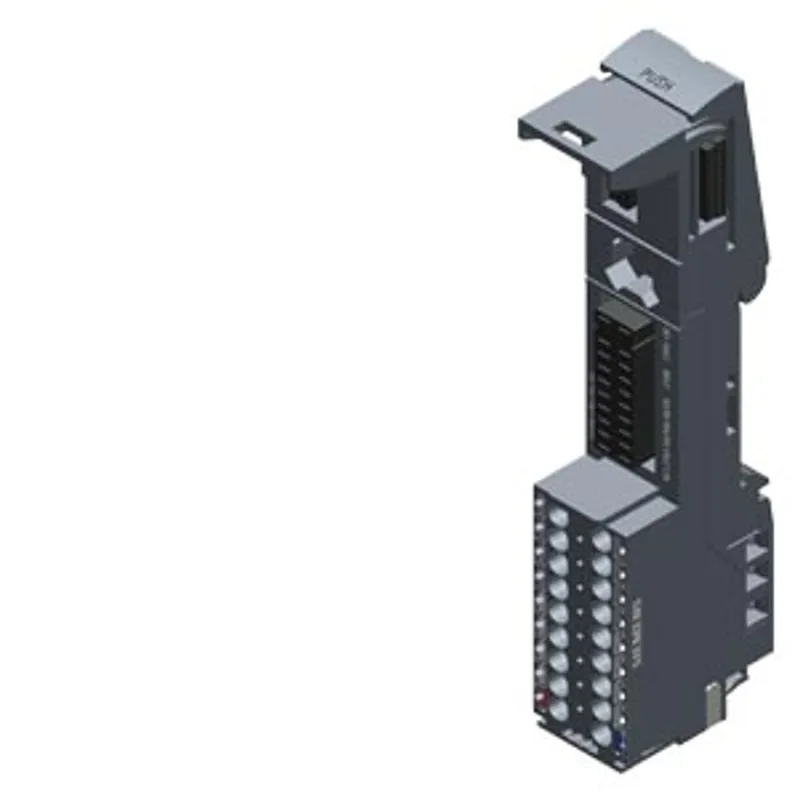

What is the Siemens 6ES7193-6BP00-0BU0?

SIMATIC ET 200SP, BaseUnit BU20-P16+A0+2B, BU-TYPE U0, Packaging Unit: 1 Pieces, Push-in terminals, w/o AUX-terminals, bridged to left BU, WxH: 20mm x 117mm

Specifications

General information

Product type designation	BU type U0
HW functional status	from FS11

Supply voltage

Rated value (DC)	See manual
Rated value (DC) — For P1 and P2 bus	120 V
Rated value (DC) — For AUX bus	120 V; Equal potential group to P1/P2 bus or PE
Rated value (DC) — for process terminals	120 V
Rated value (AC)	See manual
Rated value (AC) — For P1 and P2 bus	277 V
Rated value (AC) — For AUX bus	277 V; Equal potential group to P1/P2 bus or PE
Rated value (AC) — for process terminals	277 V; 480 V (L1 - L2 - L3); 277 V (L, N)
Mains filter — Integrated	No

Current carrying capacity

up to 60 °C, max.	10 A
For P1 and P2 bus, max.	10 A
For AUX bus, max.	10 A
For process terminals, max.	10 A; Point of contact, derating depends on the module

Hardware configuration

Automatic encoding	Yes
Formation of potential groups — New potential group	No
Formation of potential groups — Potential group continued from the left	Yes
Slots — Number of slots	1

Potential separation

between backplane bus and supply voltage	Yes
between process terminals and supply voltage	Yes; Not applicable for process terminals 15 and 16
between power bus and supply voltage	No

Isolation

Isolation tested with

3 100 V DC

Standards, approvals, certificates

Ecological footprint — environmental product declaration	Yes
Ecological footprint — Global warming potential — global warming potential, (total) [CO2 eq]	0.873 kg
Ecological footprint — Global warming potential — global warming potential, (during production) [CO2 eq]	0.866 kg
Ecological footprint — Global warming potential — global warming potential, (during operation) [CO2 eq]	0 kg
Ecological footprint — Global warming potential — global warming potential, (after end of life cycle) [CO2 eq]	-0.0011 kg

Ambient conditions

Ambient temperature during operation — horizontal installation, min.	-30 °C
Ambient temperature during operation — horizontal installation, max.	60 °C
Ambient temperature during operation — vertical installation, min.	-30 °C
Ambient temperature during operation — vertical installation, max.	50 °C
Altitude during operation relating to sea level — Installation altitude above sea level, max.	3 000 m
Absolute humidity — dew point, min.	-60 °C; suitable for dry room applications

Connection method

Terminals — Terminal type	Push-in terminal
Terminals — system-integrated shield connection	Yes; Optional
Terminals — Conductor cross-section, min.	0.14 mm²; 0.2 mm² without wire end ferrule
Terminals — Conductor cross-section, max.	2.5 mm²; 1.5 mm² with wire end ferrule
Terminals — Number of process terminals to I/O module	16
Terminals — Number of terminals to AUX bus	0
Terminals — Number of add-on terminals	0
Terminals — Number of terminals with connection to P1 and P2 bus	2

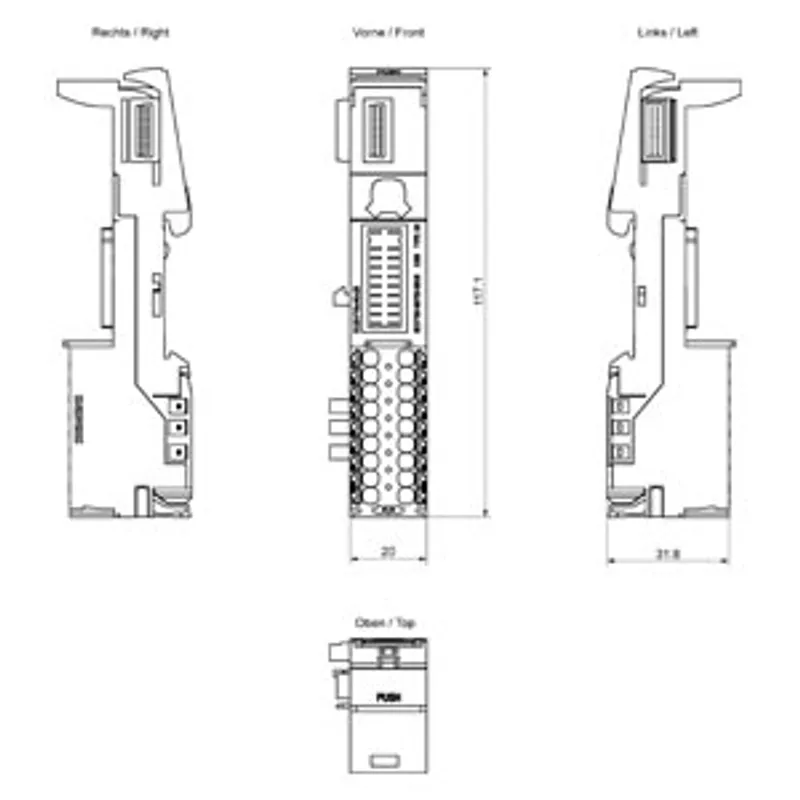

Dimensions

Width	20 mm
Height	117 mm
Depth	35 mm

Weights

Weight, approx.

50 g
