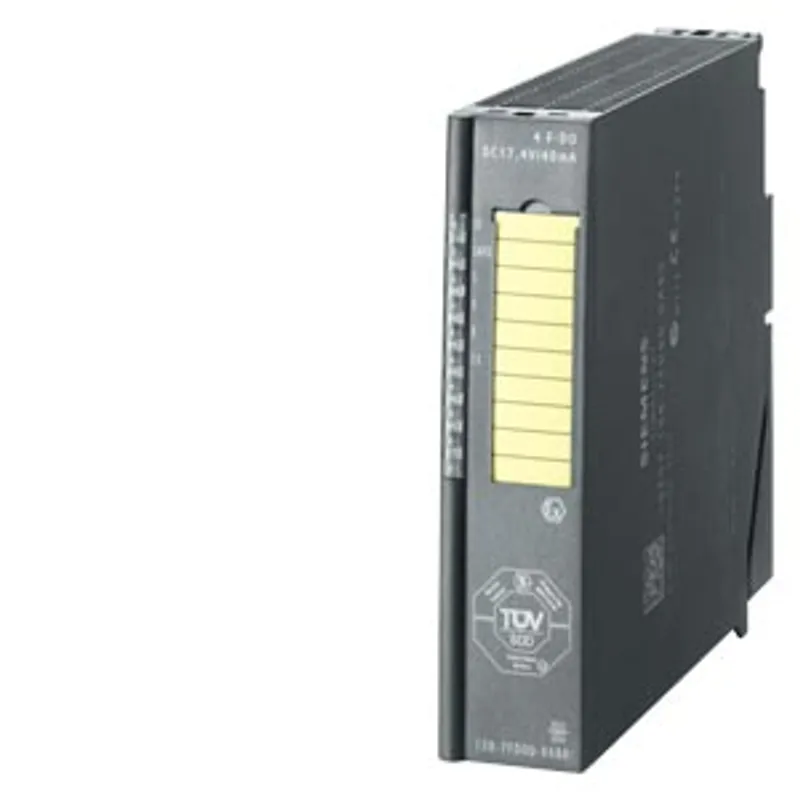

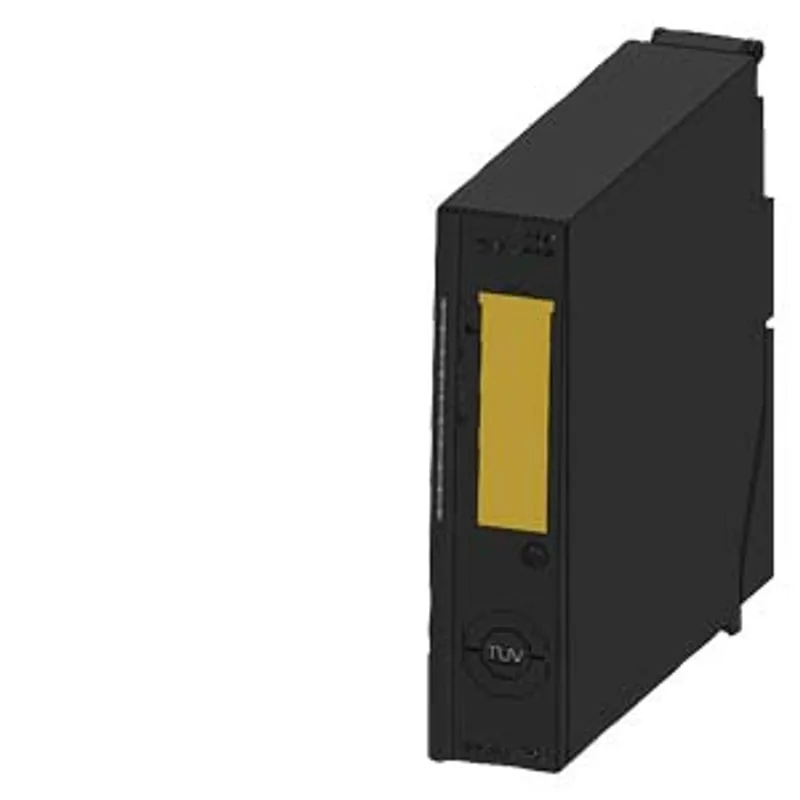

Siemens 6ES7138-7FD00-0AB0
SIMATIC, fail-safe electronic module for ET200iSP, 4 F-DO 17.4 V/40 mA Ex I
- MPN
- 6ES7138-7FD00-0AB0
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 6ES7138-7FD00-0AB0?
SIMATIC, fail-safe electronic module for ET200iSP, 4 F-DO 17.4 V/40 mA Ex I, up to category 4 (EN954-1)/ SIL3 (IEC61508)/PLE (ISO13849), Ex ib (ia Ga) IIC T4 Gb, Ex ib [ia IIIC Da] IIC T4 Gb, Ex ib [ia] I Mb
Specifications
General information
| Product type designation | 4F-DQ Ex(i) 17.4 V DC/40 mA |
Installation type/mounting
| Rack mounting | No |
| Front mounting | Yes |
| Rail mounting | Yes |
| Wall mounting/direct mounting | Yes |
Supply voltage
| Type of supply voltage | DC |
| permissible range, lower limit (DC) | 19.2 V |
| permissible range, upper limit (DC) | 30 V |
Input current
| Current consumption, typ. | 340 mA |
| from load voltage L+ (without load), max. | 510 mA; int. Powerbus |
Power loss
| Power loss, max. | 5.3 W |
Hardware configuration
| Fieldbus connection via separate transceiver | Yes |
Digital outputs
| Type of digital output | Transistor |
| Number of digital outputs | 4 |
| Short-circuit protection | Yes |
| Short-circuit protection — Response threshold, typ. | Depending on the "short-circuit level" parameter |
| Controlling a digital input | No |
| No-load voltage Uao (DC) | 17.4 V |
| Internal resistor Ri | 167 Ω |
| Load resistance range — lower limit | 270 Ω |
| Load resistance range — upper limit | 18 kΩ |
| Trend key points E — Voltage Ue (DC) | 10.7 V |
| Trend key points E — Current Ie | 40 mA |
| Output voltage — Type of output voltage | DC |
| Output voltage — for signal "1", max. | 17.4 V |
| Output current — for signal "0" residual current, max. | 10 µA |
| Parallel switching of two outputs — for uprating | Yes |
| Parallel switching of two outputs — for redundant control of a load | No |
| Switching frequency — with resistive load, max. | 30 Hz |
| Switching frequency — with inductive load, max. | 2 Hz |
| Cable length — shielded, max. | 500 m |
| Cable length — unshielded, max. | 500 m |
Interfaces
| Number of PROFINET interfaces | 0 |
| Number of RS 485 interfaces | 0 |
Protocols
| Supports protocol for PROFINET IO | No |
| PROFIsafe | Yes |
| PROFIBUS | No |
Interrupts/diagnostics/status information
| Substitute values connectable | Yes |
| Alarms — Diagnostic alarm | Yes; Parameterizable |
| Diagnoses — Diagnostic information readable | Yes |
| Diagnoses — Wire break | Yes |
| Diagnoses — Short-circuit | Yes |
| Diagnostics indication LED — Group error SF (red) | Yes |
| Diagnostics indication LED — Status indicator digital output (green) | Yes |
Potential separation
| Potential separation digital outputs — between the channels | No |
| Potential separation digital outputs — between the channels and backplane bus | Yes |
| Potential separation digital outputs — Between the channels and load voltage L+ | Yes |
Permissible potential difference
| between different circuits | 60 V DC/30 V AC |
Isolation
| Isolation tested with | 370V for 1 min |
Degree and class of protection
| IP degree of protection | IP20 |
Standards, approvals, certificates
| CE mark | Yes |
| Suitable for safety functions | Yes |
| reference designation according to IEC 81346-2 (2009) | K |
| Highest safety class achievable in safety mode — acc. to EN 954 | Cat. 4 |
| Highest safety class achievable in safety mode — Performance level according to ISO 13849-1 | PLe |
| Highest safety class achievable in safety mode — SIL acc. to IEC 61508 | SIL 3 |
| Use in hazardous areas — Explosion protection category for gas | ATEX gas explosion protection, Zone 1 |
| Use in hazardous areas — associated equipment (Ex ia) | Yes |
| Use in hazardous areas — associated equipment (Ex ib) | Yes |
Connection method
| Design of electrical connection | Screw/spring-type terminal |

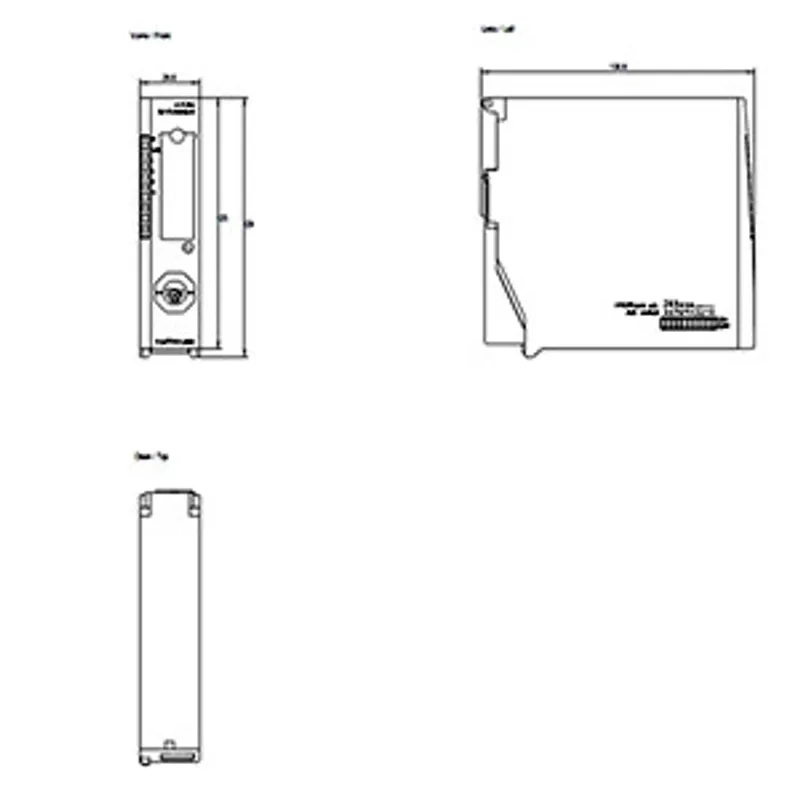

Dimensions
| Width | 30 mm |
| Height | 129 mm |
| Depth | 136.5 mm |
Weights
| Weight, approx. | 285 g |
Downloads & documentation
Official documents from Siemens, downloaded directly from the manufacturer.
Data sheets & manuals
6ES7138-7FD00-0AB0: frequently asked questions
When can 6ES7138-7FD00-0AB0 be shipped?
6ES7138-7FD00-0AB0 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 6ES7138-7FD00-0AB0 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 6ES7138-7FD00-0AB0 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 6ES7138-7FD00-0AB0, subject to availability and destination.
