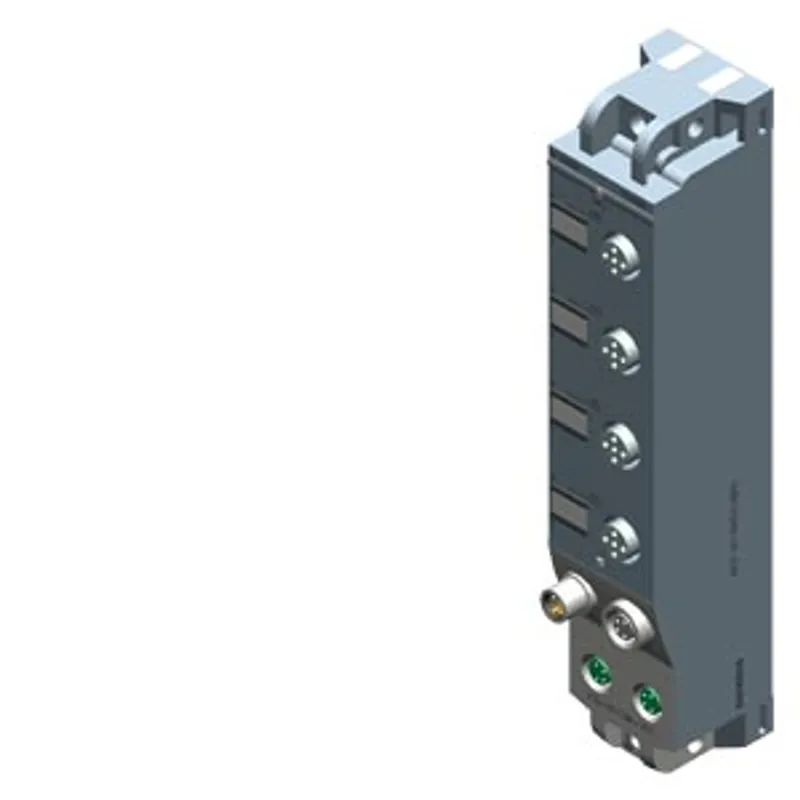

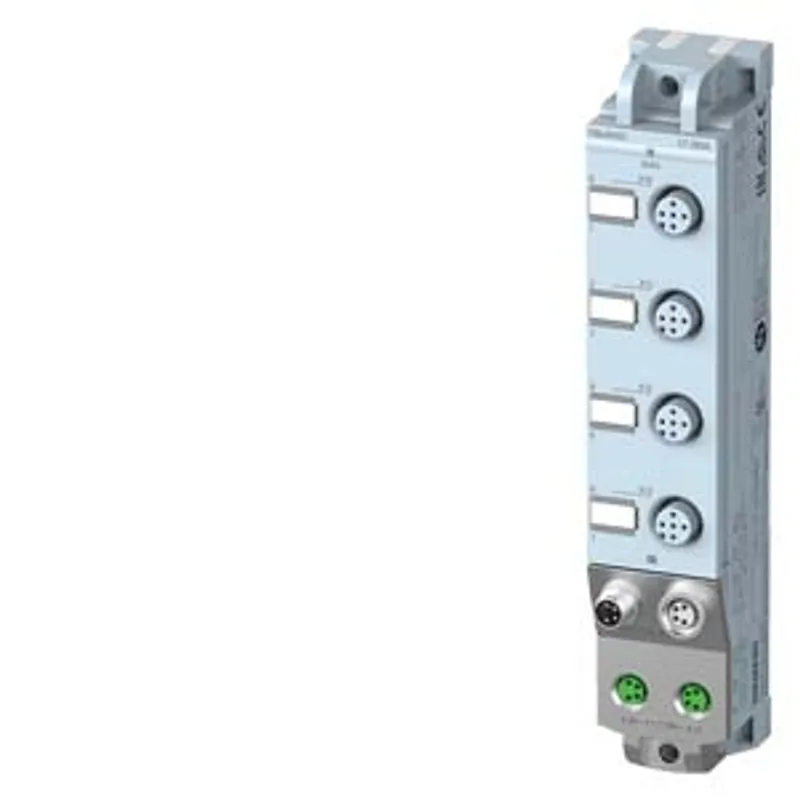

SIMATIC ET 200AL, DI 8x 24 V DC, 4x M12, Degree of protection IP67

MPN: 6ES7141-5AF00-0BA0
Category: Digital I/O modules

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Siemens parts? We buy surplus →

What is the Siemens 6ES7141-5AF00-0BA0?

SIMATIC ET 200AL, DI 8x 24 V DC, 4x M12, Degree of protection IP67

Specifications

General information

Product type designation	DI 8x24VDC
HW functional status	FS06
Firmware version	V2.0.x
Product function — I&M data	Yes; I&M0 to I&M3
Engineering with — STEP 7 TIA Portal configurable/integrated from version	STEP 7 V13 SP1 or higher
Engineering with — STEP 7 configurable/integrated from version	V5.5 SP4 Hotfix 7 or higher
Engineering with — PROFIBUS from GSD version/GSD revision	GSD as of Revision 5
Engineering with — PROFINET from GSD version/GSD revision	GSDML V2.3.1

Supply voltage

power supply according to NEC Class 2 required	No
Load voltage 1L+ — Rated value (DC)	24 V
Load voltage 1L+ — permissible range, lower limit (DC)	20.4 V
Load voltage 1L+ — permissible range, upper limit (DC)	28.8 V
Load voltage 1L+ — Reverse polarity protection	Yes; Against destruction; encoder power supply outputs applied with reversed polarity

Input current

Current consumption (rated value)	25 mA; without load
from load voltage 1L+ (unswitched voltage)	4 A; Maximum value
from load voltage 2L+, max.	4 A; Maximum value

Encoder supply

Number of outputs	4
24 V encoder supply — Short-circuit protection	Yes; per module, electronic
24 V encoder supply — Output current, max.	0.7 A; Total current of all encoders

Power loss

Power loss, typ.

1.9 W

Digital inputs

Number of digital inputs	8
Sourcing/sinking input	P-reading
Input characteristic curve in accordance with IEC 61131, type 3	Yes
Number of simultaneously controllable inputs — all mounting positions — up to 55 °C, max.	8
Input voltage — Rated value (DC)	24 V
Input voltage — for signal "0"	-30 to +5 V
Input voltage — for signal "1"	+11 to +30V
Input current — for signal "1", typ.	3.2 mA
Input delay (for rated value of input voltage) — for standard inputs — at "0" to "1", min.	1.2 ms
Input delay (for rated value of input voltage) — for standard inputs — at "0" to "1", max.	4.8 ms
Input delay (for rated value of input voltage) — for standard inputs — at "1" to "0", min.	1.2 ms
Input delay (for rated value of input voltage) — for standard inputs — at "1" to "0", max.	4.8 ms
Cable length — unshielded, max.	30 m

Encoder

Connectable encoders — 2-wire sensor	Yes
Connectable encoders — 2-wire sensor — permissible quiescent current (2-wire sensor), max.	1.5 mA

Interrupts/diagnostics/status information

Alarms — Diagnostic alarm	Yes; Parameterizable
Diagnoses — short-circuit	Yes; Sensor supply to M; module by module
Diagnostics indication LED — Channel status display	Yes; green LED
Diagnostics indication LED — for module diagnostics	Yes; green/red LED

Potential separation

between the load voltages	Yes
Potential separation channels — between the channels	No
Potential separation channels — between the channels and backplane bus	Yes
Potential separation channels — between the channels and the power supply of the electronics	No

Isolation

Isolation tested with

707 V DC (type test)

Degree and class of protection

IP degree of protection

IP65/67

Standards, approvals, certificates

Suitable for safety-related tripping of standard modules	Yes; from FS01
Highest safety class achievable for safety-related tripping of standard modules — Performance level according to ISO 13849-1	PL d
Highest safety class achievable for safety-related tripping of standard modules — Category according to ISO 13849-1	Cat. 3
Highest safety class achievable for safety-related tripping of standard modules — SIL acc. to IEC 62061	SIL 2
Highest safety class achievable for safety-related tripping of standard modules — remark on safety-oriented shutdown	https://support.industry.siemens.com/cs/de/en/view/39198632

Security

signed firmware update	Yes
data integrity	Yes

Ambient conditions

Ambient temperature during operation — min.	-30 °C
Ambient temperature during operation — max.	55 °C
Altitude during operation relating to sea level — Ambient air temperature-barometric pressure-altitude	Up to max. 5 000 m, at installation height > 2 000 m additional restrictions

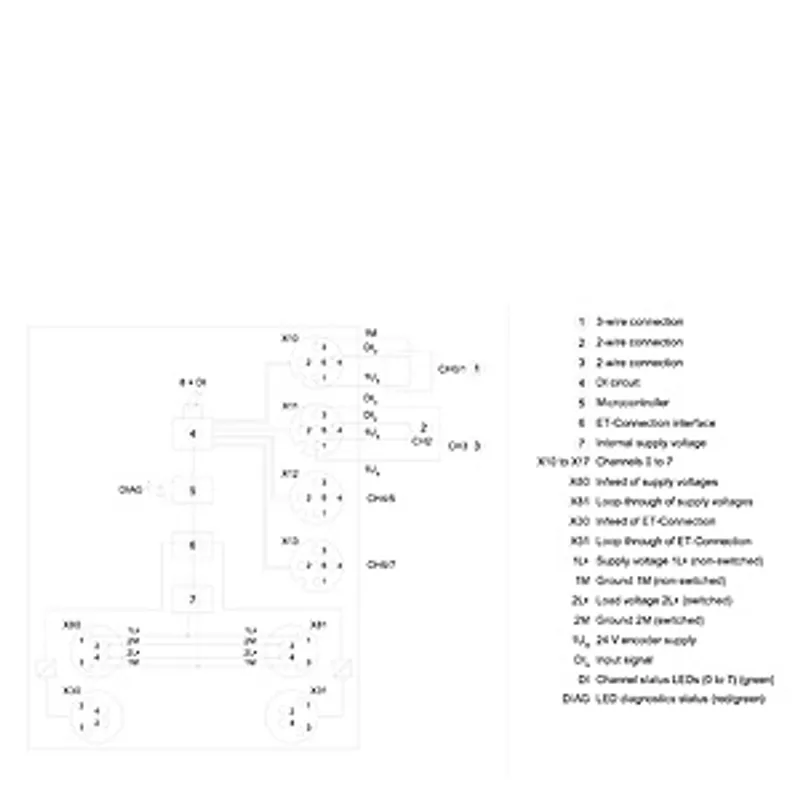

Connection method

Design of electrical connection for the inputs and outputs	M12, 5-pole
Design of electrical connection for supply voltage	M8, 4-pole
ET-Connection — ET-Connection	M8, 4-pin, shielded

Dimensions

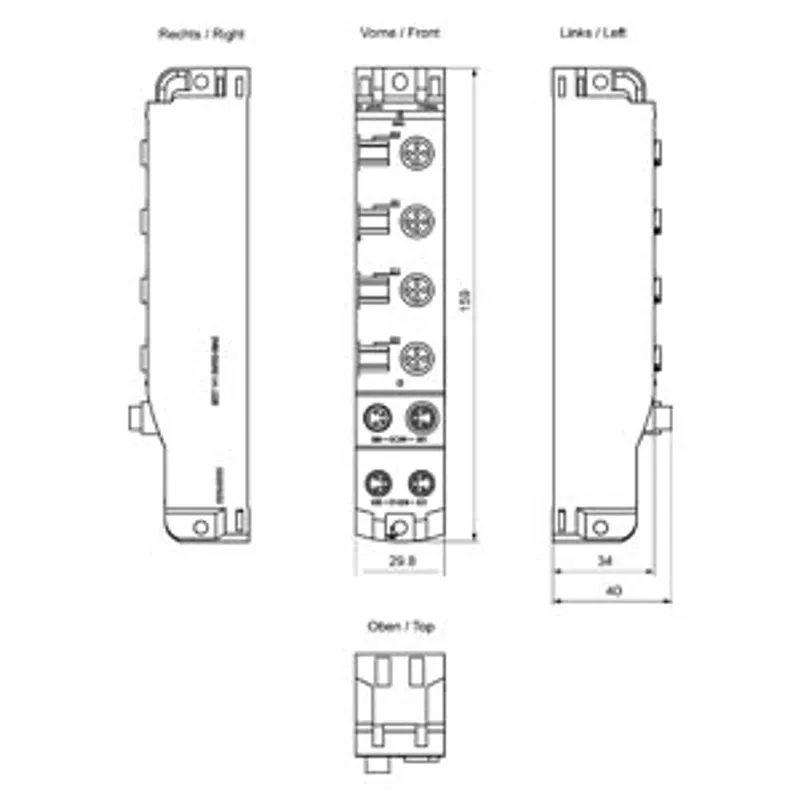

Width	30 mm
Height	159 mm
Depth	40 mm

Weights

Weight, approx.

145 g
