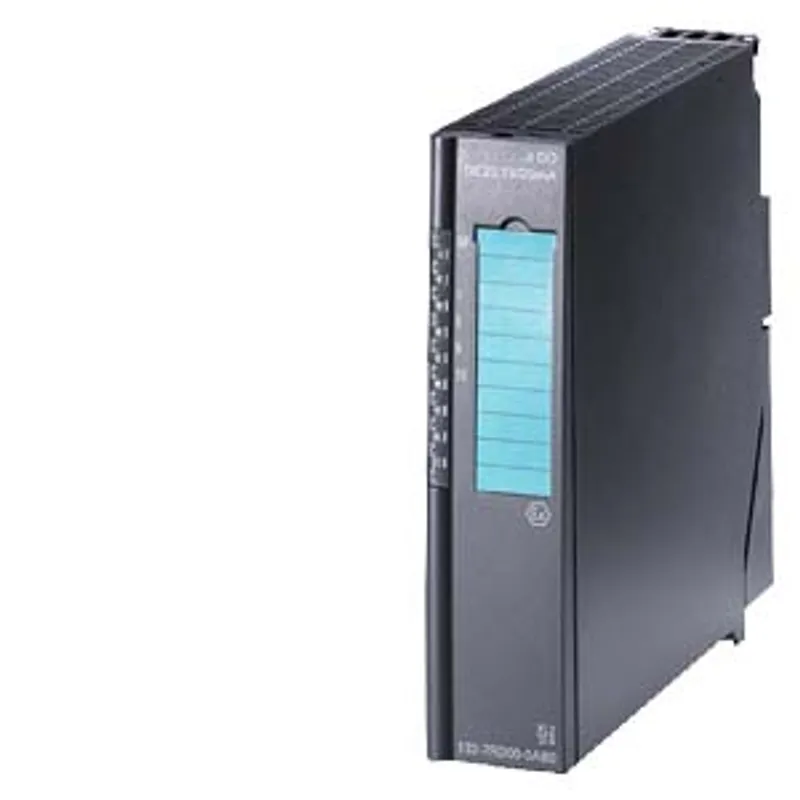

Siemens 6ES7132-7GD21-0AB0
SIMATIC, electronic module for ET200iSP, 4 DO, 17.4 V DC/40 mA, "L"-shutdown, Ex ib (ia Ga) IIC T4 Gb
- MPN
- 6ES7132-7GD21-0AB0
- Category
- Digital electronic modules
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 6ES7132-7GD21-0AB0?
SIMATIC, electronic module for ET200iSP, 4 DO, 17.4 V DC/40 mA, "L"-shutdown, Ex ib (ia Ga) IIC T4 Gb, Ex ib [ia IIIC Da] IIC T4 Gb, Ex ib [ia] I Mb
Specifications
General information
| Product type designation | 4DQ 17.4 V DC/40 mA |
| HW functional status | 2 |
| Firmware version | V3.0.0 |
| Product version | SHUT DOWN "L" |
Installation type/mounting
| Rack mounting | No |
| Front mounting | Yes |
| Rail mounting | Yes |
| Wall mounting/direct mounting | No |
Supply voltage
| Type of supply voltage | DC |
Input current
| Current consumption, typ. | 380 mA |
| from load voltage (power bus), max. | 400 mA |
Power loss
| Power loss, typ. | 2.8 W |
Address area
| Address space per module — Address space per module, max. | 2 byte |
Hardware configuration
| Fieldbus connection via separate transceiver | Yes |

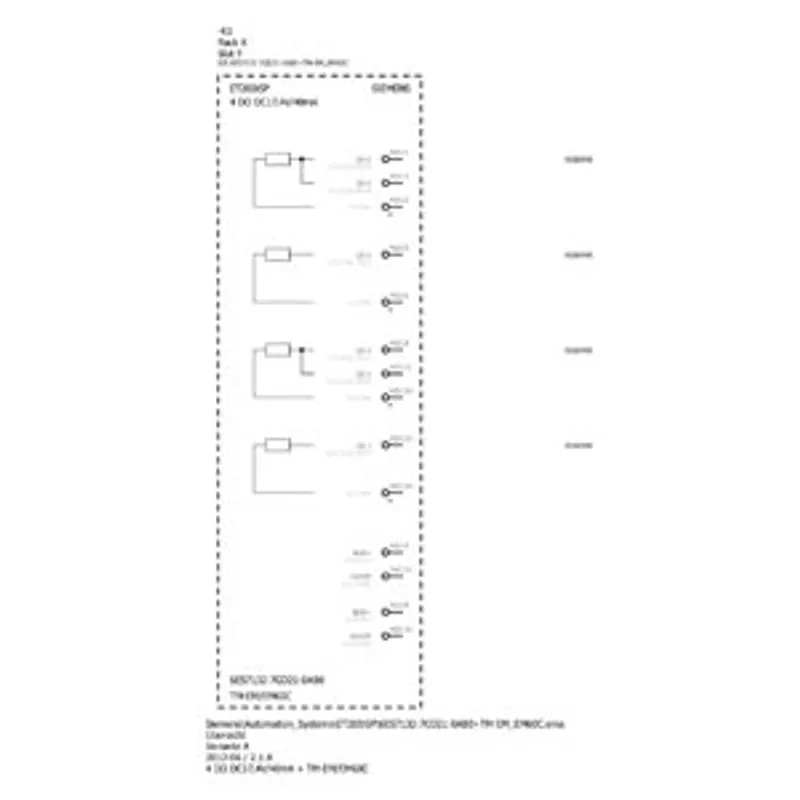

Digital outputs
| Type of digital output | Transistor |
| Number of digital outputs | 4; additionally 1 intrinsically-safe input for L shutdown |
| Short-circuit protection | Yes |
| No-load voltage Uao (DC) | 17.4 V |
| Internal resistor Ri | 167 Ω |
| Trend key points E — Voltage Ue (DC) | 10.7 V |
| Trend key points E — Current Ie | 40 mA |
| Output voltage — Type of output voltage | DC |
| Output current — for signal "1" rated value | 0.04 A |
| Output delay with resistive load — "0" to "1", max. | 2 ms |
| Output delay with resistive load — "1" to "0", max. | 1.5 ms |
| Parallel switching of two outputs — for uprating | Yes |
| Switching frequency — with resistive load, max. | 100 Hz |
| Switching frequency — with inductive load, max. | 2 Hz |
| Cable length — shielded, max. | 500 m |
| Cable length — unshielded, max. | 500 m |
Interfaces
| Number of PROFINET interfaces | 0 |
| Number of RS 485 interfaces | 0 |
Protocols
| Supports protocol for PROFINET IO | No |
| PROFIsafe | No |
| PROFIBUS | No |
Interrupts/diagnostics/status information
| Diagnostics function | Yes |
| Alarms — Diagnostic alarm | Yes; Parameterizable |
| Alarms — Hardware interrupt | No |
| Diagnoses — Diagnostic information readable | Yes |
| Diagnoses — Wire break | Yes; R > 10 kohms, I < 100 µA |
| Diagnoses — Short-circuit | Yes; R< 80 Ohm (one output), R< 40 Ohm (outputs connected in parallel) |
| Diagnostics indication LED — Group error SF (red) | Yes |
| Diagnostics indication LED — Status indicator digital output (green) | Yes; Per channel |
Ex(i) characteristics
| Module for Ex(i) protection | Yes; for more Co/Lo combinations, see certificate IECEx KEM 05.0011 |
| maximum values for connecting terminals for gas group IIC — Uo (no-load voltage), max. | 19.4 V |
| maximum values for connecting terminals for gas group IIC — Io (short-circuit current), max. | 118 mA |
| maximum values for connecting terminals for gas group IIC — Po (power output), max. | 0.57 W |
| maximum values for connecting terminals for gas group IIC — Co (permissible external capacity), max. | 0.24 µF |
| maximum values for connecting terminals for gas group IIC — Lo (permissible external inductivity), max. | 2.5 mH |
| maximum values for connecting terminals for gas group IIC — Ui (intrinsically safe input voltage), max. | 28 V; switch input circuit |
| maximum values for connecting terminals for gas group IIC — Pi (intrinsically safe input power), max. | 1.2 W; switch input circuit |
| maximum values for connecting terminals for gas group IIC — Ci (internal capacity), max. | 3 nF; switch input circuit |
Potential separation
| Potential separation digital outputs — between the channels | No |
| Potential separation digital outputs — between the channels and backplane bus | Yes |
| Potential separation digital outputs — Between the channels and load voltage L+ | Yes |
Permissible potential difference
| between different circuits | 60 V DC/30 V AC |
Degree and class of protection
| IP degree of protection | IP30 |
Standards, approvals, certificates
| CE mark | CE 0344 |
| UKCA mark | DEKRA 21UKEX0085 Importer UK: Siemens plc Manchester M20 2UR |
| cULus | LISTED E334384 |
| FM approval | CLASSIFIED 3025852 |
| Suitable for safety functions | No |
| INMETRO certificate | UL-BR 12.0073 |
| reference designation according to IEC 81346-2 (2009) | K |
| Highest safety class achievable in safety mode — SIL acc. to IEC 61508 | No |
| Use in hazardous areas — ATEX marking | II 2 G (1) G Ex ib [ia Ga] IIC T4 Gb II 2 G (1) D Ex ib [ia IIIC Da] IIC T4 Gb I M2 Ex ib [ia] I Mb |
| Use in hazardous areas — ATEX certificate | KEMA 04 ATEX 1249 |
| Use in hazardous areas — IECEx | IECEx KEM 05.0011 |
| Use in hazardous areas — CCC Ex | 2020322316002945 |
| Use in hazardous areas — EAC Ex | PB Ex ib [ia] I Mb 1Ex ib [ia Ga] IIC T4 Gb [Ex ia Da] IIIC |
| Use in hazardous areas — FM marking | Class I, Zone 1 AEx ib [ia] IIC T4 Ex ib IIC T4 NI, Class I, DIV.2, GP. A,B,C,D T4 AIS, Class I, DIV.1, GP. A,B,C,D T4 DIP Class II, III, GP. E,F,G |
| Use in hazardous areas — Explosion protection category for gas | ATEX gas explosion protection, Zone 1 |
| Use in hazardous areas — Explosion protection category for dust | ATEX dust explosion protection, Zone 21 always install in corresponding enclosure |
| Use in hazardous areas — associated equipment (Ex ia) | Yes |
| Use in hazardous areas — associated equipment (Ex ib) | Yes |
| Marine approval — Germanischer Lloyd (GL) | Yes |
| Marine approval — American Bureau of Shipping (ABS) | Yes |
| Marine approval — Bureau Veritas (BV) | Yes |
| Marine approval — Det Norske Veritas (DNV) | Yes |
Connection method
| Design of electrical connection | Screw/spring-type terminal |

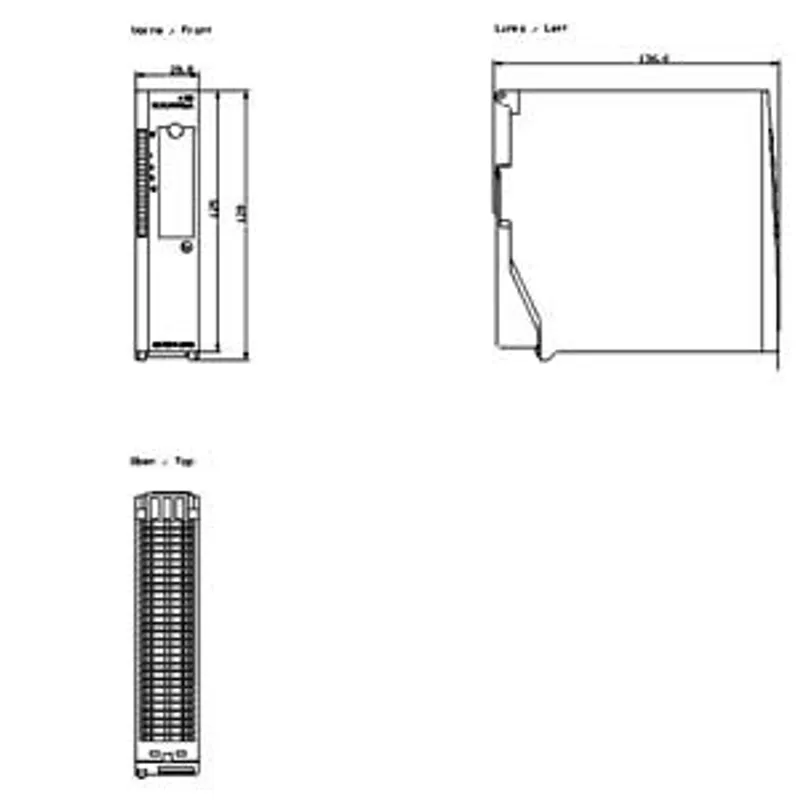

Dimensions
| Width | 30 mm |
| Height | 129 mm |
| Depth | 136.5 mm |
Weights
| Weight, approx. | 255 g |
