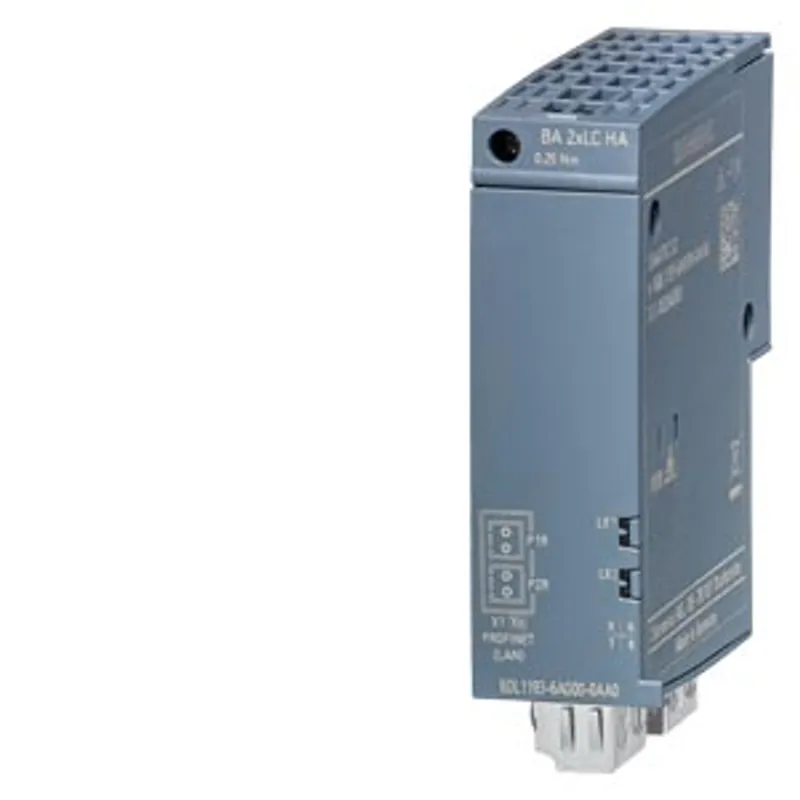

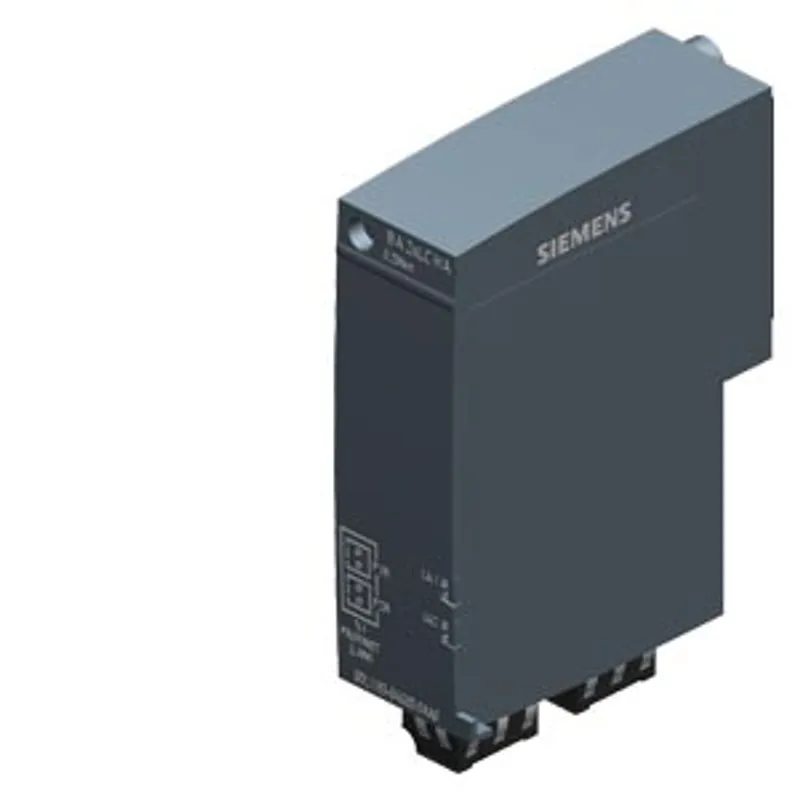

Siemens 6DL1193-6AG00-0AA0
SIMATIC ET 200SP HA, bus adapter BA 2XLC 2 x LC glass FOC connections, for PROFINET
- MPN
- 6DL1193-6AG00-0AA0
- Category
- IE/PB LINK
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 6DL1193-6AG00-0AA0?
SIMATIC ET 200SP HA, bus adapter BA 2XLC 2 x LC glass FOC connections, for PROFINET
Specifications
General information
| Product type designation | BA 2xLC |
Interfaces
| Number of PROFINET interfaces | 1; 2 ports (switch) LC Multimode Glass Fibre |
| Supports protocol for PROFINET IO — Number of LC ports | 2 |
| Supports protocol for PROFINET IO — Cable length — Multimode graded-index fiber 50/125 µm | 3 km; min. transmit power -23.5 dB, min. receiver sensitivity -31 dB |
| Supports protocol for PROFINET IO — Cable length — Multimode graded-index fiber 62.5/125 μm | 3 km; min. transmit power -20 dB, min. receiver sensitivity -31 dB |
Ambient conditions
| Ambient temperature during operation — min. | -40 °C |
| Ambient temperature during operation — max. | 65 °C; redundant design (2x 6DL1155-6AU00-0PM0): max. 60 °C horizontal, max. 50 °C vertical. When using different I/O devices, the derating specified there must be observed |
| Ambient temperature during operation — horizontal installation, min. | -40 °C |
| Ambient temperature during operation — horizontal installation, max. | 60 °C |
| Ambient temperature during operation — vertical installation, min. | -40 °C |
| Ambient temperature during operation — vertical installation, max. | 50 °C |

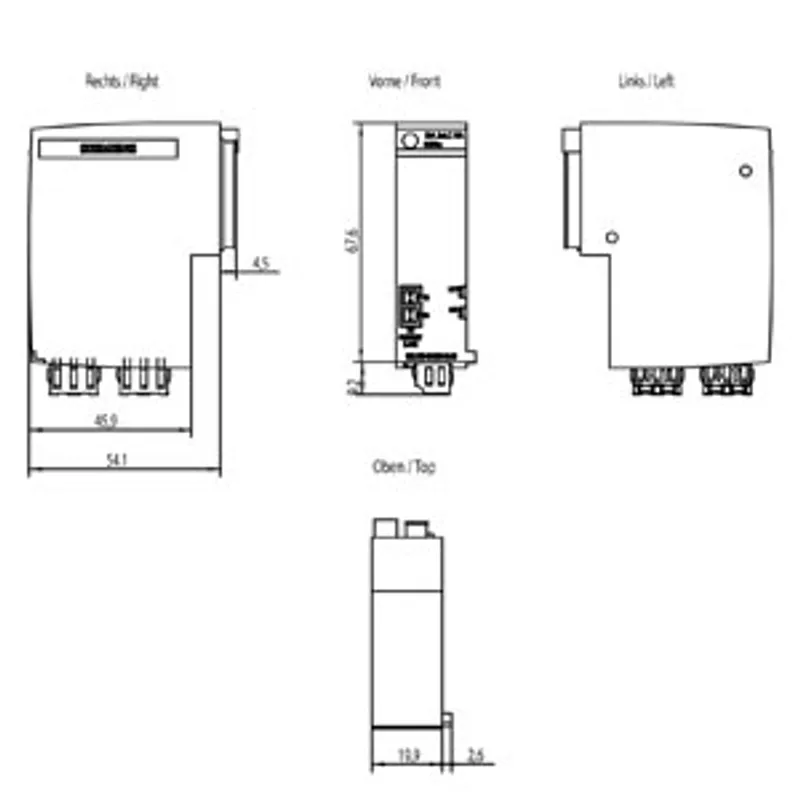

Dimensions
| Width | 20 mm |
| Height | 75 mm; Without protective caps (approx. 8 mm) |
| Depth | 59 mm |
Weights
| Weight, approx. | 60 g |
Downloads & documentation
Official documents from Siemens, downloaded directly from the manufacturer.
Data sheets & manuals
6DL1193-6AG00-0AA0: frequently asked questions
When can 6DL1193-6AG00-0AA0 be shipped?
6DL1193-6AG00-0AA0 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 6DL1193-6AG00-0AA0 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 6DL1193-6AG00-0AA0 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 6DL1193-6AG00-0AA0, subject to availability and destination.
