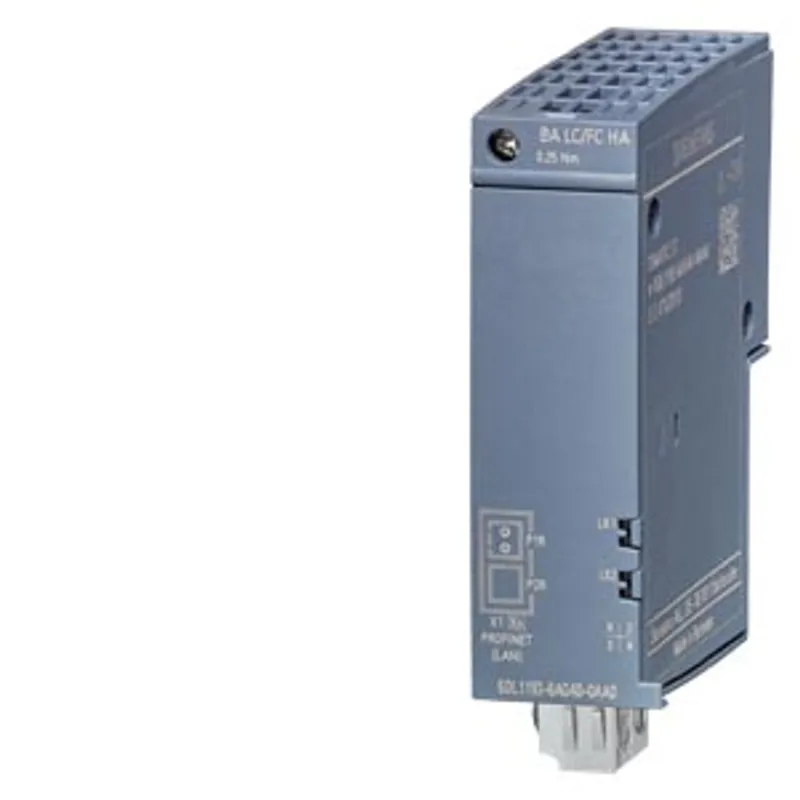

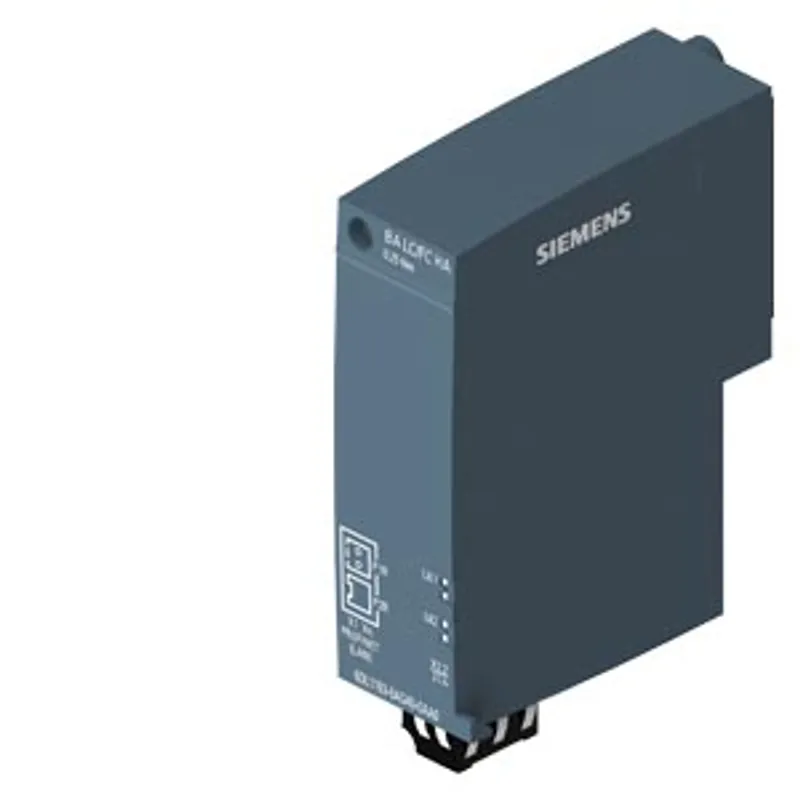

Siemens 6DL1193-6AG40-0AA0
SIMATIC ET 200SP HA, bus adapter BA LC/FC, Media converter FOC/CU 1x LC FO connection and
- MPN
- 6DL1193-6AG40-0AA0
- Category
- BusAdapters
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 6DL1193-6AG40-0AA0?
SIMATIC ET 200SP HA, bus adapter BA LC/FC, Media converter FOC/CU 1x LC FO connection and, 1x FastConnect (FC) connection for PROFINET
Specifications
General information
| Product type designation | BA LC/FC |
Interfaces
| Number of PROFINET interfaces | 1; 2 ports (switch) LC / FC |
| Supports protocol for PROFINET IO — Number of FC (FastConnect) connections | 1 |
| Supports protocol for PROFINET IO — Number of LC ports | 1; Wavelength of 1 270 ... 1 380 nm, corresponds to 100BASE-FX |
| Supports protocol for PROFINET IO — Cable length — Cu conductors | 100 m |
| Supports protocol for PROFINET IO — Cable length — Multimode graded-index fiber 50/125 µm | 3 km; min. transmit power -23.5 dB, min. receiver sensitivity -31 dB |
| Supports protocol for PROFINET IO — Cable length — Multimode graded-index fiber 62.5/125 μm | 3 km; min. transmit power -20 dB, min. receiver sensitivity -31 dB |
Standards, approvals, certificates
| RoHS conformity | Yes |
| China RoHS compliance | Yes |
Ambient conditions
| Ambient temperature during operation — min. | -40 °C |
| Ambient temperature during operation — max. | 65 °C; = Tmax for horizontal installation; for vertical installation Tmax = 60 °C; redundant setup (2x 6DL1155-6AU00-0PM0): max. 60 °C horizontally, max. 55 °C vertically. When using different IO Devices, the derating specified there must be observed. |
| Ambient temperature during operation — horizontal installation, min. | -40 °C |
| Ambient temperature during operation — horizontal installation, max. | 60 °C |
| Ambient temperature during operation — vertical installation, min. | -40 °C |
| Ambient temperature during operation — vertical installation, max. | 55 °C |

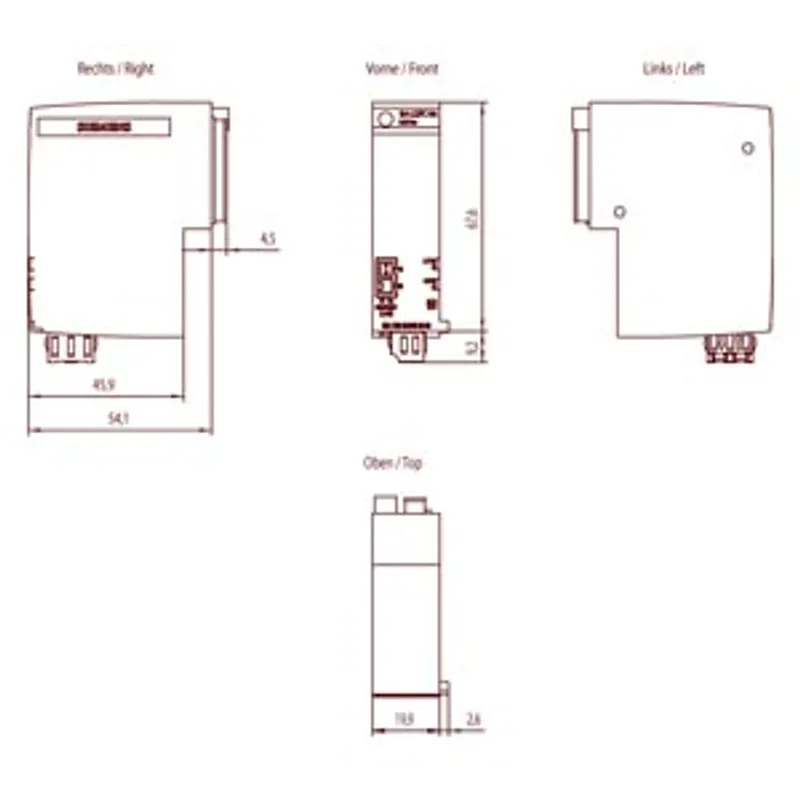

Dimensions
| Width | 20 mm |
| Height | 75 mm; Without protective caps (approx. 8 mm) |
| Depth | 59 mm |
Weights
| Weight, approx. | 50 g |
Downloads & documentation
Official documents from Siemens, downloaded directly from the manufacturer.
Data sheets & manuals
6DL1193-6AG40-0AA0: frequently asked questions
When can 6DL1193-6AG40-0AA0 be shipped?
6DL1193-6AG40-0AA0 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 6DL1193-6AG40-0AA0 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 6DL1193-6AG40-0AA0 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 6DL1193-6AG40-0AA0, subject to availability and destination.
