Siemens 6DL1131-6BL00-0PH1

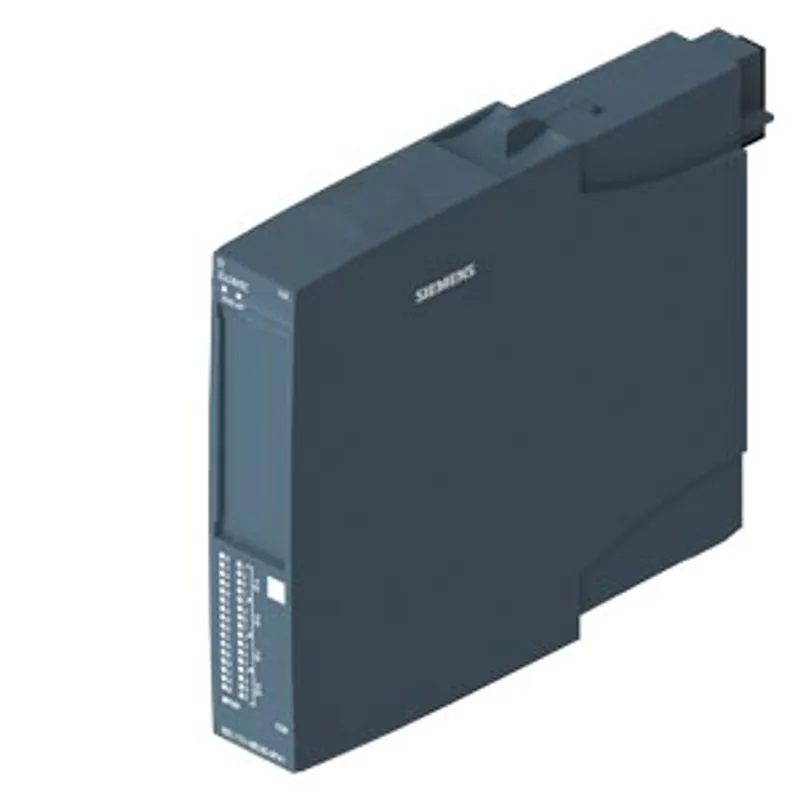

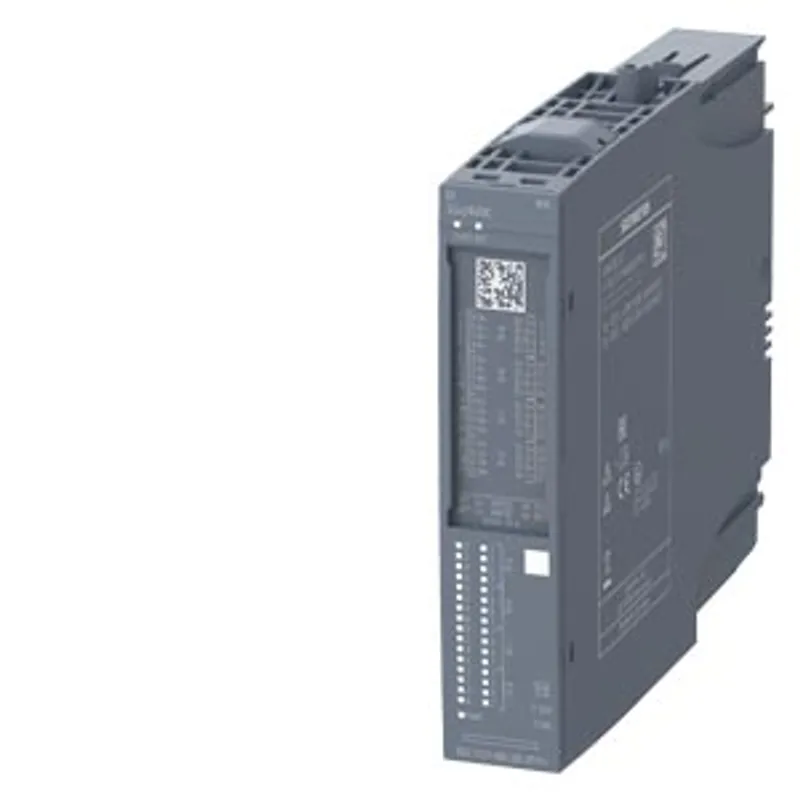

SIMATIC ET 200SP HA, digital input module, DI 32X24VDC HA, suitable for terminal block, H1, P0

MPN: 6DL1131-6BL00-0PH1
Category: Digital I/O modules

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Siemens parts? We buy surplus →

What is the Siemens 6DL1131-6BL00-0PH1?

SIMATIC ET 200SP HA, digital input module, DI 32X24VDC HA, suitable for terminal block, H1, P0, color code CC00, channel diagnostics

Specifications

General information

Product type designation	DI 32x24VDC HA
Firmware version	V1.0
Firmware version — FW update possible	Yes
Usable terminal block	type H1, P0, N0, H0 (see system manual for details)
Color code for module-specific color-coded label	CC00
Product function — I&M data	Yes; I&M0 to I&M3
Engineering with — STEP 7 TIA Portal configurable/integrated from version	V16
Engineering with — STEP 7 configurable/integrated from version	V5.6
Engineering with — PCS 7 configurable/integrated from version	V9.0
Engineering with — PCS neo can be configured/integrated from version	V3.0
Engineering with — PROFINET from GSD version/GSD revision	GSDML V2.3
Operating mode — DI	Yes
Operating mode — Counter	No
Operating mode — Oversampling	No
Operating mode — MSI	No
Redundancy — Redundancy capability	No

Supply voltage

Rated value (DC)	24 V
permissible range, lower limit (DC)	19.2 V
permissible range, upper limit (DC)	28.8 V
Reverse polarity protection	Yes

Input current

Current consumption (rated value)	11.5 mA
Current consumption, max.	15 mA

Encoder supply

Number of outputs	32; When terminal block with encoder supply is used (type P0)
Output voltage, min.	19.2 V
Short-circuit protection	Yes; When using TB type P0

Power loss

Power loss, typ.

1.6 W; Max. 2.8 W (all inputs "1")

Address area

Address space per module — Address space per module, max.

4 byte; + 4 bytes for QI information

Hardware configuration

Automatic encoding — Mechanical coding element

Yes

Digital inputs

Number of digital inputs	32
Digital inputs, parameterizable	Yes
Sourcing/sinking input	Yes; P-reading
Input characteristic curve in accordance with IEC 61131, type 1	Yes
Input characteristic curve in accordance with IEC 61131, type 2	No
Input characteristic curve in accordance with IEC 61131, type 3	Yes
Pulse extension	No
Edge evaluation	Yes; rising edge, falling edge, edge change
Input voltage — Rated value (DC)	24 V
Input voltage — for signal "0"	-30 to +5 V
Input voltage — for signal "1"	+11 to +30V
Input current — for signal "1", typ.	2.5 mA
Input delay (for rated value of input voltage) — for standard inputs — Parameterizable	No
Input delay (for rated value of input voltage) — for standard inputs — at "0" to "1", min.	3.2 ms
Input delay (for rated value of input voltage) — for standard inputs — at "0" to "1", max.	5.3 ms
Input delay (for rated value of input voltage) — for standard inputs — at "1" to "0", min.	2.9 ms
Input delay (for rated value of input voltage) — for standard inputs — at "1" to "0", max.	4.5 ms
Cable length — shielded, max.	1 000 m
Cable length — unshielded, max.	600 m

Encoder

Connectable encoders — 2-wire sensor	Yes
Connectable encoders — 2-wire sensor — permissible quiescent current (2-wire sensor), max.	1.5 mA

Interrupts/diagnostics/status information

Diagnostics function	Yes
Alarms — Diagnostic alarm	Yes; channel by channel
Alarms — Hardware interrupt	Yes; channel by channel
Diagnoses — Diagnostic information readable	Yes
Diagnoses — Monitoring the supply voltage	Yes; module-wise
Diagnoses — Monitoring the supply voltage — parameterizable	Yes
Diagnoses — Wire break	Yes; Channel-by-channel, optional protective circuit for preventing wire-break diagnostics in the case of simple encoder contacts: 15 kOhm to 18 kOhm
Diagnoses — Short-circuit	No
Diagnostics indication LED — MAINT LED	Yes; Yellow LED
Diagnostics indication LED — Monitoring of the supply voltage (PWR-LED)	Yes; green PWR LED
Diagnostics indication LED — Channel status display	Yes; green LED
Diagnostics indication LED — for channel diagnostics	No
Diagnostics indication LED — for module diagnostics	Yes; green/red DIAG LED

Potential separation

Potential separation channels — between the channels	No
Potential separation channels — between the channels and backplane bus	Yes
Potential separation channels — between the channels and the power supply of the electronics	No

Isolation

Isolation tested with

1 500 V DC/1 min, type test

Ambient conditions

Ambient temperature during operation — horizontal installation, min.	-40 °C
Ambient temperature during operation — horizontal installation, max.	70 °C
Ambient temperature during operation — vertical installation, min.	-40 °C
Ambient temperature during operation — vertical installation, max.	60 °C

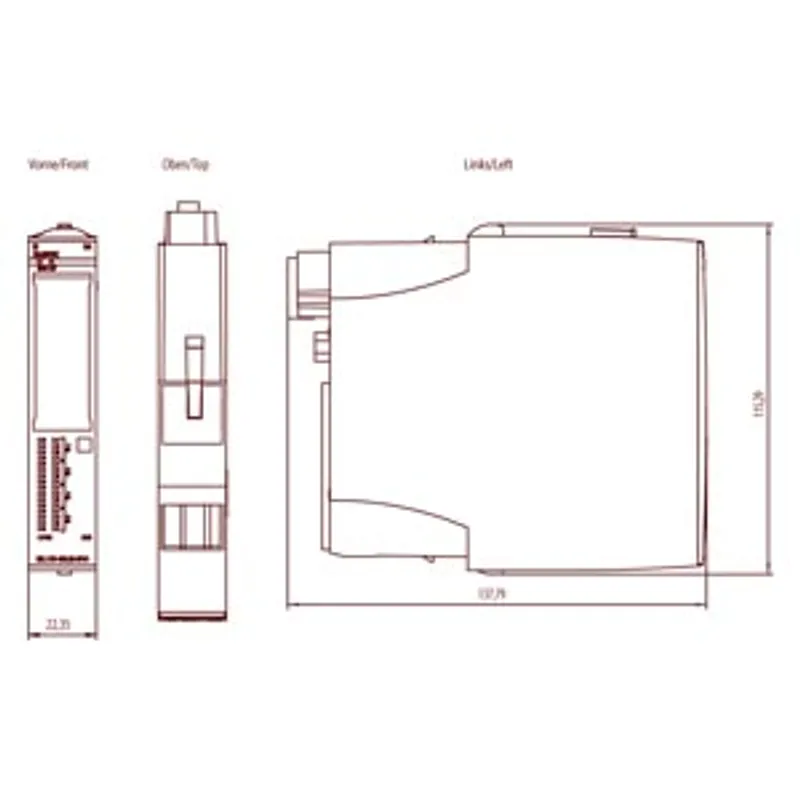

Dimensions

Width	22.5 mm
Height	115 mm
Depth	138 mm

Weights

Weight, approx.

150 g
