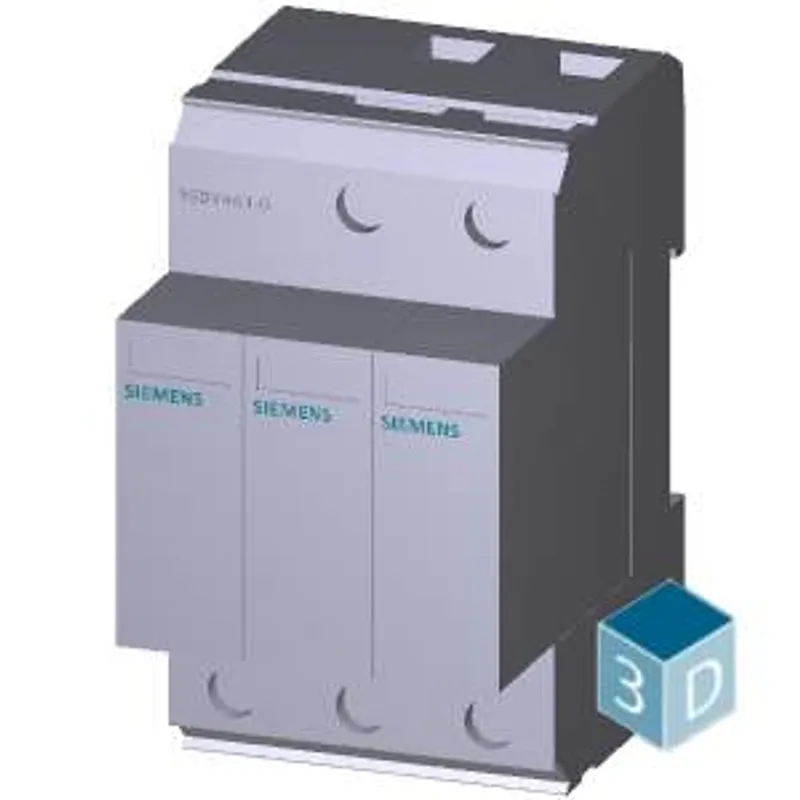

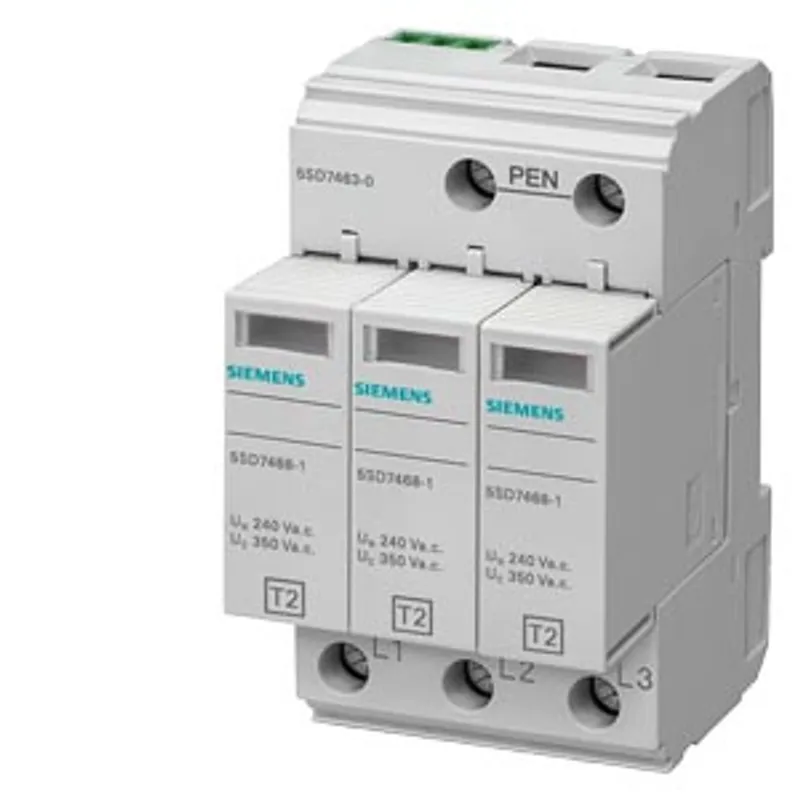

Siemens 5SD7463-0

Surge arrester type, 2, requirement class C, Uc 350 V, protective modules, plug-in, 3-pole

MPN
5SD7463-0
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Siemens parts? We buy surplus →

What is the Siemens 5SD7463-0?

surge arrester type, 2, requirement class C, Uc 350 V, protective modules, plug-in, 3-pole, 3+0 circuit for TNC systems,

Specifications

General data

standardIEC 61643-11: 2011, EN 61643-11: 2012
product designationSurge protection device
SPD classification according to EN 61643-11 — Test Class I, Type 1No
SPD classification according to EN 61643-11 — Test Class II, Type 2Yes
SPD classification according to EN 61643-11 — Test Class III, Type 3No
number of SPD ports1
design of the productSurge arrester
design of pole3
designation of the protective pathsL-PEN
accessories3 x 5SD7468-1
fastening methodTH35 DIN rail
material of the enclosurePA 6.6 / PBT
size of surge arrester3 MW
degree of pollution2
overvoltage category according to IEC 61010-1III
protection class IP at connection all terminalsIP20
shock acceleration25 gn
vibrational acceleration at 5 Hz ... 500 Hz limited to 2,5 h per axis5 gn
relative humidity during operation5 ... 95 %
installation altitude at height above sea level maximum2 000 m

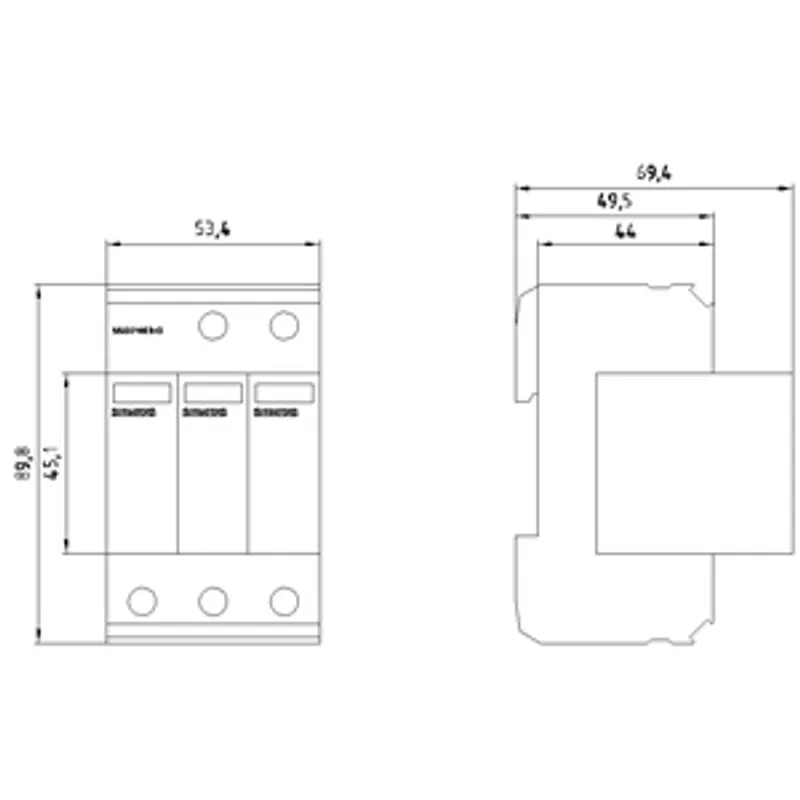

width53.4 mm
height90 mm
depth71.5 mm

Electrical data

type of distribution systemTN-C
operating voltage — at AC230 V
value range of the operating frequency50 / 60 Hz
continuous operating voltage — at AC maximum350 V
apparent power consumption maximum450 mVA
discharge current at (8/20) µs20 kA
discharge current 1 phase at (8/20) µs maximum40 kA
short-circuit rating (SCCR) at 264 V25 kA
protection level1.4 kV
protection level — maximum1.5 kV
residual voltage — at rated value of discharge current maximum1.5 kV
residual voltage — at 10 kA maximum1.3 kV
residual voltage — at 5 kA maximum1.2 kV
residual voltage — at 3 kA maximum1.1 kV
Response time25 ns
adjustable response factor of tripping current1.6
fuse protection type at V-shaped connection80 A AC (gG)
fuse protection type for T-connector125 A AC (gG)

Connections/ Terminals

type of electrical connectionScrew terminal
stripped length16 mm
tightening torque4.3 ... 4.7 N·m
connectable conductor cross-section — for finely stranded conductor1.5 ... 25 mm²
connectable conductor cross-section — for rigid conductor1.5 ... 35 mm²
connectable conductor cross-section — finely stranded0.5 ... 25 mm²
AWG number as coded connectable conductor cross section15 ... 2
design of the thread of the connection screwM5
signal designOptical, remote signaling contact

Indicator/remote signaling

product component remote signaling contactNo

NEMA/UL - Data

type of distribution systemTN-C
ambient temperature — during operation-40 ... +80 °C
ambient temperature — during storage-40 ... +80 °C
combustibility class according to UL 94V-0
