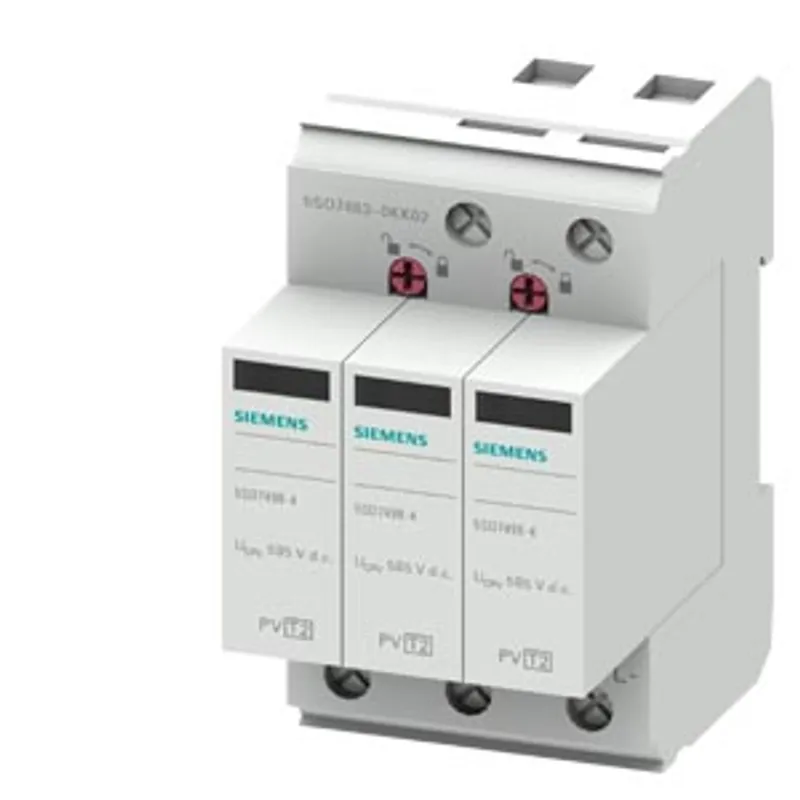

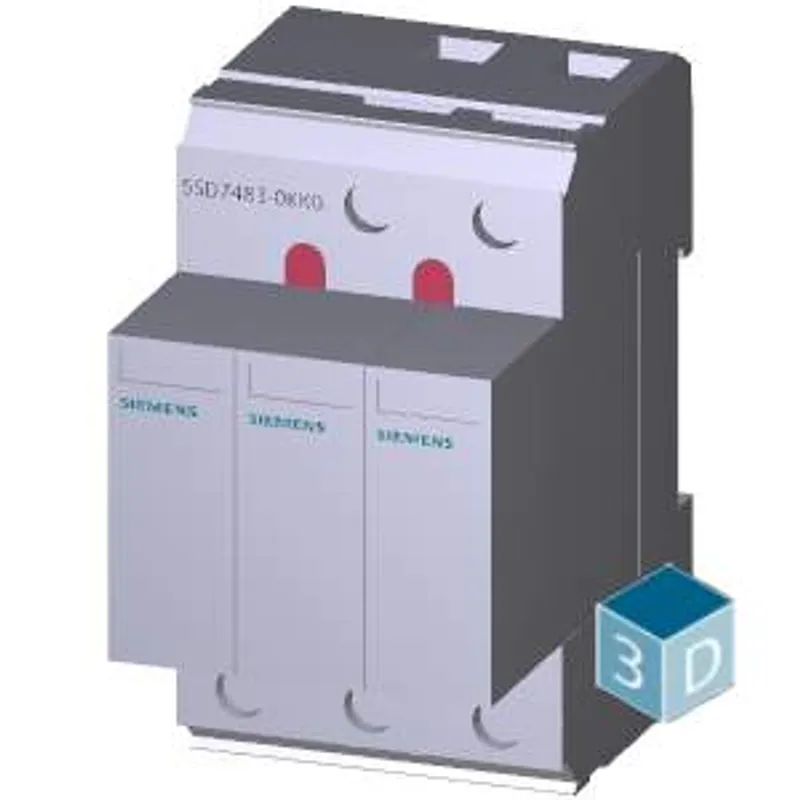

Siemens 5SD7483-0KK02

Surge arrester, T2, Uc 1000 V DC, Imax 40 kA short-circuit strength 2000 A, 2+V circuit

MPN
5SD7483-0KK02
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Siemens parts? We buy surplus →

What is the Siemens 5SD7483-0KK02?

surge arrester, T2, Uc 1000 V DC, Imax 40 kA short-circuit strength 2000 A, 2+V circuit, for isolated and grounded PV systems

Specifications

General data

standardIEC 61643-31: 2022
SPD classification according to EN 61643-11 — Test Class I, Type 1No
SPD classification according to EN 61643-11 — Test Class II, Type 2Yes
SPD classification according to EN 61643-11 — Test Class III, Type 3No
number of SPD ports1
design of the productSurge arrester
design of pole2

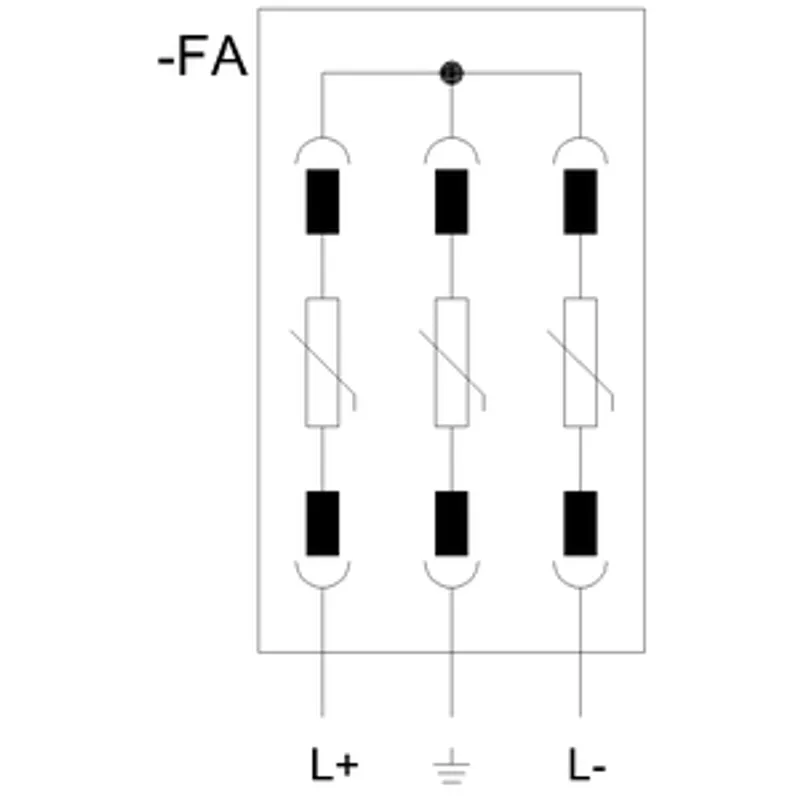

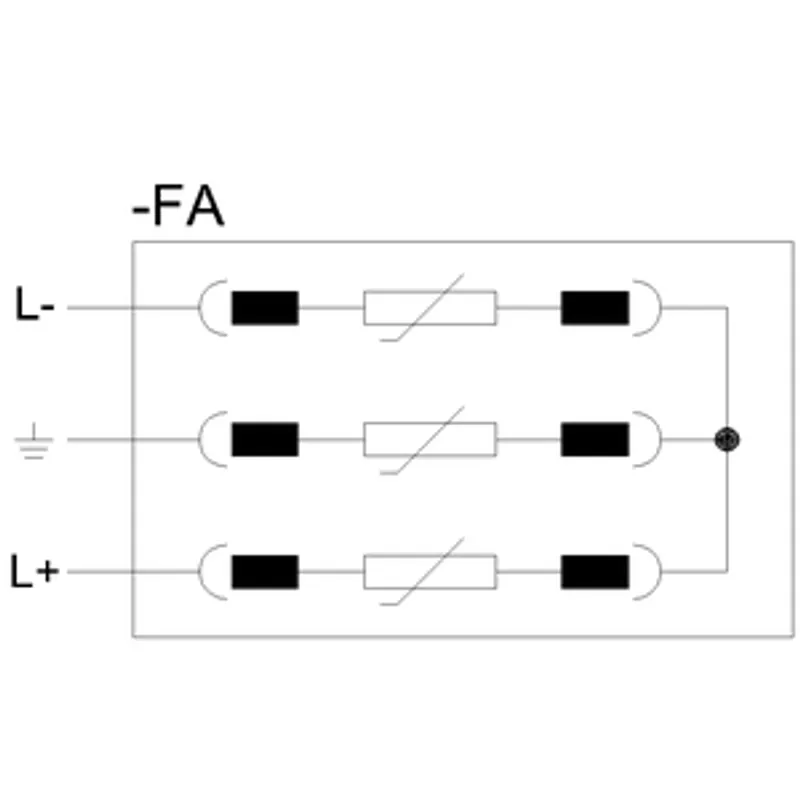

designation of the protective paths(L+)-(L-)
fastening methodTH35 DIN rail
material of the enclosurePA 6.6
size of surge arrester3 MW
degree of pollution2
overvoltage category according to IEC 61010-1III
protection class IP at connection all terminalsIP20
relative humidity during operation5 ... 95 %
installation altitude at height above sea level maximum2 000 m

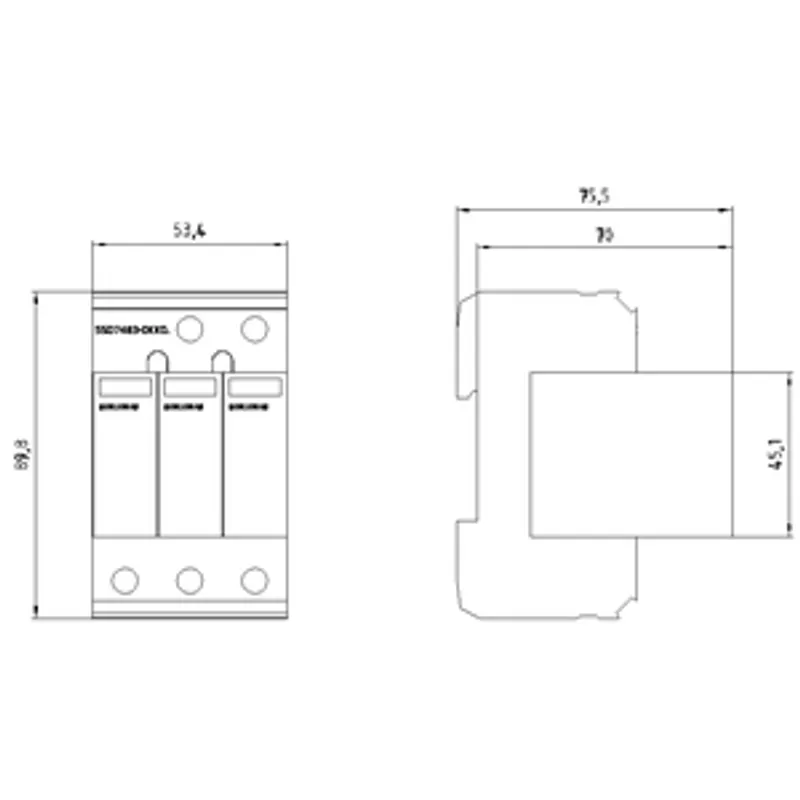

width53 mm
height90 mm
depth66 mm

Electrical data

type of distribution systemPV
operating voltage — at DC1 000 V
continuous operating voltage — at DC maximum1 000 V
discharge current at (8/20) µs15 kA
discharge current 1 phase at (8/20) µs maximum40 kA
protection level3.7 kV
protection level — maximum3.7 kV
residual voltage — at rated value of discharge current maximum3.7 kV
residual voltage — at 10 kA maximum3.7 kV
residual voltage — at 5 kA maximum3.1 kV
Response time25 ns
MPP voltage1 170 V

Connections/ Terminals

type of electrical connectionScrew terminal
stripped length16 mm
tightening torque3 ... 4.5 N·m
connectable conductor cross-section — for finely stranded conductor1.5 ... 25 mm²
connectable conductor cross-section — for rigid conductor1.5 ... 35 mm²
connectable conductor cross-section — finely stranded1.5 ... 25 mm²
AWG number as coded connectable conductor cross section10 ... 2
signal designOptical, remote signaling contact

Indicator/remote signaling

product component remote signaling contactNo

NEMA/UL - Data

type of distribution systemPV
ambient temperature — during operation-40 ... +80 °C
ambient temperature — during storage-40 ... +80 °C
combustibility class according to UL 94V0
