Siemens 5SD7444-8KK22

Combination arrester type 1+2 requirement class B+C, Uc 300 V, Iimp=12.5 kA 4-pole

MPN
5SD7444-8KK22
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Siemens parts? We buy surplus →

What is the Siemens 5SD7444-8KK22?

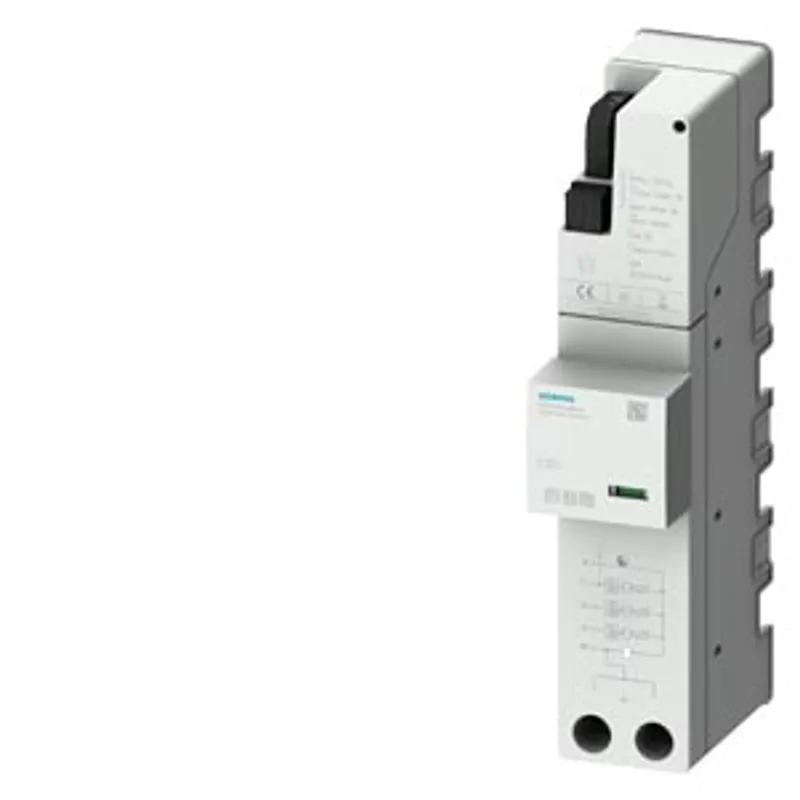

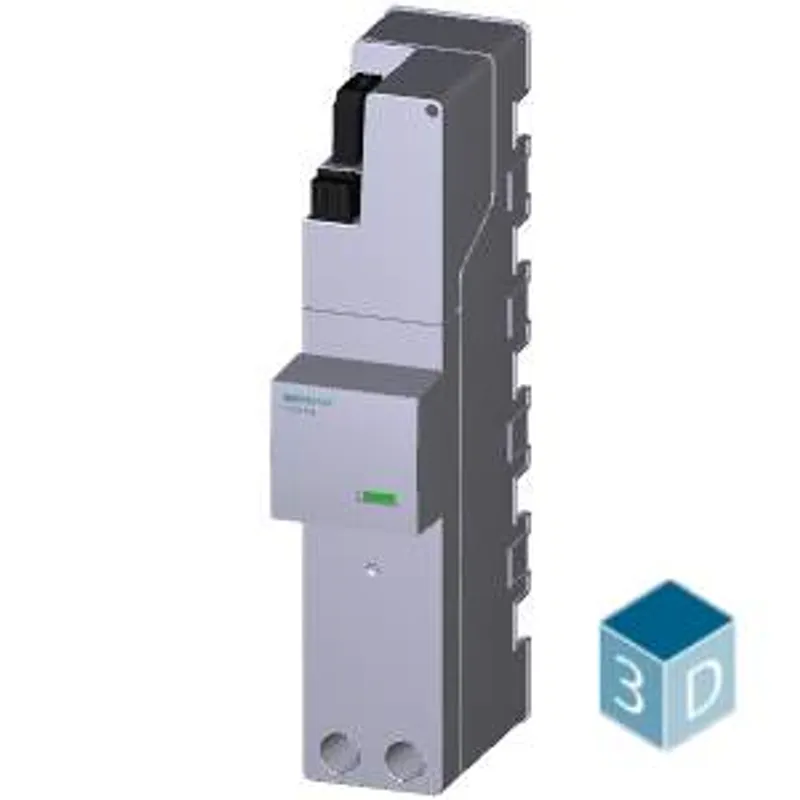

combination arrester type 1+2 requirement class B+C, Uc 300 V, Iimp=12.5 kA 4-pole, 3+1 circuit for TN-S and TT systems, for 40 mm busbar system with remote display and phase tap

Specifications

General data

standardIEC 61643-11: 2011, EN 61643-11: 2012
product designationSurge protection device
SPD classification according to EN 61643-11 — Test Class I, Type 1Yes
SPD classification according to EN 61643-11 — Test Class II, Type 2Yes
SPD classification according to EN 61643-11 — Test Class III, Type 3Yes
number of SPD ports1
design of the productArrester combination
design of pole3+N/PE
designation of the protective pathsL-N, N-PE
fastening methodbusbar mounting 40 mm
material of the enclosureDurethan
degree of pollution2
overvoltage category according to IEC 61010-1II
protection class IP at connection all terminalsIP20
shock acceleration30 gn
vibrational acceleration at 5 Hz ... 500 Hz limited to 2,5 h per axis4.96 gn
relative humidity during operation5 ... 95 %
installation altitude at height above sea level maximum4 000 m

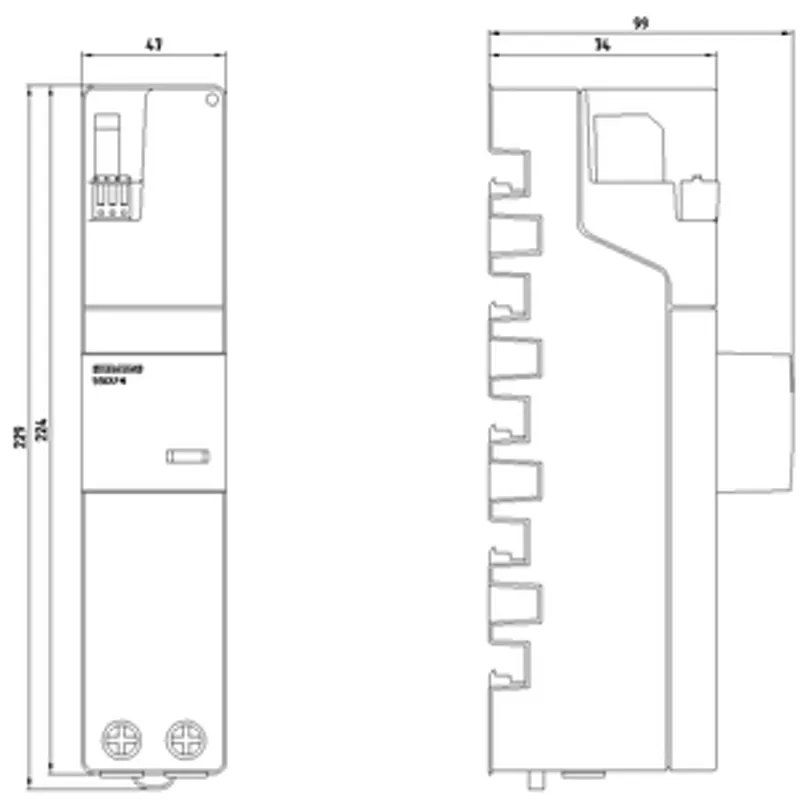

width47 mm
height224 mm
depth74 mm

Electrical data

type of distribution systemTN-S, TT
operating voltage — at AC230 V
value range of the operating frequency50 / 60 Hz
continuous operating voltage — at AC maximum300 V
continuous operating voltage — between L and (PE)N at AC maximum300 V
apparent power consumption maximum1.5 mVA
discharge current at (8/20) µs20 kA
discharge current 1 phase at (8/20) µs maximum50 kA
discharge current — between L and (PE)N at (8/20) µs20 kA
discharge current — between N and PE at (8/20) µs100 kA
discharge current — between N and PE at (8/20) µs80 kA
lightning current peak value at (10/350) µs12.5 kA
lightning current peak value at (10/350) µs — lightning current peak value between N and PE50 kA
lightning current peak value at (10/350) µs — lightning current peak value between L and N12.5 kA
charge of the flash at (10/350) µs — charge of the flash between L and N6.25 A·s
charge of the flash at (10/350) µs — charge of the flash between N and PE25 A·s
specific energy of the flash at (10/350) µs — between L and N39 kJ/?
specific energy of the flash at (10/350) µs — between N and PE625 kJ/?
follow current extinguishing capability — between N and PE100 A
short-circuit rating (SCCR) at 264 V25 kA
protection level1.5 kV
protection level — maximum1.5 kV
protection level — between L and N maximum1.5 kV
protection level — between N and L1.5 kV
protection level — between N and PE maximum1.5 kV
protection level — between PE and N and/or L1.5 kV
residual voltage — at rated value of discharge current maximum1.5 kV
residual voltage — at 5 kA maximum1.1 kV
residual voltage — between L and (PE)N — at rated value of discharge current maximum1.5 kV
residual voltage — between L and (PE)N — at 5 kA maximum1.1 kV
residual voltage — between N and PE — at rated value of discharge current maximum1.5 kV
residual voltage — between N and PE — at 5 kA maximum1.1 kV
response value of the surge voltage at 6 kV at (1.2/50) µs1.5 kV
response value of the surge voltage at 6 kV at (1.2/50) µs — between L and N1.5 kV
response value of the surge voltage at 6 kV at (1.2/50) µs — between N and PE1.5 kV
Response time100 ns
response time between L and (PE)N100 ns
response time between N and PE100 ns
fuse protection type at V-shaped connection315 A AC (gG)
fuse protection type for T-connector315 A AC (gG)

Connections/ Terminals

type of electrical connectionplug-in technology for busbar 40 mm
tightening torque4.5 N·m
connectable conductor cross-section — for finely stranded conductor10 ... 25 mm²
connectable conductor cross-section — for rigid conductor10 ... 35 mm²
connectable conductor cross-section — finely stranded10 ... 25 mm²
AWG number as coded connectable conductor cross section12 ... 2
design of the thread of the connection screwM6
signal designOptical, remote signaling contact

Indicator/remote signaling

product component remote signaling contactYes
switching function of the remote signaling contactsNO / NC
operating voltage of the remote signaling contacts at AC125 ... 250 V
operational current of the remote signaling contacts at AC1 mA
connection type of remote signaling contactscrewless /push in
connectable conductor cross-section for remote signaling contacts for rigid conductor0.25 ... 1.5 mm²
connectable conductor cross-section for remote signaling contacts for finely stranded conductor0.25 ... 1.5 mm²
AWG number as coded connectable conductor cross section for remote signaling contacts24 ... 16
stripped length of the cable for remote signaling contacts12 mm

NEMA/UL - Data

type of distribution systemTN-S, TT
AWG number as coded connectable conductor cross section — for remote signaling contacts according to UL24 ... 16
ambient temperature — during operation-40 ... +85 °C
ambient temperature — during storage-40 ... +80 °C
combustibility class according to UL 94V0
