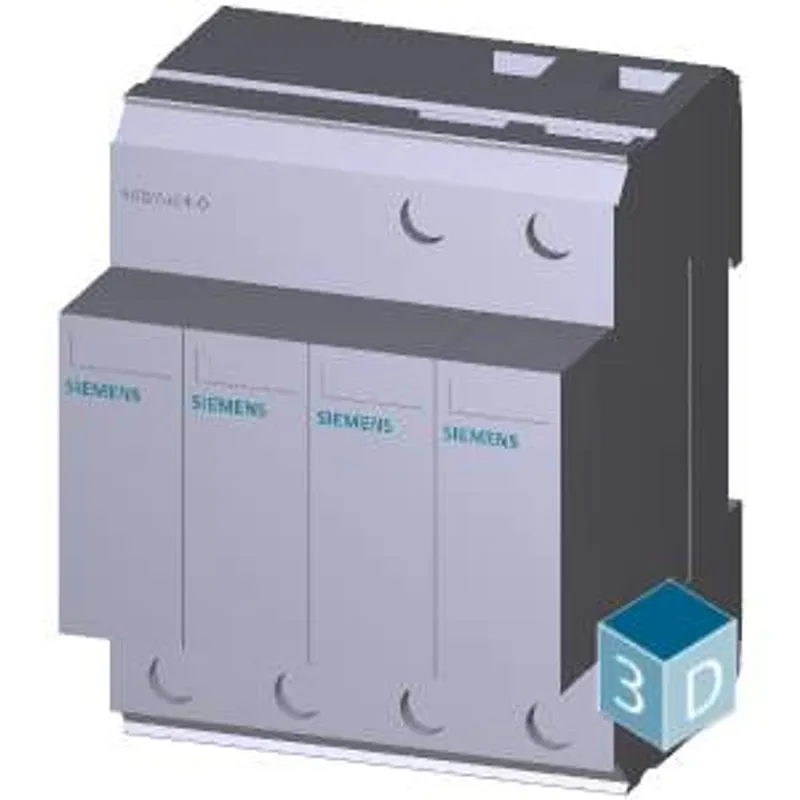

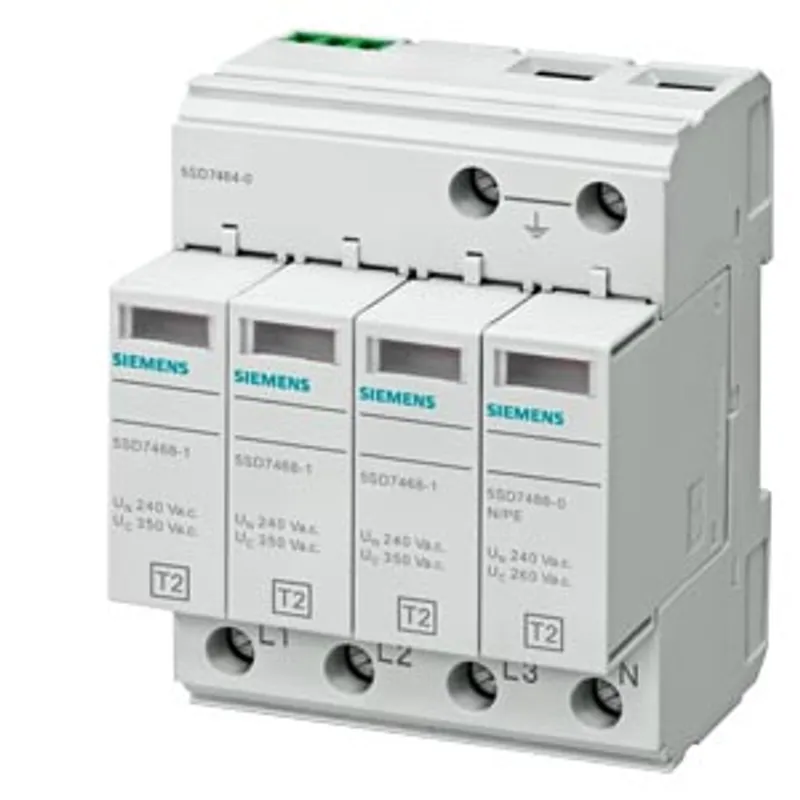

Siemens 5SD7464-0
Surge arrester type, 2, requirement class C, Uc 350 V, protective modules, plug-in, 4-pole
- MPN
- 5SD7464-0
- Category
- Basic devices
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 5SD7464-0?
surge arrester type, 2, requirement class C, Uc 350 V, protective modules, plug-in, 4-pole, 3+1 circuit for TN-S and TT systems,
Specifications
General data
| standard | IEC 61643-11: 2011, EN 61643-11: 2012 |
| product designation | Surge protection device |
| SPD classification according to EN 61643-11 — Test Class I, Type 1 | No |
| SPD classification according to EN 61643-11 — Test Class II, Type 2 | Yes |
| SPD classification according to EN 61643-11 — Test Class III, Type 3 | No |
| number of SPD ports | 1 |
| design of the product | Surge arrester |
| design of pole | 3+N/PE |
| designation of the protective paths | L-N, L-PE, N-PE |

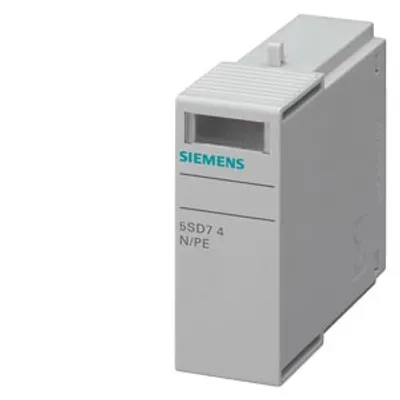

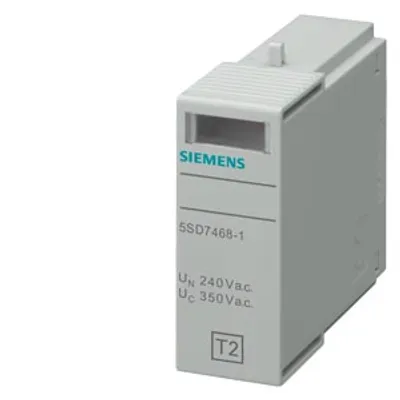

| accessories | 3 x 5SD7468-1 + 1 x 5SD7488-0 |
| fastening method | TH35 DIN rail |
| material of the enclosure | PA 6.6 / PBT |
| size of surge arrester | 4 MW |
| degree of pollution | 2 |
| overvoltage category according to IEC 61010-1 | III |
| protection class IP at connection all terminals | IP20 |
| shock acceleration | 25 gn |
| vibrational acceleration at 5 Hz ... 500 Hz limited to 2,5 h per axis | 5 gn |
| relative humidity during operation | 5 ... 95 % |
| installation altitude at height above sea level maximum | 2 000 m |

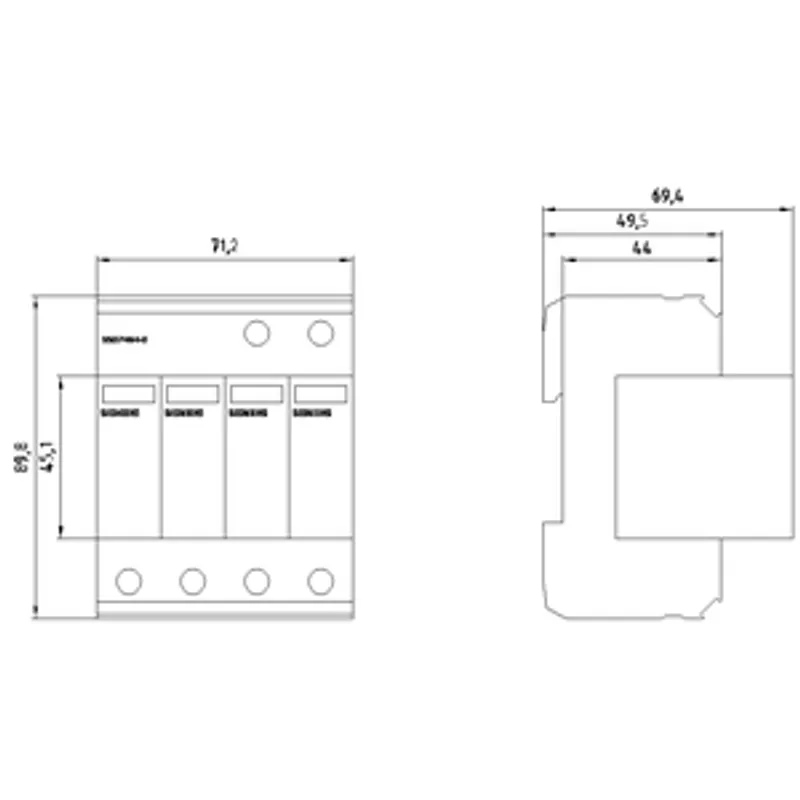

| width | 71.5 mm |
| height | 90 mm |
| depth | 71.5 mm |
Electrical data
| type of distribution system | TN-S, TT |
| operating voltage — at AC | 230 V |
| value range of the operating frequency | 50 / 60 Hz |
| continuous operating voltage — at AC maximum | 350 V |
| continuous operating voltage — between N and PE at AC maximum | 260 V |
| continuous operating voltage — between L and (PE)N at AC maximum | 350 V |
| apparent power consumption maximum | 450 mVA |
| discharge current at (8/20) µs | 20 kA |
| discharge current 1 phase at (8/20) µs maximum | 40 kA |
| follow current extinguishing capability — between N and PE | 100 A (260 V) |
| short-circuit rating (SCCR) at 264 V | 25 kA |
| protection level — between L and N maximum | 1.6 kV |
| protection level — between L and PE maximum | 1.9 kV |
| protection level — between N and L | 1.4 kV |
| protection level — between N and PE maximum | 1.5 kV |
| protection level — between PE and N and/or L | 1.5 kV |
| residual voltage — between L and (PE)N — at rated value of discharge current maximum | 1.6 kV |
| residual voltage — between L and (PE)N — at 10 kA maximum | 1.5 kV |
| residual voltage — between L and (PE)N — at 5 kA maximum | 1.3 kV |
| residual voltage — between L and (PE)N — at 3 kA maximum | 1.1 kV |
| residual voltage — between L and PE — at rated value of discharge current maximum | 1.9 kV |
| residual voltage — between L and PE — at 10 kA maximum | 1.5 kV |
| residual voltage — between L and PE — at 5 kA maximum | 1.3 kV |
| residual voltage — between L and PE — at 3 kA maximum | 1.2 kV |
| residual voltage — between N and PE — at rated value of discharge current maximum | 0.4 kV |
| residual voltage — between N and PE — at 10 kA maximum | 0.25 kV |
| residual voltage — between N and PE — at 5 kA maximum | 0.15 kV |
| residual voltage — between N and PE — at 3 kA maximum | 0.1 kV |
| response value of the surge voltage at 6 kV at (1.2/50) µs — between N and PE | 1.5 kV |
| response time between L and (PE)N | 25 ns |
| response time between N and PE | 100 ns |
| adjustable response factor of tripping current | 1.6 |
| fuse protection type at V-shaped connection | 80 A AC (gG) |
| fuse protection type for T-connector | 125 A AC (gG) |
| insulation resistance (Riso) | 1 000 MΩ |
Connections/ Terminals
| type of electrical connection | Screw terminal |
| stripped length | 16 mm |
| tightening torque | 4.3 ... 4.7 N·m |
| connectable conductor cross-section — for finely stranded conductor | 1.5 ... 25 mm² |
| connectable conductor cross-section — for rigid conductor | 1.5 ... 35 mm² |
| connectable conductor cross-section — finely stranded | 0.5 ... 25 mm² |
| AWG number as coded connectable conductor cross section | 15 ... 2 |
| design of the thread of the connection screw | M5 |
| signal design | Optical, remote signaling contact |
Indicator/remote signaling
| product component remote signaling contact | No |
NEMA/UL - Data
| type of distribution system | TN-S, TT |
| ambient temperature — during operation | -40 ... +80 °C |
| ambient temperature — during storage | -40 ... +80 °C |
| combustibility class according to UL 94 | V-0 |
