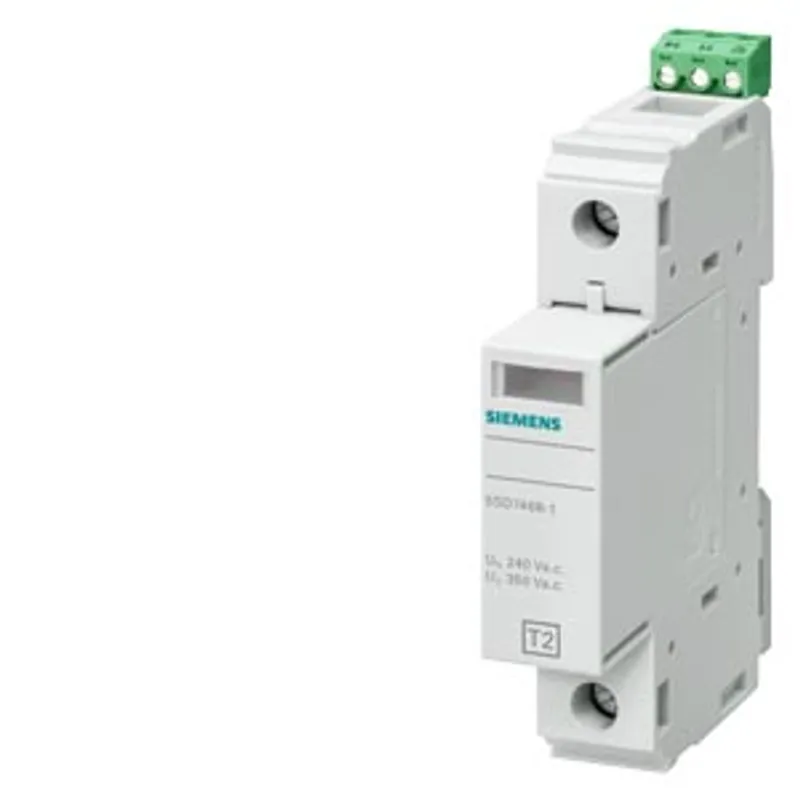

Siemens 5SD7461-1

Surge arrester type, 2, requirement class C, Uc 350 V, protective modules, plug-in, 1-pole, L-N circuit

MPN
5SD7461-1
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Siemens parts? We buy surplus →

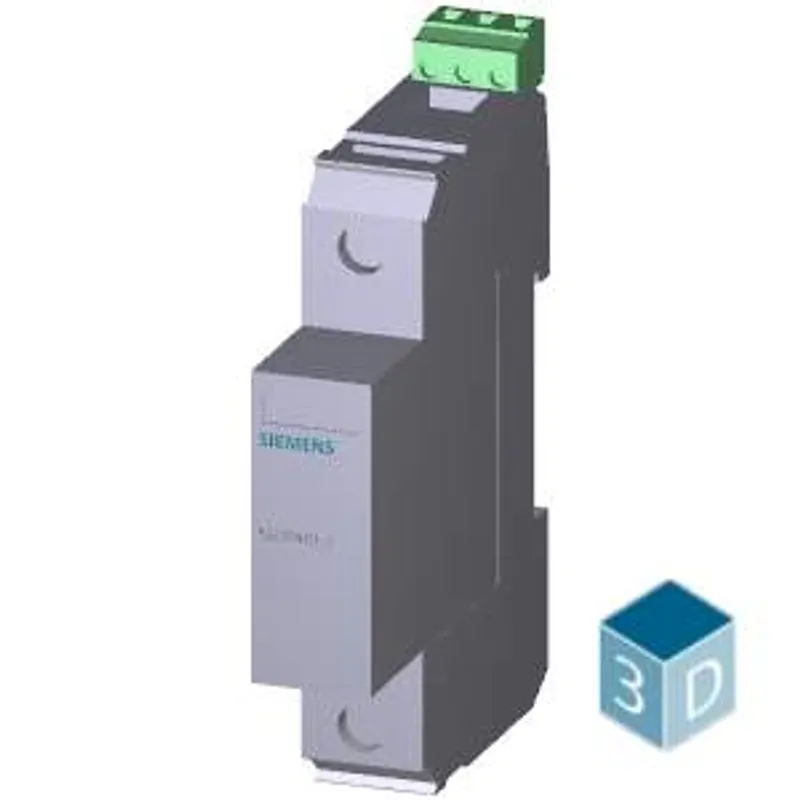

What is the Siemens 5SD7461-1?

surge arrester type, 2, requirement class C, Uc 350 V, protective modules, plug-in, 1-pole, L-N circuit, with remote display

Specifications

General data

standardIEC 61643-11: 2011, EN 61643-11: 2012
product designationSurge protection device
SPD classification according to EN 61643-11 — Test Class I, Type 1No
SPD classification according to EN 61643-11 — Test Class II, Type 2Yes
SPD classification according to EN 61643-11 — Test Class III, Type 3No
number of SPD ports1
design of the productSurge arrester
design of pole1
designation of the protective pathsL-PEN, L-N
accessories1 x 5SD7468-1
fastening methodTH35 DIN rail
material of the enclosurePA 6.6 / PBT
size of surge arrester1 MW
degree of pollution2
overvoltage category according to IEC 61010-1III
protection class IP at connection all terminalsIP20
shock acceleration25 gn
vibrational acceleration at 5 Hz ... 500 Hz limited to 2,5 h per axis5 gn
relative humidity during operation5 ... 95 %
installation altitude at height above sea level maximum2 000 m

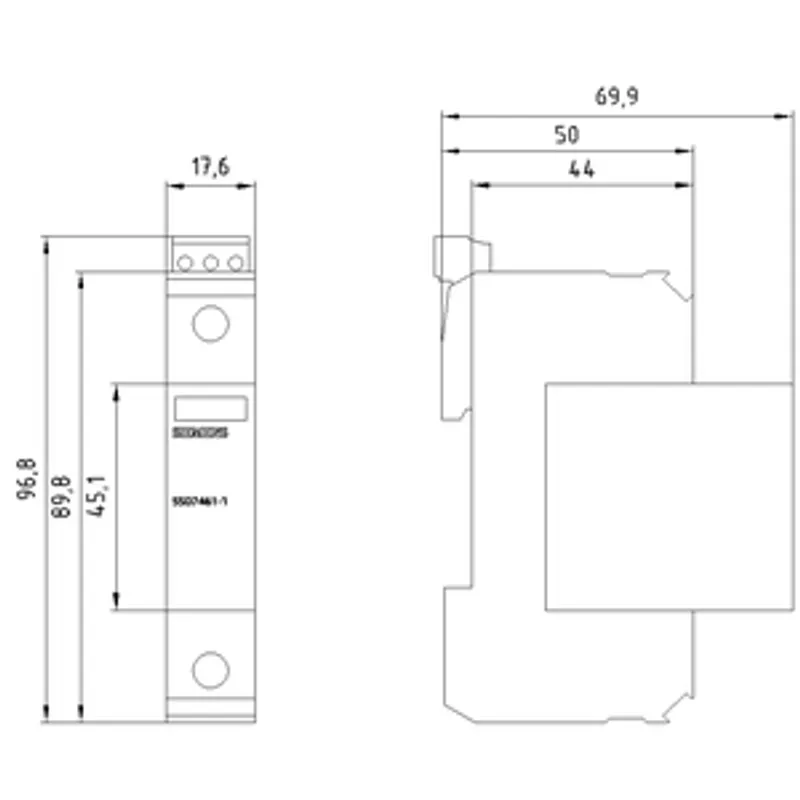

width17.8 mm
height97 mm
depth71.5 mm

Electrical data

type of distribution systemTN, TT
operating voltage — at AC230 V
value range of the operating frequency50 / 60 Hz
continuous operating voltage — at AC maximum350 V
apparent power consumption maximum150 mVA
discharge current at (8/20) µs20 kA
discharge current 1 phase at (8/20) µs maximum40 kA
short-circuit rating (SCCR) at 264 V25 kA
protection level1.4 kV
protection level — maximum1.5 kV
residual voltage — at rated value of discharge current maximum1.5 kV
residual voltage — at 10 kA maximum1.3 kV
residual voltage — at 5 kA maximum1.2 kV
residual voltage — at 3 kA maximum1.1 kV
Response time25 ns
adjustable response factor of tripping current1.6
fuse protection type at V-shaped connection80 A AC (gG)
fuse protection type for T-connector125 A AC (gG)

Connections/ Terminals

type of electrical connectionScrew terminal
stripped length16 mm
tightening torque4.3 ... 4.7 N·m
connectable conductor cross-section — for finely stranded conductor1.5 ... 25 mm²
connectable conductor cross-section — for rigid conductor1.5 ... 35 mm²
connectable conductor cross-section — finely stranded0.5 ... 25 mm²
AWG number as coded connectable conductor cross section15 ... 2
design of the thread of the connection screwM5
signal designOptical, remote signaling contact

Indicator/remote signaling

product component remote signaling contactYes
switching function of the remote signaling contactsPDT contact
operating voltage of the remote signaling contacts at AC5 ... 250 V
operational current of the remote signaling contacts at AC5 mA ... 1 A
connection type of remote signaling contactM2
connectable conductor cross-section for remote signaling contacts for rigid conductor0.14 ... 1.5 mm²
connectable conductor cross-section for remote signaling contacts for finely stranded conductor0.14 ... 1.5 mm²
AWG number as coded connectable conductor cross section for remote signaling contacts28 ... 16
tightening torque for remote signaling contacts0.25 N·m
stripped length of the cable for remote signaling contacts7 mm

NEMA/UL - Data

type of distribution systemTN, TT
ambient temperature — during operation-40 ... +80 °C
ambient temperature — during storage-40 ... +80 °C
combustibility class according to UL 94V-0

Downloads & documentation

Official documents from Siemens, downloaded directly from the manufacturer.

Data sheets & manuals

5SD7461-1: frequently asked questions

When can 5SD7461-1 be shipped?

5SD7461-1 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 5SD7461-1 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 5SD7461-1 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 5SD7461-1, subject to availability and destination.
