Siemens 5SD7444-8KK21
Combination arrester type 1+2 requirement class B+C, Uc 300 V, Iimp=12.5 kA 4-pole
- MPN
- 5SD7444-8KK21
- Category
- Basic devices
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via

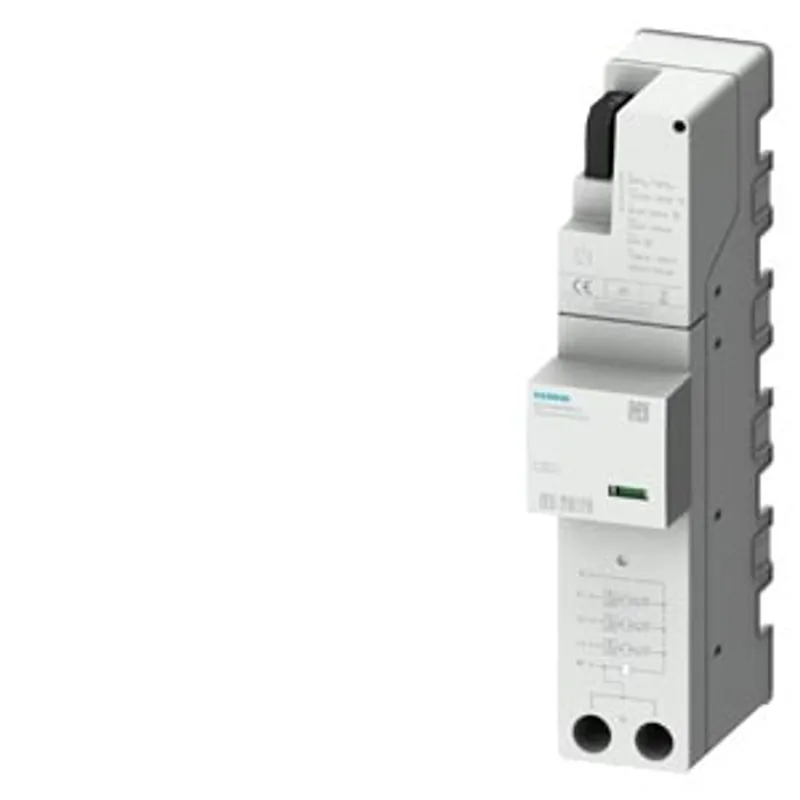

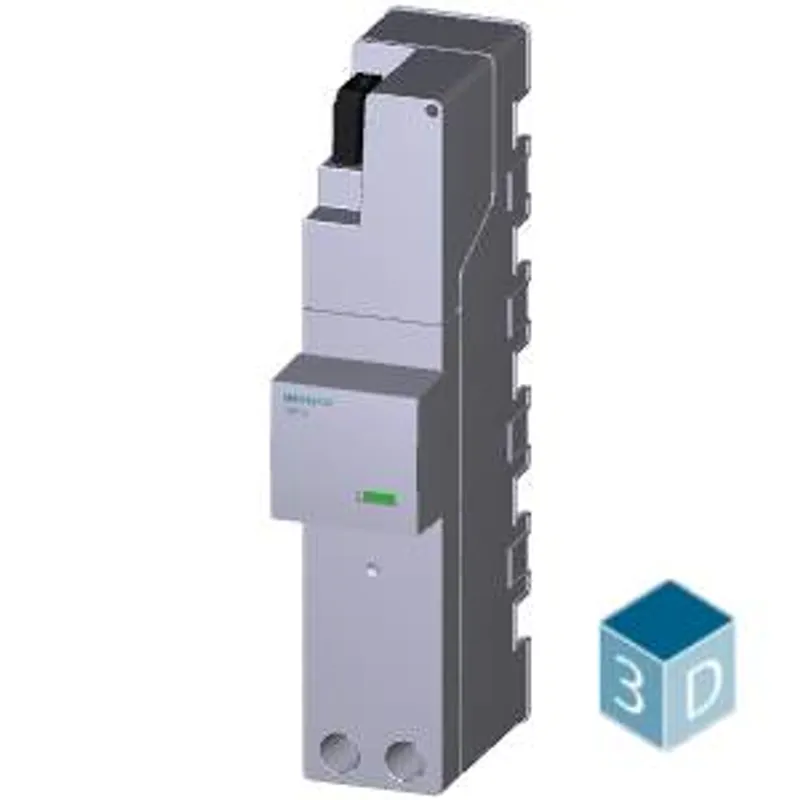

What is the Siemens 5SD7444-8KK21?
combination arrester type 1+2 requirement class B+C, Uc 300 V, Iimp=12.5 kA 4-pole, 3+1 circuit for TN-S and TT systems, for 40 mm busbar system with remote display
Specifications
General data
| standard | IEC 61643-11: 2011, EN 61643-11: 2012 |
| product designation | Surge protection device |
| SPD classification according to EN 61643-11 — Test Class I, Type 1 | Yes |
| SPD classification according to EN 61643-11 — Test Class II, Type 2 | Yes |
| SPD classification according to EN 61643-11 — Test Class III, Type 3 | Yes |
| number of SPD ports | 1 |
| design of the product | Arrester combination |
| design of pole | 3+N/PE |
| designation of the protective paths | L-N, N-PE |
| fastening method | busbar mounting 40 mm |
| material of the enclosure | Durethan |
| degree of pollution | 2 |
| overvoltage category according to IEC 61010-1 | II |
| protection class IP at connection all terminals | IP20 |
| shock acceleration | 30 gn |
| vibrational acceleration at 5 Hz ... 500 Hz limited to 2,5 h per axis | 4.96 gn |
| relative humidity during operation | 5 ... 95 % |
| installation altitude at height above sea level maximum | 4 000 m |

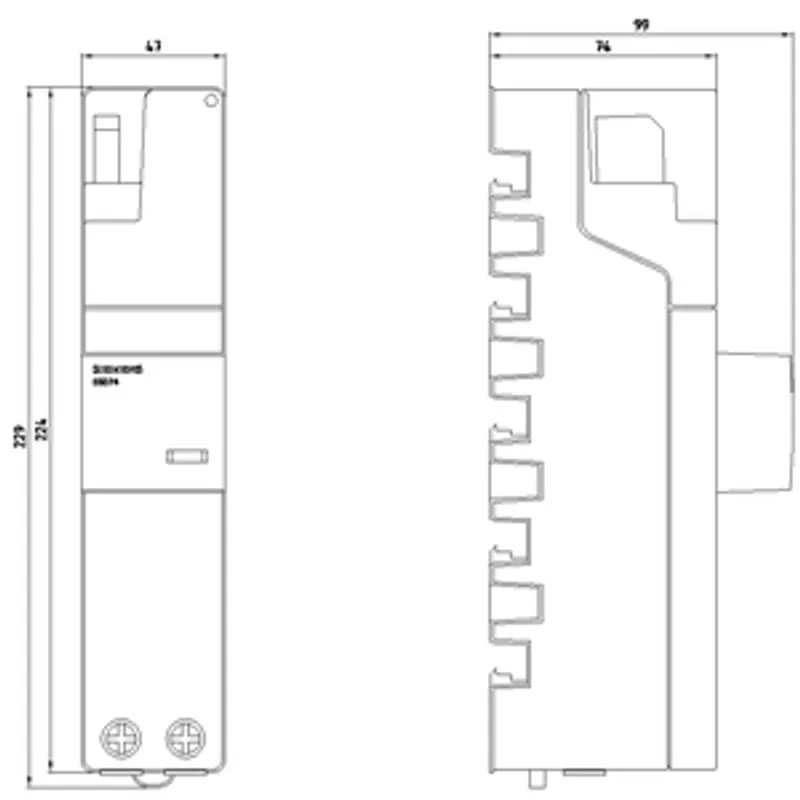

| width | 47 mm |
| height | 224 mm |
| depth | 74 mm |
Electrical data
| type of distribution system | TN-S, TT |
| operating voltage — at AC | 230 V |
| value range of the operating frequency | 50 / 60 Hz |
| continuous operating voltage — at AC maximum | 300 V |
| continuous operating voltage — between L and (PE)N at AC maximum | 300 V |
| apparent power consumption maximum | 1.5 mVA |
| discharge current at (8/20) µs | 20 kA |
| discharge current 1 phase at (8/20) µs maximum | 50 kA |
| discharge current — between L and (PE)N at (8/20) µs | 20 kA |
| discharge current — between N and PE at (8/20) µs | 100 kA |
| discharge current — between N and PE at (8/20) µs | 80 kA |
| lightning current peak value at (10/350) µs | 12.5 kA |
| lightning current peak value at (10/350) µs — lightning current peak value between N and PE | 50 kA |
| lightning current peak value at (10/350) µs — lightning current peak value between L and N | 12.5 kA |
| charge of the flash at (10/350) µs — charge of the flash between L and N | 6.25 A·s |
| charge of the flash at (10/350) µs — charge of the flash between N and PE | 25 A·s |
| specific energy of the flash at (10/350) µs — between L and N | 39 kJ/? |
| specific energy of the flash at (10/350) µs — between N and PE | 625 kJ/? |
| follow current extinguishing capability — between N and PE | 100 A |
| short-circuit rating (SCCR) at 264 V | 25 kA |
| protection level | 1.5 kV |
| protection level — maximum | 1.5 kV |
| protection level — between L and N maximum | 1.5 kV |
| protection level — between N and L | 1.5 kV |
| protection level — between N and PE maximum | 1.5 kV |
| protection level — between PE and N and/or L | 1.5 kV |
| residual voltage — at rated value of discharge current maximum | 1.5 kV |
| residual voltage — at 5 kA maximum | 1.1 kV |
| residual voltage — between L and (PE)N — at rated value of discharge current maximum | 1.5 kV |
| residual voltage — between L and (PE)N — at 5 kA maximum | 1.1 kV |
| residual voltage — between N and PE — at rated value of discharge current maximum | 1.5 kV |
| residual voltage — between N and PE — at 5 kA maximum | 1.1 kV |
| response value of the surge voltage at 6 kV at (1.2/50) µs | 1.5 kV |
| response value of the surge voltage at 6 kV at (1.2/50) µs — between L and N | 1.5 kV |
| response value of the surge voltage at 6 kV at (1.2/50) µs — between N and PE | 1.5 kV |
| Response time | 100 ns |
| response time between L and (PE)N | 100 ns |
| response time between N and PE | 100 ns |
| fuse protection type at V-shaped connection | 315 A AC (gG) |
| fuse protection type for T-connector | 315 A AC (gG) |
Connections/ Terminals
| type of electrical connection | plug-in technology for busbar 40 mm |
| tightening torque | 4.5 N·m |
| connectable conductor cross-section — for finely stranded conductor | 10 ... 25 mm² |
| connectable conductor cross-section — for rigid conductor | 10 ... 35 mm² |
| connectable conductor cross-section — finely stranded | 10 ... 25 mm² |
| AWG number as coded connectable conductor cross section | 12 ... 2 |
| design of the thread of the connection screw | M6 |
| signal design | Optical, remote signaling contact |
Indicator/remote signaling
| product component remote signaling contact | Yes |
| switching function of the remote signaling contacts | NO / NC |
| operating voltage of the remote signaling contacts at AC | 125 ... 250 V |
| operational current of the remote signaling contacts at AC | 1 mA |
| connection type of remote signaling contact | screwless /push in |
| connectable conductor cross-section for remote signaling contacts for rigid conductor | 0.25 ... 1.5 mm² |
| connectable conductor cross-section for remote signaling contacts for finely stranded conductor | 0.25 ... 1.5 mm² |
| AWG number as coded connectable conductor cross section for remote signaling contacts | 24 ... 16 |
| stripped length of the cable for remote signaling contacts | 12 mm |
NEMA/UL - Data
| type of distribution system | TN-S, TT |
| AWG number as coded connectable conductor cross section — for remote signaling contacts according to UL | 24 ... 16 |
| ambient temperature — during operation | -40 ... +85 °C |
| ambient temperature — during storage | -40 ... +80 °C |
| combustibility class according to UL 94 | V0 |
