ZBRM22BA0Wireless and battery less handy box, 1 double action and 1 simple action buttons
Schneider Electric ZBRRD
Programmable receiver, Harmony XB5R, 2 relays, 2 buttons, 6 indicating LEDs, monostable, bistable, 24...240V AC DC
- MPN
- ZBRRD
- EAN
- 3606480521164
Price and lead time confirmed within 1 business day
Discontinued by Schneider Electric — we can still source the original ZBRRD (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback

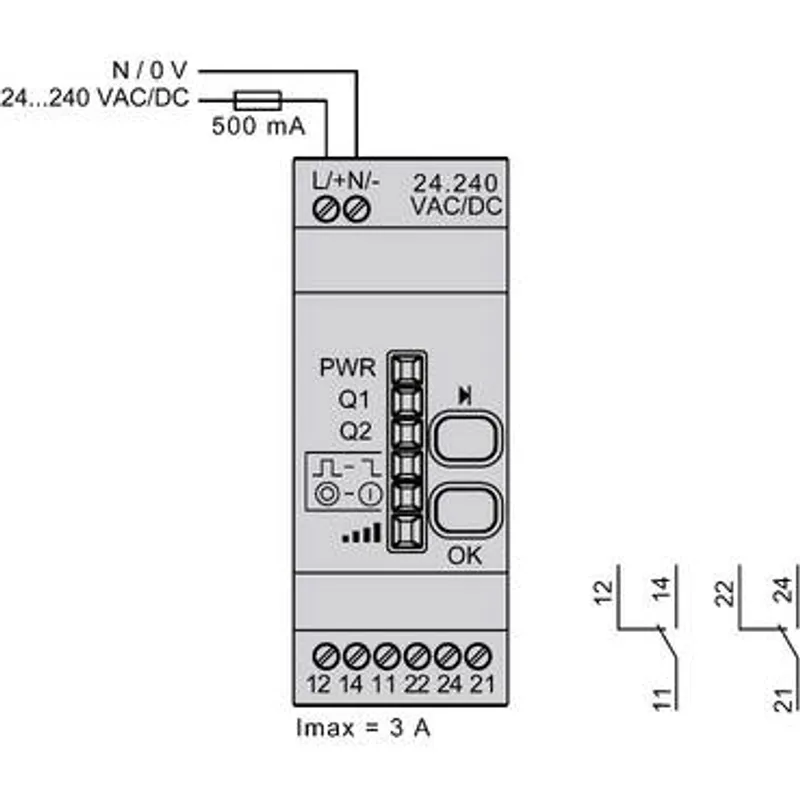

What is the Schneider Electric ZBRRD?
This programmable receiver is part of the range Harmony XB5R plastic and XB4R metal wireless and batteryless pushbuttons. It features a configurable receiver equipped with 2 buttons (teach and parameter setting), 6 indicating LEDs (power ON, function modes, output status, signal strength). It is supplied set to monostable output function and can be configured to bistable and stop/start functions. Its supply voltage is 24V to 240V AC/DC.
Specifications
Specifications
| Range of product | Harmony |
| Product or component type | Programmable receiver |
| Device short name | ZBRRD |
| Product specific application | Interface to actuators |
| Function of module | Bi-stable, Monostable |
| Reset time | 2 ms time delay |
| Transmission frequency | 2405 MHz |
| emission class | 5M00G7W |
| Antenna type | Omnidirectional |
| Nominal output current | 0.3 A at 48 V DC conforming to IEC 60947-5-1, 3 A at 24 V DC conforming to UL 508, 1.5 A at 240 V AC conforming to IEC 60947-5-1, 3 A at 120 V AC conforming to IEC 60947-5-1, 3 A at 240 V AC conforming to UL 508, 3 A at 24 V DC conforming to CSA C22.2 No 14, 3 A at 240 V AC conforming to CSA C22.2 No 14 |
| Output type | 2 relays |
| Output contacts | 2 C/O |
| Input output isolation | Galvanic isolation |
| Time delay range | 0.5 s (tolerance: - 15...15 %) |
| Switching capacity in VA | 1250 VA |
| Maximum switching current | 5 mA AC/DC |
| Maximum switching voltage | 250 V AC/DC |
| [Us] rated supply voltage | 24...240 V AC/DC 50/60 Hz - 10...10 % |
| Communication port protocol | Zigbee green power at 2.4 GHz conforming to IEEE 802.15.4 |
| Maximum sensing distance | 100 m in free field, 25 m transmitter in a plastic box type XAL D and receiver in a metal enclosure, 40 m transmitter in box type XAL D, receiver in metal enclosure and use relay-antenna |
| Response time | < 30 ms after transmitter clicks |
| Utilisation category | AC-15 : B300 conforming to IEC 60947-5-1, DC-12 conforming to IEC 60947-5-1 |
| Maximum power consumption in W | 4 W AC/DC |
| Breaking capacity | 750 VA |
| Control circuit frequency | 50...60 Hz +/- 10 % |
| Short-circuit protection | 0.4 A fuse type fast blow |
| Operating position | Any position without derating |
| Electrical connection | 1 conductor cable 0.14…2.5 mm² - AWG 26...AWG 14 - solid - without cable end conforming to IEC 60947-1, 2 conductors cable 0.14…1.5 mm² - AWG 26...AWG 16 - solid - without cable end conforming to IEC 60947-1, 1 conductor cable 0.14…4 mm² - AWG 26...AWG 12 - flexible - with cable end conforming to IEC 60947-1, 2 conductors cable 0.14…1.5 mm² - AWG 26...AWG 16 - flexible - with cable end conforming to IEC 60947-1 |
| Tightening torque | 0.5…1 N.m conforming to IEC 60947-1 |
| Housing material | Polycarbonate |
| Status LED | 1 LED green for power ON, 2 LEDs green for relay ON, 2 LEDs green for function mode, 1 LED green and yellow for reception signal |
| Mounting support | 35 mm symmetrical DIN rail conforming to IEC 60715, Mounting plate |
| Rated short-duration power frequency withstand voltage | 1.5 kV 50 Hz conforming to IEC 60947-5-1 |
| [Uimp] rated impulse withstand voltage | 4 kV |
| Surge withstand | 1 kV differential mode conforming to IEC 61000-4-5, 2 kV common mode conforming to IEC 61000-4-5 |
| Max power consumption in W | 1 mW |
| Number of channels | 1 |
| Modulation Technique | O-QPSK |
| Bandwidth | 5 MHz |
| Antenna gain | 0 dBi |

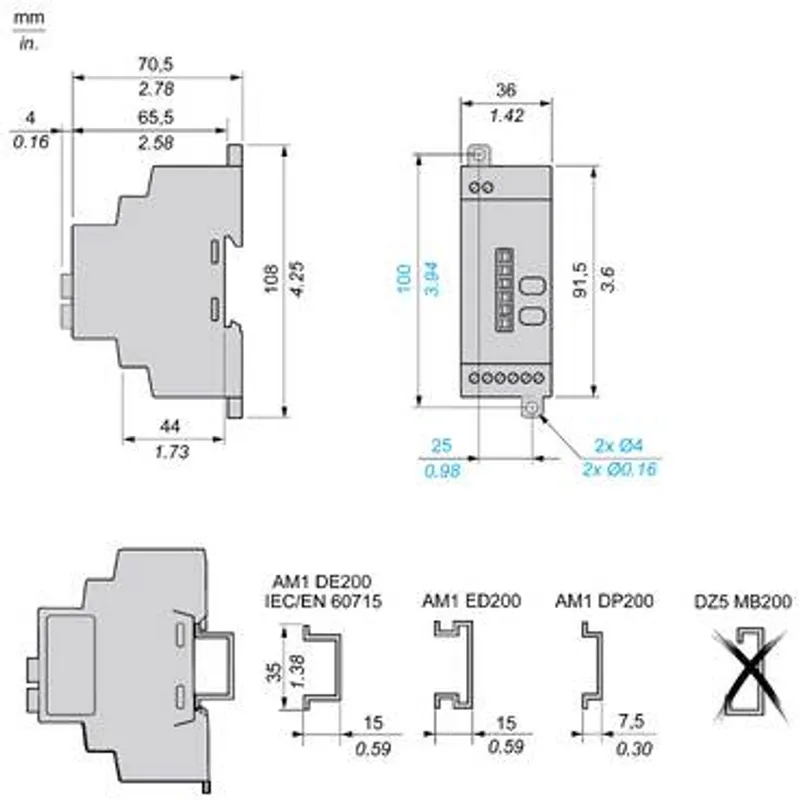

| Width | 36 mm |
| Height | 108 mm |
| Depth | 75 mm |
| Net weight | 0.13 kg |
| Standards | CSA C22.2 No 14, IEC 60947-5-1, UL 508, IEC 60947-1 |
| Radio agreement | RSS, SRRC, ANATEL, ARIB T66, FCC, ICASA |
| Product certifications | CCC, UL, GOST, CSA, C-Tick |
| Marking | CE |
| Ambient air temperature for storage | -40…70 °C |
| Relative humidity | 90 % at -20…55 °C, without condensation conforming to ETSI EN 300 440-1 |
| Vibration resistance | +/- 7.5 mm (f= 5…14 Hz) conforming to IEC 60068-2-6, 2 gn (f= 8…150 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 10 gn (duration = 16 ms) for 6000 shocks conforming to IEC 60068-2-27 |
| IP degree of protection | IP20 (casing) conforming to IEC 60529, IP20 (terminals) |
| Pollution degree | 2 conforming to IEC 60664-1 |
| Overvoltage category | II conforming to IEC 60664-1 |
| Insulation resistance | > 500 MOhm at 500 V DC conforming to NF C 20-030 |
| [Ui] rated insulation voltage | 250 V conforming to IEC 60664-1 |
| Electromagnetic compatibility | Immunity for industrial environments conforming to IEC 61000-6-2, Conducted and radiated emissions class B conforming to CISPR 22, Electrostatic discharge immunity test - test level: 8 kV (in free air (in insulating parts)) conforming to IEC 61000-4-2, Electrostatic discharge immunity test - test level: 6 kV (on contact (on metal parts)) conforming to IEC 61000-4-2, Susceptibility to electromagnetic fields - test level: 10 V/m (80...2000 MHz) conforming to IEC 61000-4-3, Susceptibility to electromagnetic fields - test level: 3 V/m (80...2700 MHz, distance = 20 m) conforming to IEC 61000-4-3, Electrical fast transient/burst immunity test - test level: 2 kV (relay wires) conforming to IEC 61000-4-4, Electrical fast transient/burst immunity test - test level: 2 kV (power supply wires) conforming to IEC 61000-4-4, 1.2/50 µs shock waves immunity test - test level: 1 kV (differential mode) conforming to IEC 61000-4-5, 1.2/50 µs shock waves immunity test - test level: 2 kV (common mode) conforming to IEC 61000-4-5, Conducted RF disturbances - test level: 10 V conforming to IEC 61000-4-6, Immunity to microbreaks and voltage drops - test level: 10 ms conforming to IEC 61000-4-11, Radiated emission conforming to ETSI EN 300 440-1, Conducted emission conforming to EN 300-489-1, Conducted emission conforming to ETSI EN 300 489-3, Radiated emission conforming to ETSI EN 300 440-2 |
| Electrical durability | 100000 cycles |
| Mechanical durability | 1000000 cycles |
Packaging
| Package 1 | 1 PCE, 9.7 cm × 7.9 cm × 4.5 cm (L × W × H), 138.0 g |
| Package 2 | 64 S03, 40.0 cm × 30.0 cm × 30.0 cm (L × W × H), 9.541 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
ZBRRD: frequently asked questions
Can I still buy the ZBRRD now that it is discontinued?
Yes. Schneider Electric has discontinued the ZBRRD, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time. If you are planning an upgrade instead, Schneider Electric names the ZBRRA as its successor — we can quote both.
When can ZBRRD be shipped?
ZBRRD is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up ZBRRD in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for ZBRRD and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for ZBRRD, subject to availability and destination.
