Schneider Electric ZBRP1

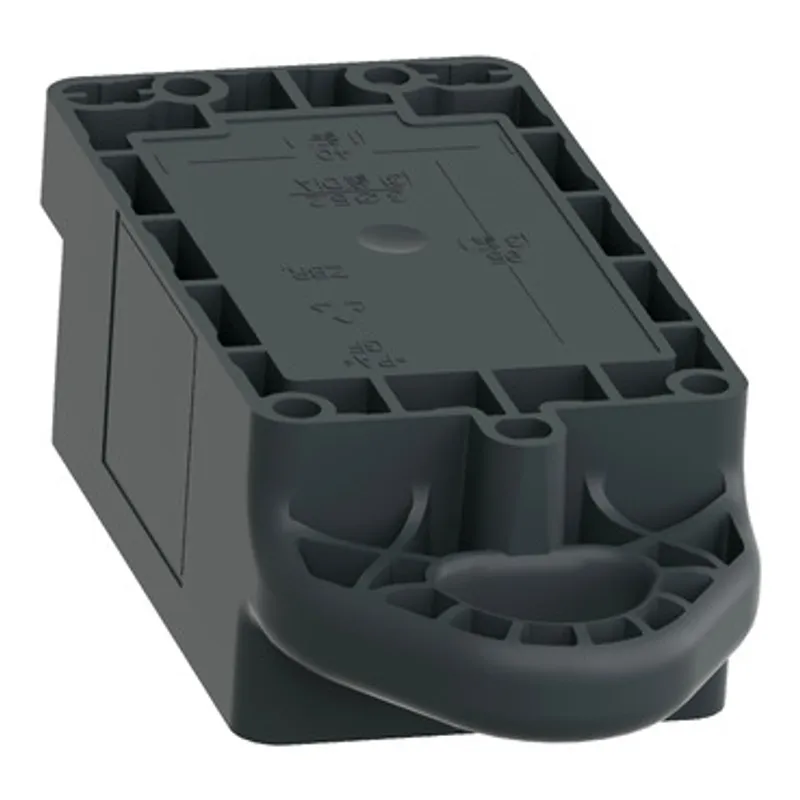

Rope pull switch with wireless and batteryless transmitter, Harmony XB5R, plastic black
- MPN
- ZBRP1
- EAN
- 3606480571732
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Schneider Electric ZBRP1?
This rope pull switch is part of the range Harmony XB5R plastic and XB4R metal wireless and batteryless pushbuttons. It features a rope pull switch with wireless and batteryless transmitter. Its pulling force is from 45N to 1000N. The rope pull switch is adapted for automatic doors. It sends a radio message to the receiver in the control panel to open and close the door. It operates with the protocol Zigbee green power 2.4 GHz in compliance with IEEE 802.15.4. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It weighs 150g.
Specifications
Specifications
| Range of product | Harmony XB5R |
| Product or component type | Wireless and batteryless transmitter |
| Device short name | ZBRP1 |
| Bezel material | Plastic |
| Transmission frequency | 2405 MHz |
| emission class | 5M00G7W |
| Antenna type | Omnidirectional |
| Number of channels | 1 |
| Antenna gain | 0 dBi |
| CAD overall height | 144 mm |
| CAD overall width | 56 mm |
| CAD overall depth | 38 mm |
| Net weight | 0.15 kg |
| Mechanical robustness | Free fall resistance 1 m conforming to EN/IEC 60068-2-31 |
| Standards | UL 508, EN/IEC 60947-1, EN/IEC 62479, EN/IEC 60947-5-1, EN/IEC 300328 |
| Radio agreement | ICASA, GITEKI |
| Communication port protocol | Zigbee green power at 2.4 GHz conforming to IEEE 802.15.4 |
| Maximum sensing distance | 100 m in free field |
| Emission power | 3 mW |
| Fixing mode | By screw: 1.8…2.2 N.m |
| Mounting mode | Between 2 ropes, Panel mount with universal support |
| Operating position | Any position |
| Ambient air temperature for storage | -40…70 °C |
| Ambient air temperature for operation | -25…70 °C |
| Relative humidity | 95 % without condensation |
| IP degree of protection | IP65 conforming to IEC 62262 |
| NEMA degree of protection | NEMA 4 |
| IK degree of protection | IK05 conforming to IEC 62262 |
| Mechanical durability | 1000000 cycles |
| Electromagnetic compatibility | Electrostatic discharge immunity test - test level: 8 kV (in free air (in insulating parts)), Susceptibility to electromagnetic fields - test level: 10 V/m (80...2000 MHz), Susceptibility to electromagnetic fields - test level: 6 V/m (2000...6000 MHz) |
| Product certifications | UL, GOST, CE, RCM, ANATEL, FCC, UKCA |
Packaging
| Package 1 | 1 PCE, 16.500 cm × 6.500 cm × 6.700 cm (L × W × H), 172.000 g |
| Package 2 | 32 S03, 40.000 cm × 30.000 cm × 30.000 cm (L × W × H), 6.259 kg |
