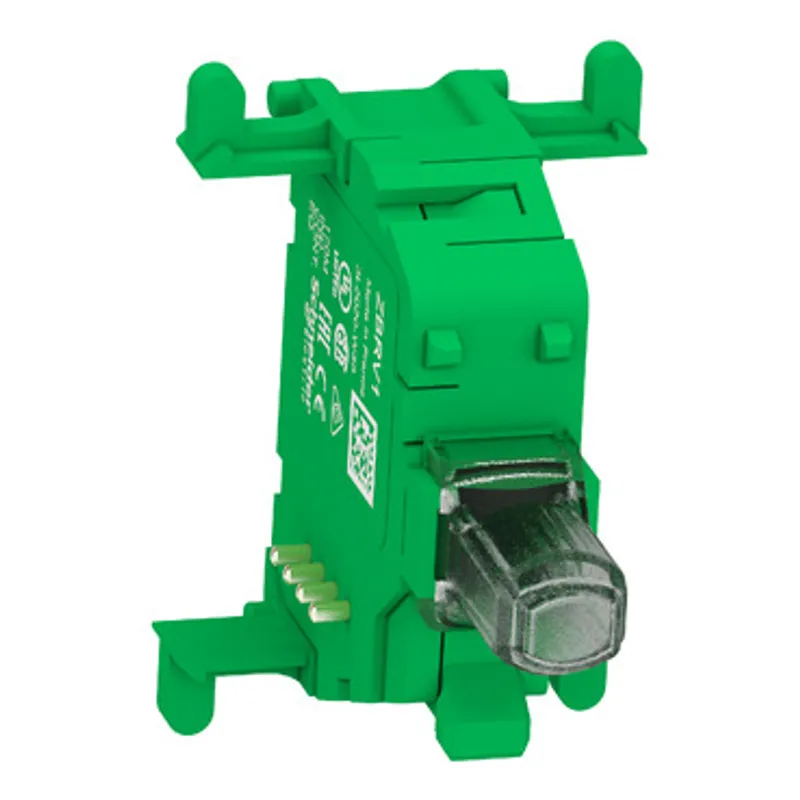

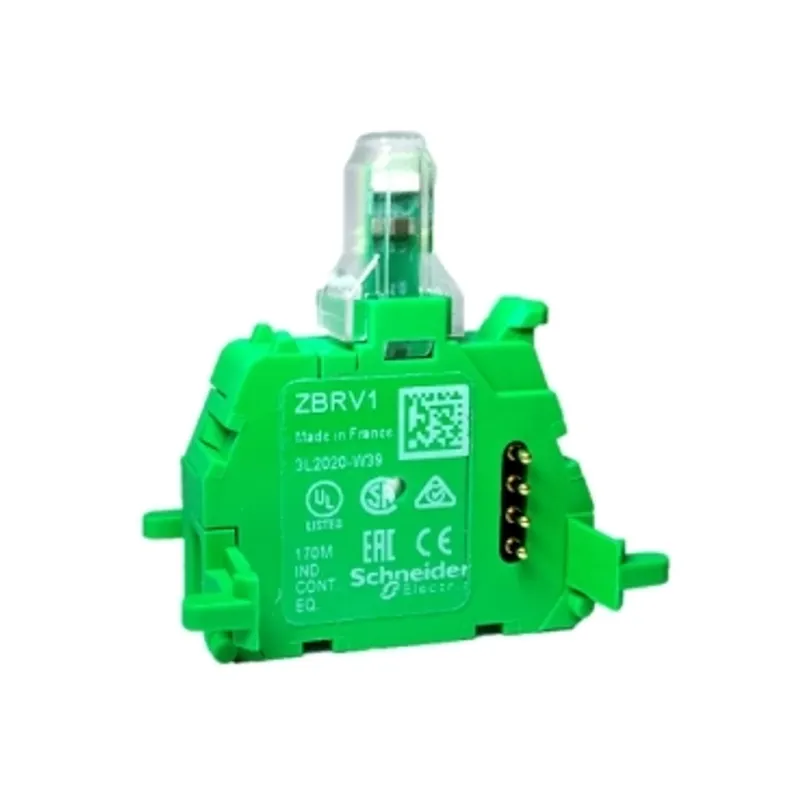

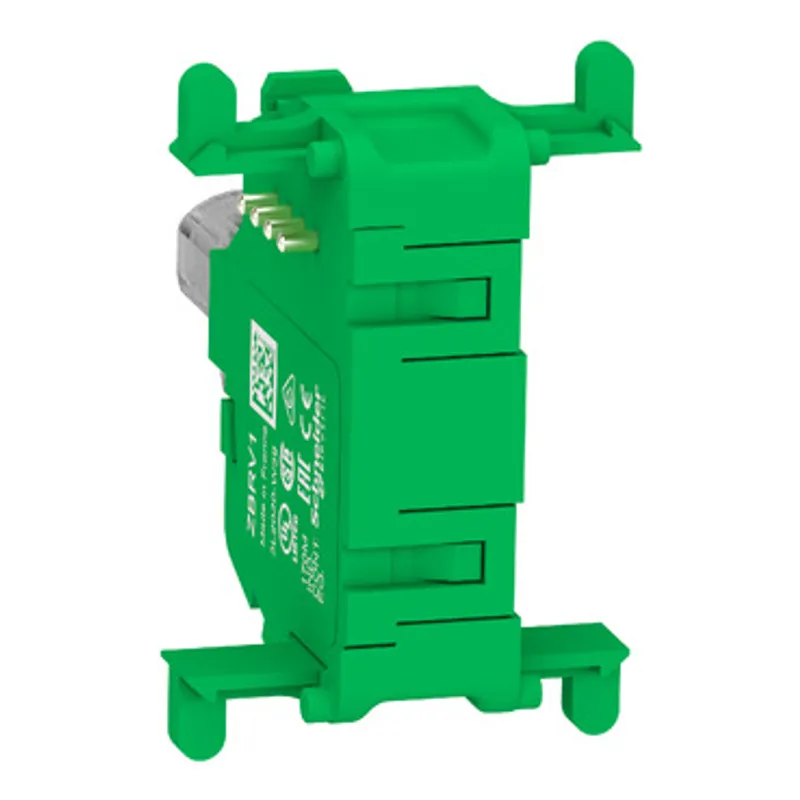

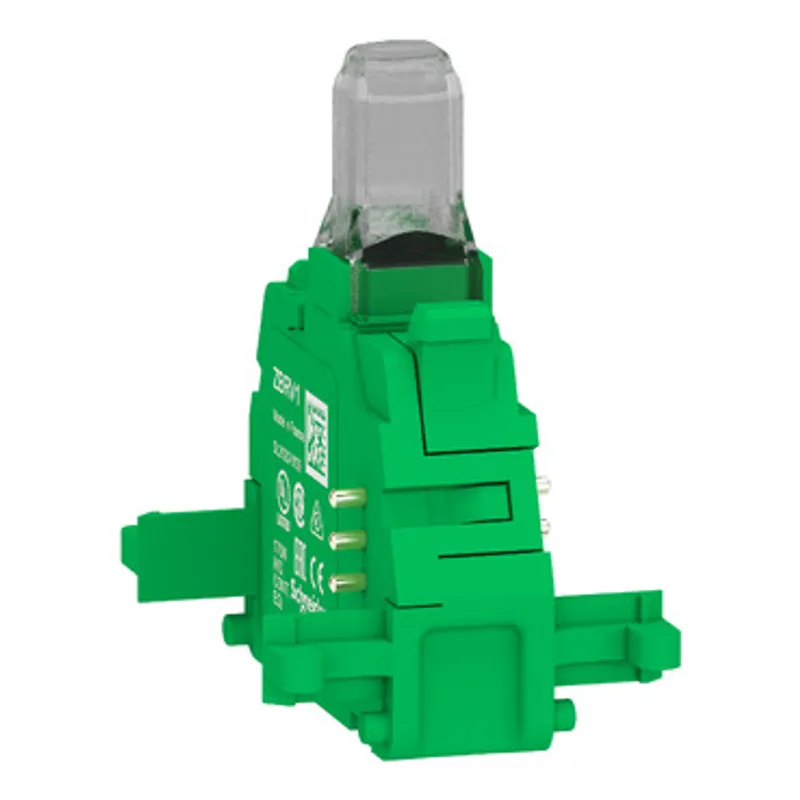

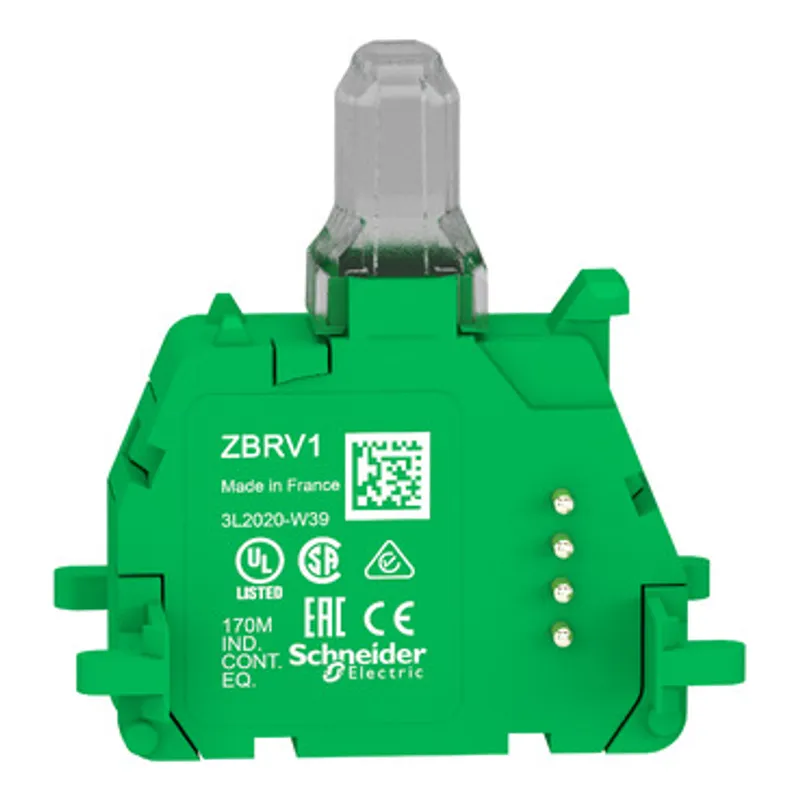

Schneider Electric ZBRV1
Visual feedback, Harmony XB5R, for use with ZBRT transmitters, for wireless and batteryless pushbutton
- MPN
- ZBRV1
- EAN
- 3606482035065
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Schneider Electric ZBRV1?
Compatible with all XB5 & XB4 actuators(not suitable for safety applications) Enables end users to considerably reduce installation and maintenance costs Suitable for the most demanding environments, depending on the model, up to IP 69, for external use from -40 to 70 °C Possibility to change frequency and highest cybersecurity level Satisfaction with optional feedback( illuminated actuators only) Visual feedback option to easily check functioning Wireless and batteryless pushbuttons including a transmitter equipped with fixing collar a spring return pushbutton head with cap attached
Specifications
Specifications
| Range of product | Harmony XB5R |
| Product or component type | Visual feedback |
| Device short name | XB5R |
| Light source colour | White |
| Product compatibility | ZBRRA - receiver (V2.2 and above), ZBRRC - receiver (V2.2 and above), ZBRRD - receiver (V2.2 and above), ZBRA1 - antenna (V3.3 and above), ZBRN1 - wireless access point (V3.32 and above), ZBRN2 - wireless access point (V3.32 and above) |
| Sale per indivisible quantity | 1 |
| [Us] rated supply voltage | 3 V with battery |
| Signalling type | Blinking |
| Light source | Protected LED |
| Bulb base | Integral LED |
| Light block supply | Direct |
| Embedding depth | 42 mm |
| CAD overall height | 37.4 mm |
| CAD overall width | 24.2 mm |
| CAD overall depth | 39.6 mm |
| Net weight | 0.009 kg |
| Standards | IEC 60947-1, IEC 60947-5-1 |
| Ambient air temperature for storage | -40…70 °C |
| Ambient air temperature for operation | -25…55 °C |
| Relative humidity | 95 % at 0…55 °C without condensation |
| Mechanical durability | 50000 cycles |
| Shock resistance | 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Vibration resistance | 5 gn (f= 11…500 Hz) conforming to IEC 60068-2-6, +/- 10 mm (f= 2…11 Hz) conforming to IEC 60068-2-6 |
| Electromagnetic compatibility | Electrostatic discharge immunity test - test level: 8 kV (in free air (in insulating parts)) conforming to IEC 61000-4-2, Electrostatic discharge immunity test - test level: 4 kV (on contact (on metal parts)) conforming to IEC 61000-4-2, Susceptibility to electromagnetic fields - test level: 10 V/m (80...1000 MHz) conforming to IEC 61000-4-3, Susceptibility to electromagnetic fields - test level: 3 V/m conforming to IEC 61000-4-3, Susceptibility to electromagnetic fields - test level: 3 V/m (1000...6000 MHz) conforming to IEC 61000-4-3 |
| Product certifications | CSA, UL listed, EAC |
Packaging
| Package 1 | 1 PCE, 5.2 cm × 4.3 cm × 3.3 cm (L × W × H), 17.0 g |
| Package 2 | 75 S01, 40.0 cm × 15.0 cm × 15.0 cm (L × W × H), 1.459 kg |
