Configurable receiver, Harmony XB5R, 2 relays, 2 buttons, 6 indicating LEDs, monostable, bistable, stop start, 24...240V AC DC

Name: Configurable receiver, Harmony XB5R, 2 relays, 2 buttons, 6 indicating LEDs, monostable, bistable, stop start, 24...240V AC DC
Brand: Schneider Electric
SKU: ZBRRA

MPN: ZBRRA · Brand: Schneider Electric

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Harmony Wireless Push buttons & Ecosystem
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	0.13 kg

Shipping & availability

When can ZBRRA be shipped?

ZBRRA is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up ZBRRA in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for ZBRRA and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for ZBRRA, subject to availability and destination.

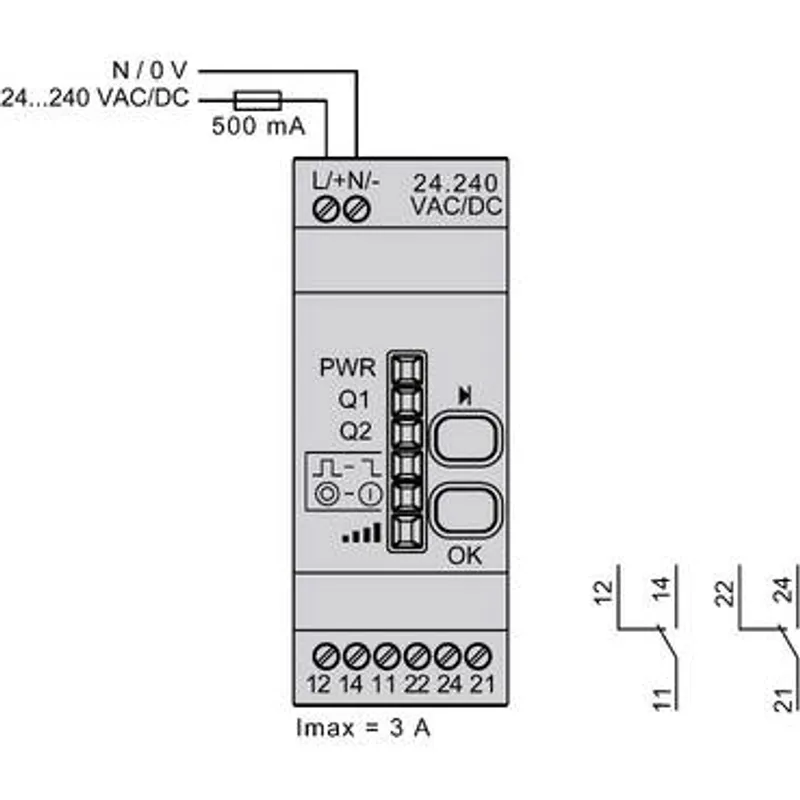

This programmable receiver is part of the range Harmony XB5R plastic and XB4R metal wireless and batteryless pushbuttons. It features a configurable receiver equipped with 2 buttons (teach and parameter setting), 6 indicating LEDs (power ON, function modes, output status, signal strength). It is supplied set to monostable output function and can be configured to bistable and stop/start functions. It features 2 relay outputs type RT 3A. Its supply voltage is 24V to 240V AC/DC. It weighs 130g.

Specifications

Range of product	Harmony
Product or component type	Programmable receiver
Device short name	ZBRRA
Product specific application	Interface to actuators
Function of module	Bi-stable, Monostable, Stop/start
Reset time	2 ms time delay
Transmission frequency	2405 MHz
emission class	5M00G7W
Antenna type	Omnidirectional
Nominal output current	0.3 A at 48 V DC conforming to IEC 60947-5-1, 3 A at 24 V DC conforming to UL 508, 1.5 A at 240 V AC conforming to IEC 60947-5-1, 3 A at 120 V AC conforming to IEC 60947-5-1, 3 A at 240 V AC conforming to UL 508, 3 A at 24 V DC conforming to CSA C22.2 No 14, 3 A at 240 V AC conforming to CSA C22.2 No 14
Output type	2 relays
Output contacts	2 C/O
Input output isolation	Galvanic isolation
Time delay range	0.5 s (tolerance: - 15...15 %)
Switching capacity in VA	1250 VA
Maximum switching current	5 mA AC/DC
Maximum switching voltage	250 V AC/DC
[Us] rated supply voltage	24...240 V AC/DC 50/60 Hz - 10...10 %
Communication port protocol	Zigbee green power at 2.4 GHz conforming to IEEE 802.15.4
Maximum sensing distance	100 m in free field, 25 m transmitter in a plastic box type XAL D and receiver in a metal enclosure, 40 m transmitter in box type XAL D, receiver in metal enclosure and use relay-antenna
Response time	< 30 ms after transmitter clicks
Utilisation category	AC-15 : B300 conforming to IEC 60947-5-1, DC-12 conforming to IEC 60947-5-1
Maximum power consumption in W	4 W AC/DC
Breaking capacity	750 VA
Control circuit frequency	50...60 Hz +/- 10 %
Short-circuit protection	0.4 A fuse type fast blow
Operating position	Any position without derating
Electrical connection	1 conductor cable 0.14…2.5 mm² - AWG 26...AWG 14 - solid - without cable end conforming to IEC 60947-1, 2 conductors cable 0.14…1.5 mm² - AWG 26...AWG 16 - solid - without cable end conforming to IEC 60947-1, 1 conductor cable 0.14…4 mm² - AWG 26...AWG 12 - flexible - with cable end conforming to IEC 60947-1, 2 conductors cable 0.14…1.5 mm² - AWG 26...AWG 16 - flexible - with cable end conforming to IEC 60947-1
Tightening torque	0.5…1 N.m conforming to IEC 60947-1
Housing material	Polycarbonate
Status LED	1 LED green for power ON, 2 LEDs green for relay ON, 2 LEDs green for function mode, 1 LED green and yellow for reception signal
Mounting support	35 mm symmetrical DIN rail conforming to IEC 60715, Mounting plate
Rated short-duration power frequency withstand voltage	1.5 kV 50 Hz conforming to IEC 60947-5-1
[Uimp] rated impulse withstand voltage	4 kV
Surge withstand	1 kV differential mode conforming to IEC 61000-4-5, 2 kV common mode conforming to IEC 61000-4-5
Max power consumption in W	1 mW
Number of channels	1
Modulation Technique	O-QPSK
Bandwidth	5 MHz
Antenna gain	0 dBi

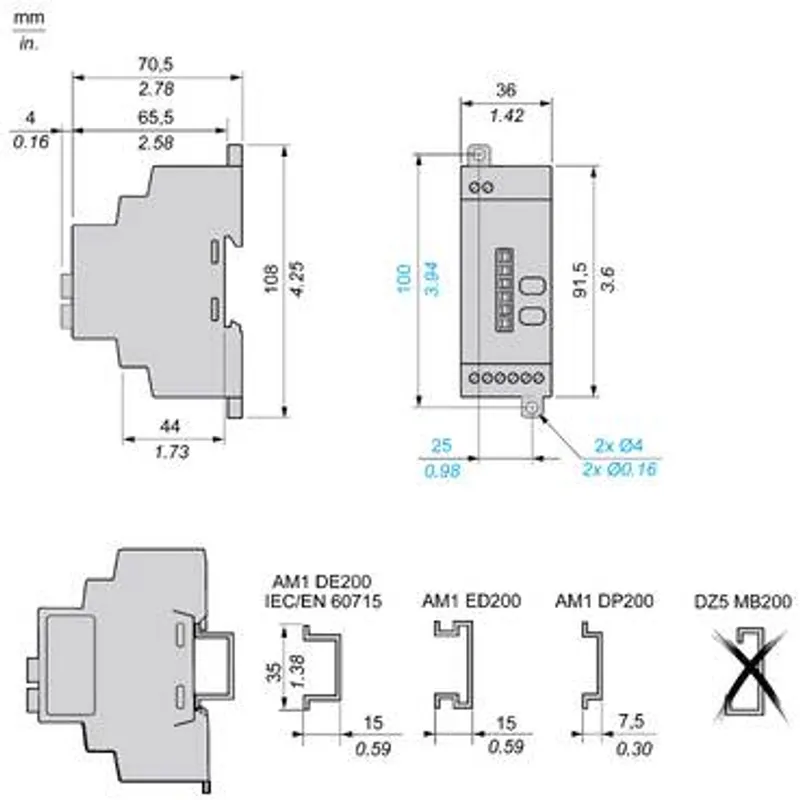

Width	36 mm
Height	108 mm
Depth	75 mm
Net weight	0.13 kg
Standards	CSA C22.2 No 14, UL 508, IEC 60947-5-1, IEC 60947-1
Radio agreement	RSS, SRRC, ANATEL, ARIB T66, FCC, ICASA
Product certifications	C-Tick, CCC, CSA, UL, GOST
Marking	CE
Ambient air temperature for storage	-40…70 °C
Relative humidity	90 % at -20…55 °C, without condensation conforming to ETSI EN 300 440-1
Vibration resistance	+/- 7.5 mm (f= 5…14 Hz) conforming to IEC 60068-2-6, 2 gn (f= 8…150 Hz) conforming to IEC 60068-2-6
Shock resistance	10 gn (duration = 16 ms) for 6000 shocks conforming to IEC 60068-2-27
IP degree of protection	IP20 (casing) conforming to IEC 60529, IP20 (terminals)
Pollution degree	2 conforming to IEC 60664-1
Overvoltage category	II conforming to IEC 60664-1
Insulation resistance	> 500 MOhm at 500 V DC conforming to NF C 20-030
[Ui] rated insulation voltage	250 V conforming to IEC 60664-1
Electromagnetic compatibility	Immunity for industrial environments conforming to IEC 61000-6-2, Conducted and radiated emissions class B conforming to CISPR 22, Electrostatic discharge immunity test - test level: 8 kV (in free air (in insulating parts)) conforming to IEC 61000-4-2, Electrostatic discharge immunity test - test level: 6 kV (on contact (on metal parts)) conforming to IEC 61000-4-2, Susceptibility to electromagnetic fields - test level: 10 V/m (80...2000 MHz) conforming to IEC 61000-4-3, Susceptibility to electromagnetic fields - test level: 3 V/m (80...2700 MHz, distance = 20 m) conforming to IEC 61000-4-3, Electrical fast transient/burst immunity test - test level: 2 kV (relay wires) conforming to IEC 61000-4-4, Electrical fast transient/burst immunity test - test level: 2 kV (power supply wires) conforming to IEC 61000-4-4, 1.2/50 µs shock waves immunity test - test level: 1 kV (differential mode) conforming to IEC 61000-4-5, 1.2/50 µs shock waves immunity test - test level: 2 kV (common mode) conforming to IEC 61000-4-5, Conducted RF disturbances - test level: 10 V conforming to IEC 61000-4-6, Immunity to microbreaks and voltage drops - test level: 10 ms conforming to IEC 61000-4-11, Radiated emission conforming to ETSI EN 300 440-1, Conducted emission conforming to EN 300-489-1, Conducted emission conforming to ETSI EN 300 489-3, Radiated emission conforming to ETSI EN 300 440-2
Electrical durability	100000 cycles
Mechanical durability	1000000 cycles
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	4.6 cm
Package 1 Width	8 cm
Package 1 Length	9.6 cm
Package 1 Weight	138 g
Unit Type of Package 2	S03
Number of Units in Package 2	64
Package 2 Height	30 cm
Package 2 Width	30 cm
Package 2 Length	40 cm
Package 2 Weight	9.479 kg
Warranty (in months)	18
