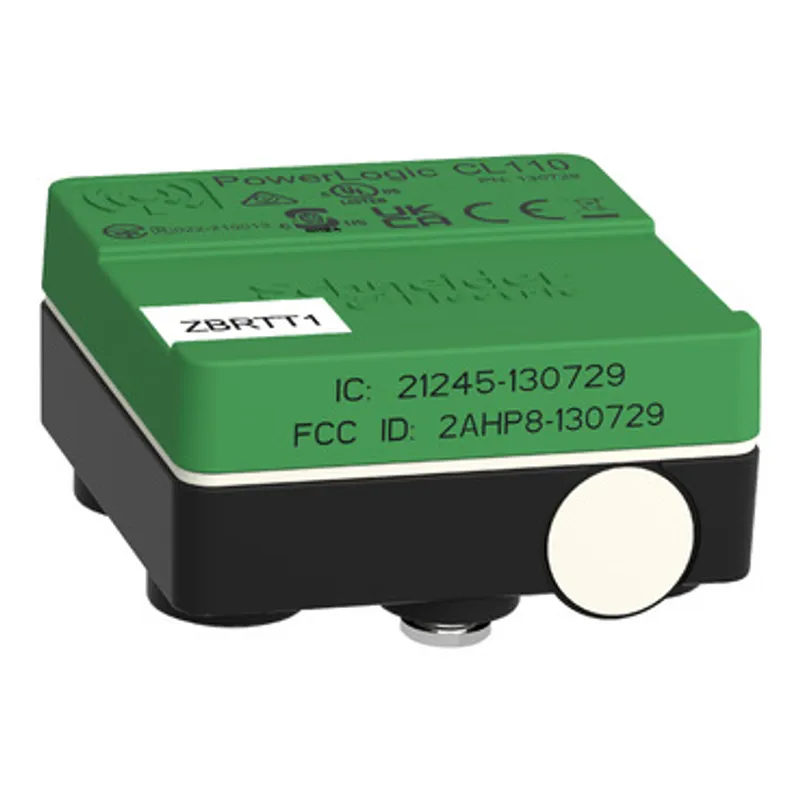

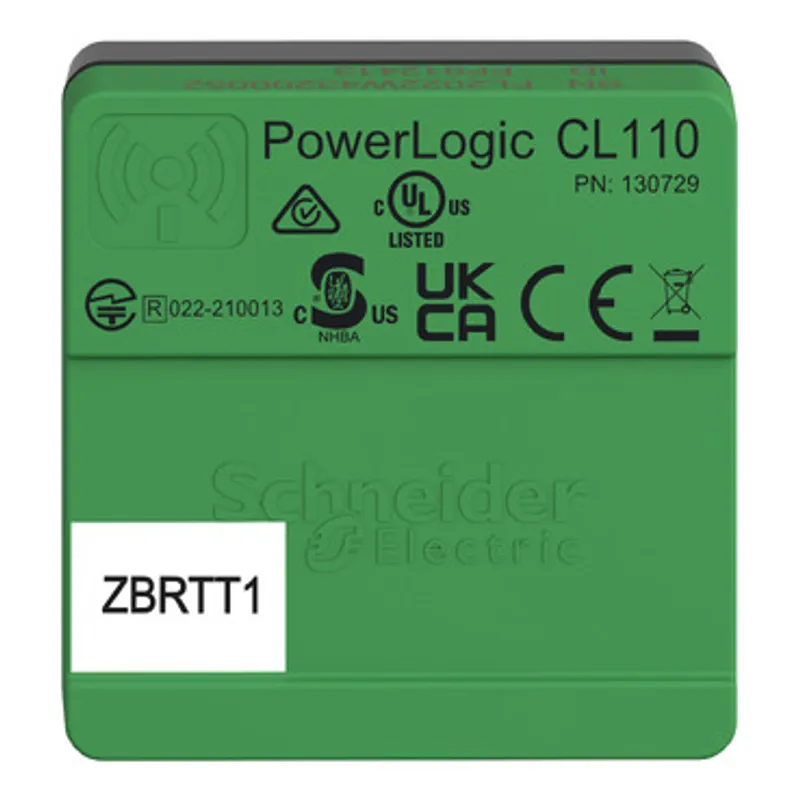

Schneider Electric ZBRTT1
Wireless transmitter, Harmony XB5R, Transmitter components for wireless temperature sensors, green, 2400MHz
- MPN
- ZBRTT1
- EAN
- 3606481808073
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Schneider Electric ZBRTT1?
This Harmony XB5R range is a It is a green premium product and conforms to international standard and certifications.
Specifications
Specifications
| Range of product | Harmony XB5R |
| Product or component type | Wireless transmitter |
| Device short name | XB5R |
| Transmission frequency | 2400 MHz |
| Antenna type | Omnidirectional |
| Max power consumption in W | 60 mW |
| Number of channels | 16 |
| Modulation Technique | O-QPSK |
| Bandwidth | 5 MHz |
| Antenna gain | 0 dBi |
| CAD overall height | 21 mm |
| CAD overall width | 40 mm |
| CAD overall depth | 40 mm |
| Net weight | 0.034 kg |
| Measurement temperature | 90 °C |
| Mechanical robustness | Free fall resistance 1000 mm conforming to IEC 60068-2-32 |
| Standards | IEC 61010-1, UL 61010-1, IEEE 802.15.4 |
| Radio agreement | ANATEL, ARIB T66, FCC, ICASA, RSS, SRRC |
| Communication port protocol | Zigbee green power at 2.4 GHz conforming to IEEE 802.15.4 |
| Maximum sensing distance | 100 m in free field, 25 m transmitter in a plastic box type XAL D and receiver in a metal enclosure, 10 m transmitter in box type XAL D, receiver in metal enclosure and use relay-antenna |
| Acquisition time | 2 ms |
| Response time | < 2 ms |

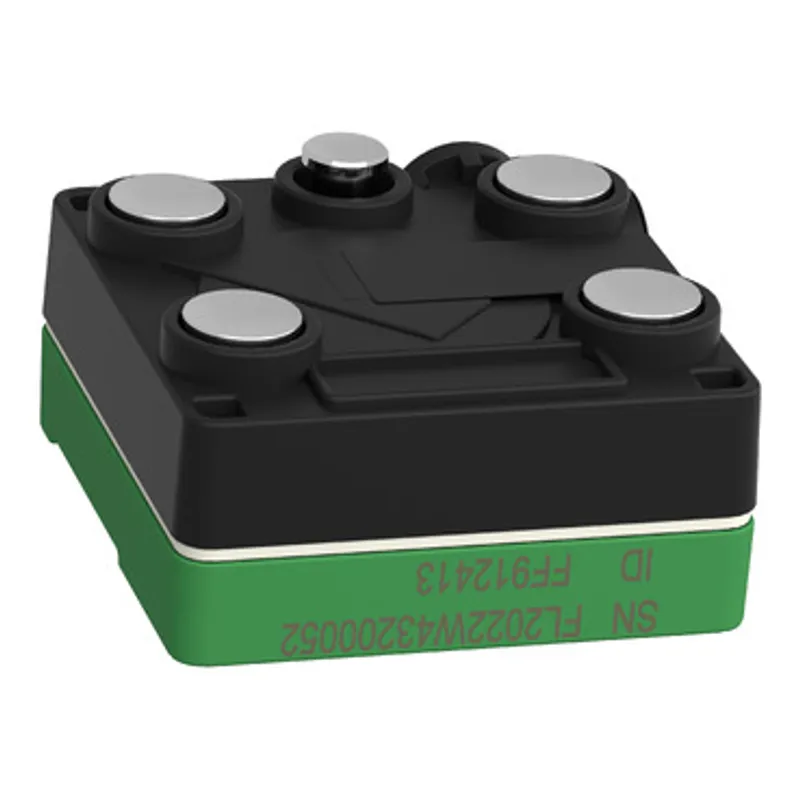

| Fixing mode | Magnetic fixing |
| Mounting mode | Magnetic |
| Electrical composition code | PW1 |
| Ambient air temperature for storage | -40…70 °C |
| Ambient air temperature for operation | -40…70 °C |
| Relative humidity | 10…95 % at -40…70 °C |
| IP degree of protection | IP54 conforming to IEC 60529 |
| IK degree of protection | IK06 conforming to IEC 62262 |
| Shock resistance | 40 gn (duration = 6 ms) for 3 shocks conforming to IEC 60068-2-27, 20 gn (duration = 16 ms) for 1000 shocks conforming to IEC 60068-2-27, 10 gn (duration = 11 ms) for 3 shocks conforming to IEC 60068-2-27 |
| Vibration resistance | 2 gn (f= 5…200 Hz) conforming to IEC 60068-2-6, 4 gn (f= 200…500 Hz) conforming to IEC 60068-2-6, 1 gn (f= 10…2000 Hz) conforming to IEC 60068-2-64, 1 gn (f= 5…500 Hz) conforming to IEC 60068-2-6 |
| Electromagnetic compatibility | Susceptibility to electromagnetic fields - test level: 25 V/m (80 MHz...6 GHz) conforming to IEC 61000-4-3, Susceptibility to conducted disturbances - test level: 20 V (0.15...80 MHz) conforming to IEC 61000-4-6, Electromagnetic field immunity test - test level: 1000 A/m (pulsed) conforming to IEC 61000-4-8, Electromagnetic field immunity test - test level: 300 A/m (continuous) conforming to IEC 61000-4-8, Electromagnetic field immunity test - test level: 1000 A/m (pulsed) conforming to EN/IEC 61000-4-9, Damped oscillatory wave - test level: 3 kV conforming to IEC 61000-4-10, Damped oscillatory wave - test level: 2.5 kV conforming to EN/IEC 61000-4-18, Surge immunity test conforming to EN/IEC 61000-4-18, Surge immunity test (common mode) conforming to IEC 61000-4-5, Immunity to conducted RF disturbances - test level: 30 V (differential mode) conforming to IEC 61000-4-5, Immunity to conducted RF disturbances (continuous) conforming to IEC 61000-4-16, Immunity to conducted RF disturbances - test level: 300 V, Immunity to conducted RF disturbances (short term) conforming to IEC 61000-4-16 |
| Product certifications | CSA, CCC, UL, GOST, C-Tick, BT 2006/95/EC |
| Directives | 2004/108/EC - electromagnetic compatibility, 1999/5/EC - R&TTE directive |
Packaging
| Package 1 | 1 PCE, 9.0 cm × 4.5 cm × 4.5 cm (L × W × H), 62.0 g |
| Package 2 | 100 S03, 40.0 cm × 30.0 cm × 30.0 cm (L × W × H), 6.569 kg |
