Schneider Electric VW3A31404

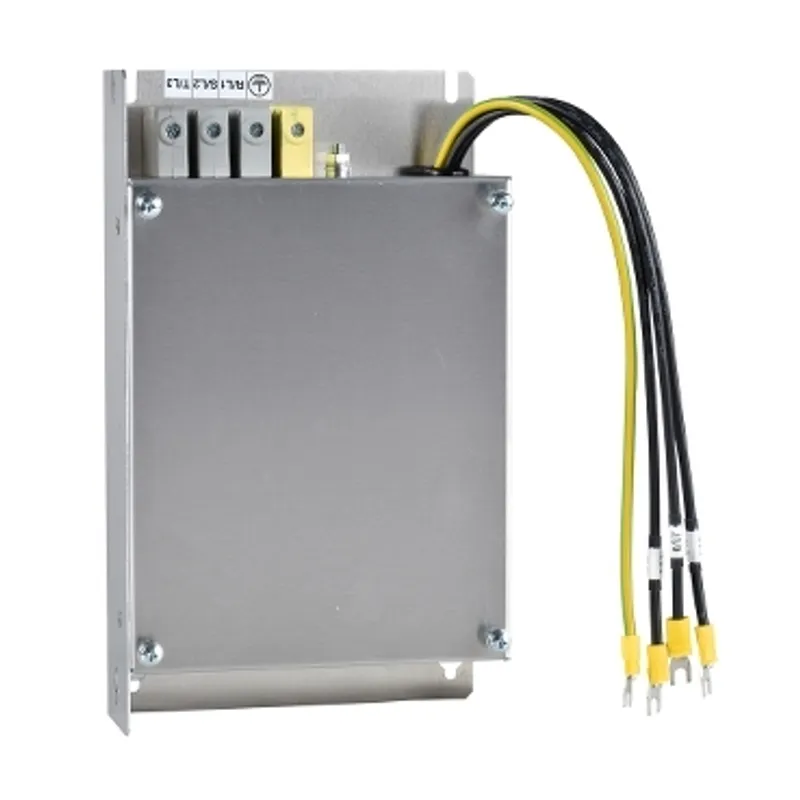

Additionnal EMC input filter - 3-phase supply - 15 A
- MPN
- VW3A31404
- EAN
- 3389110689464
- Category
- Altivar 31
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Schneider Electric VW3A31404?
This EMC filter is an option for variable speed drives of Altivar range and servo drives of Lexium range. Its rated current is equal to 15A. It is used to reduce conducted emissions on the line supply below the limits of standards EN 55011 group 1, class A or B, and IEC/EN 61800-3 category C1, C2 or C3. Its protection index is IP20. It weighs 1kg. This additional EMC filter can only be used on TN (neutral connection) and TT (earthed neutral) type systems. It can be mounted beside or under the drive. The drive's power supply is then connected directly via the filter output cable.
Specifications
Specifications
| Range of product | Altivar |
| Product or component type | EMC input filter |
| Range compatibility | Altivar 31C, Lexium 23 Plus, Altivar 312, Altivar 312 Solar, Altivar Machine ATV320, Lexium 05, Altivar 212 |
| Product compatibility | Servo drive LXM23 motor: 0.75 kW, Servo drive LXM23 motor: 1 kW, Servo drive LXM23 motor: 1.5 kW, Servo drive LXM23 motor: 2 kW, Servo drive LXM23 motor: 3 kW, ATV212H075M3X, ATV212H075N4, ATV212HU15M3X, ATV212HU15N4, ATV212HU22M3X, ATV212HU22N4, ATV31C037N4, ATV31C055N4, ATV31C075N4, ATV31CU11N4, ATV31CU15N4, LXM05AD14N4, LXM05AD17M3X, LXM05BD14N4, LXM05BD17M3X, LXM05CD14N4, ATV312HU11M3, ATV312HU15M3, ATV312HU22M3, ATV312H037N4, ATV312H055N4, ATV312H075N4, ATV312HU11N4, ATV312HU15N4, Variable speed drive ATV320...C motor: 0.37 kW, 380...500 V three phase, Variable speed drive ATV320...C motor: 0.55 kW, 380...500 V three phase, Variable speed drive ATV320...C motor: 0.75 kW, 380...500 V three phase, Variable speed drive ATV320...C motor: 1.1 kW, 380...500 V three phase, Variable speed drive ATV320...C motor: 1.5 kW, 380...500 V three phase, Variable speed drive ATV320...C motor: 1.1 kW, 200...240 V three phase, Variable speed drive ATV320...C motor: 1.5 kW, 200...240 V three phase, Variable speed drive ATV320...C motor: 2.2 kW, 200...240 V three phase, Variable speed drive ATV320...W/ATV320...WS motor: 0.37 kW, 380...500 V three phase, Variable speed drive ATV320...W/ATV320...WS motor: 0.55 kW, 380...500 V three phase, Variable speed drive ATV320...W/ATV320...WS motor: 0.75 kW, 380...500 V three phase, Variable speed drive ATV320...W/ATV320...WS motor: 1.1 kW, 380...500 V three phase, Variable speed drive ATV320...W/ATV320...WS motor: 1.5 kW, 380...500 V three phase |
| Product specific application | Radio interference input filter |
| [In] rated current | 15 A |
| Thermal losses | 0.13 W for ATV21H075N4, 0.45 W for ATV21HU15N4, 0.47 W for ATV21H075M3X, 0.9 W for ATV21HU22N4, 1.6 W for ATV21HU15M3X, 3.3 W for ATV21HU22M3X, 9.9 W for ATV31HU11M3X |
| Network number of phases | Three phase |
| Electrical connection | Terminal 10 mm² AWG 6 |
| tightening torque | 1.8 N.m |
| maximum earth leakage current | 15 mA at 200...480 V 50 Hz, 13.8 mA at 480 V 60 Hz, 6.7 mA at 230 V 60 Hz |
| power supply voltage | 200…240 V, 380…500 V |
| Tolerance | 10 % |
| Net weight | 1 kg |
| IP degree of protection | IP20, IP41 (upper part) |
| Relative humidity | 0…93 % conforming to IEC 68-2-3 |
| Ambient air temperature for operation | -10…50 °C |
| Ambient air temperature for storage | -25…70 °C |
| Operating altitude | <= 1000 m without current derating, <= 1000 m without derating, 1000...3000 m with current derating 1 % per 100 m |
| Vibration resistance | 1 gn (f= 13…150 Hz) conforming to IEC 60068-2-6, 1.5 mm peak to peak (f= 3…13 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 15 gn for 11 ms conforming to IEC 60068-2-27 |
| Standards | IEC 61800-3 |
Packaging
| Package 1 | 1 PCE, 24.200 cm × 18.700 cm × 5.200 cm (L × W × H), 930.000 g |
| Package 2 | 100 P06, 80.000 cm × 60.000 cm × 75.000 cm (L × W × H), 103.000 kg |
