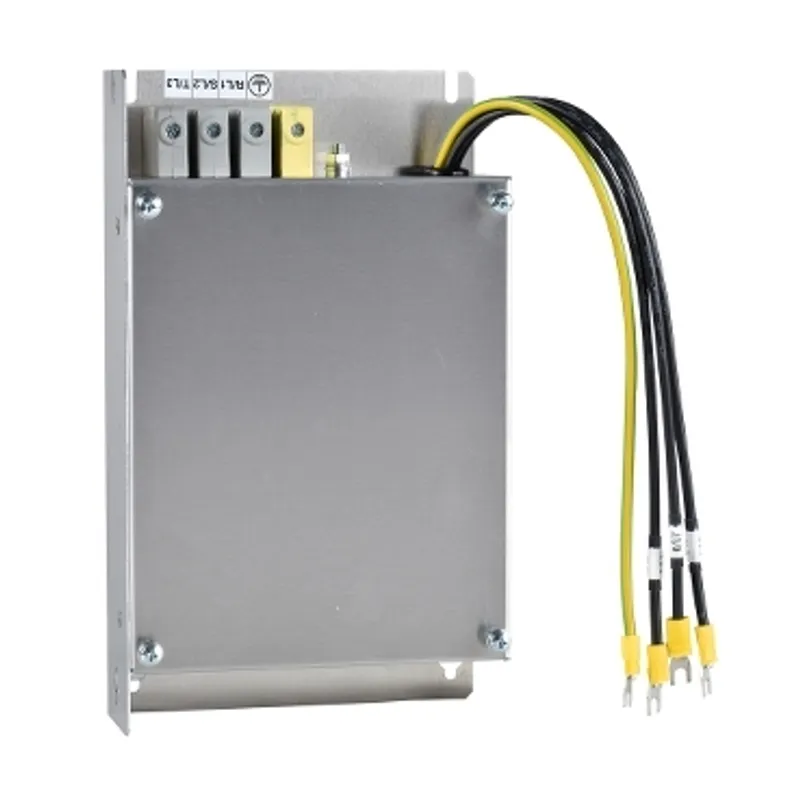

additionnal EMC input filter - 3-phase supply - 47 A

Name: additionnal EMC input filter - 3-phase supply - 47 A
Brand: Schneider Electric
SKU: VW3A31407

MPN: VW3A31407 · Brand: Schneider Electric

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Altivar 31
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	3.15 kg

Shipping & availability

When can VW3A31407 be shipped?

VW3A31407 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up VW3A31407 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for VW3A31407 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for VW3A31407, subject to availability and destination.

Specifications

Range of product	Altivar
Product or component type	EMC input filter
Range compatibility	Lexium 05, Lexium 23 Plus, Altivar Machine ATV320, Altivar 212, Altivar 312, Altivar 31C, Altivar 312 Solar
Product compatibility	Servo drive LXM23 motor: 7.5 kW, ATV212HD11N4, ATV212HU55M3X, ATV212HU75M3X, ATV212HU75N4, ATV31CU55N4, ATV31CU75N4, LXM05AD57N4, LXM05BD57N4, LXM05CD57N4, ATV312HU55M3, ATV312HU75M3, ATV312HU55N4, ATV312HU75N4, Variable speed drive ATV320...C motor: 5.5 kW, 200...240 V three phase, Variable speed drive ATV320...C motor: 7.5 kW, 200...240 V three phase
Product specific application	Radio interference input filter
[In] rated current	47 A
Thermal losses	1.9 W for ATV21HU75N4, 19.3 W for ATV31CU55N4, 3.7 W for ATV21HU55M3X, 3.9 W for ATV21HD11N4, 6.8 W for ATV21HU75M3X
Network number of phases	Three phase
Electrical connection	Terminal 25 mm² AWG 2
tightening torque	4.5 N.m
maximum earth leakage current	45 mA 50 Hz, 20.6 mA at 480 V 60 Hz, 42.8 mA at 480 V 60 Hz
power supply voltage	200…240 V, 380…500 V
Tolerance	10 %
Net weight	3.15 kg
IP degree of protection	IP20, IP41 (upper part)
Relative humidity	0…93 % conforming to IEC 68-2-3
Ambient air temperature for operation	-10…50 °C
Ambient air temperature for storage	-25…70 °C
Operating altitude	<= 1000 m without current derating, <= 1000 m without derating, 1000...3000 m with current derating 1 % per 100 m
Vibration resistance	1 gn (f= 13…150 Hz) conforming to IEC 60068-2-6, 1.5 mm peak to peak (f= 3…13 Hz) conforming to IEC 60068-2-6
Shock resistance	15 gn for 11 ms conforming to IEC 60068-2-27
Standards	IEC 61800-3
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	7.000 cm
Package 1 Width	23.500 cm
Package 1 Length	47.000 cm
Package 1 Weight	3.001 kg
Unit Type of Package 2	S06
Number of Units in Package 2	22
Package 2 Height	75.000 cm
Package 2 Width	60.000 cm
Package 2 Length	80.000 cm
Package 2 Weight	76.022 kg
Warranty (in months)	18
