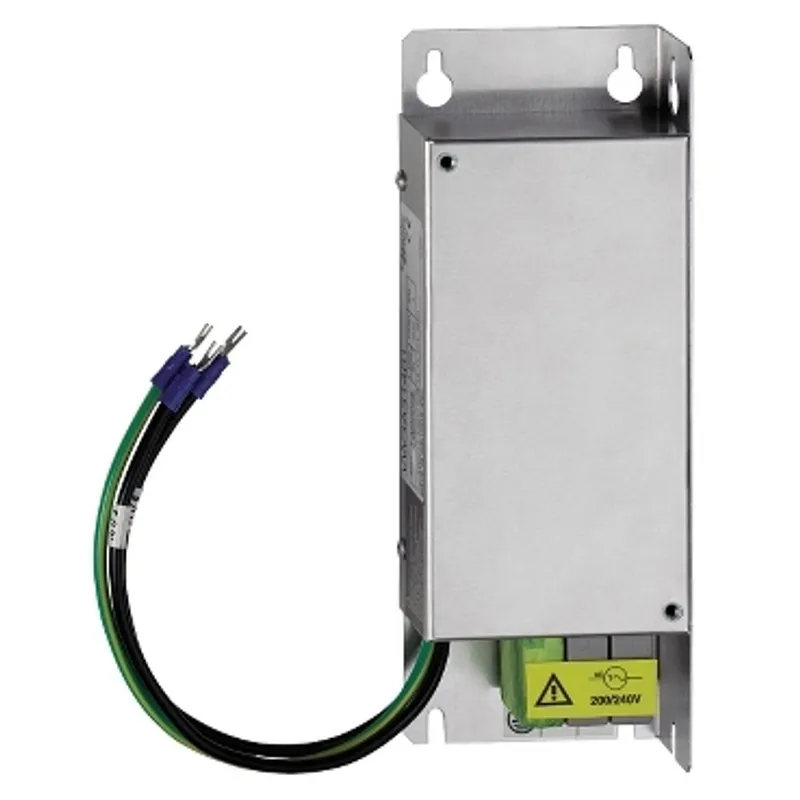

Schneider Electric VW3A31401
Additionnal EMC filter S3 S4 M2 - 1-phase supply - 9 A
- MPN
- VW3A31401
- EAN
- 3389110688948
- Category
- Altivar 31
Price and lead time confirmed within 1 business day
Discontinued by Schneider Electric — we can still source the original VW3A31401 (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Schneider Electric VW3A31401?
"This EMC filter is an option for variable speed drives of the Altivar range and servo drives of the Lexium range." "The additional EMC input filters enable the drives to meet more stringent requirements." "Its rated current is equal to 9A." "It is used to reduce conducted emissions on the line supply below the limits of standards IEC/EN 61800-3 category C1 or C2 and enlarge the maximum motor cable length for category C3." "Its protection index is IP20." "It weighs 0.6kg." "This additional EMC filter can only be used on TN (neutral connection) and TT (earthed neutral) type systems." "It can be mounted beside or under the drive. The drive's power supply is then connected directly via the filter output cable."
Specifications
Specifications
| Range of product | Altivar |
| Product or component type | EMC input filter |
| Range compatibility | Lexium SD3, Altivar 312 Solar, Lexium 23 Plus, Altivar Machine ATV320, Altivar 312, Altivar 31C, Lexium 05 |
| Product compatibility | Servo drive LXM23 motor: 0.1 kW, Servo drive LXM23 motor: 0.2 kW, Servo drive LXM23 motor: 0.4 kW, ATV312H018M2, ATV312H037M2, ATV312H055M2, ATV312H075M2, ATV31C018M2, ATV31C037M2, ATV31C055M2, ATV31C075M2, LXM05AD10F1, LXM05AD10M2, LXM05BD10F1, LXM05BD10M2, LXM05CD10M2, Variable speed drive ATV320...C motor: 0.18 kW, 200...240 V single phase, Variable speed drive ATV320...C motor: 0.37 kW, 200...240 V single phase, Variable speed drive ATV320...C motor: 0.55 kW, 200...240 V single phase, Variable speed drive ATV320...C motor: 0.75 kW, 200...240 V single phase, Variable speed drive ATV320...W/ATV320...WS motor: 0.18 kW, 200...240 V single phase, Variable speed drive ATV320...W/ATV320...WS motor: 0.37 kW, 200...240 V single phase, Variable speed drive ATV320...W/ATV320...WS motor: 0.55 kW, 200...240 V single phase, Variable speed drive ATV320...W/ATV320...WS motor: 0.75 kW, 200...240 V single phase |
| Product specific application | Radio interference input filter |
| [In] rated current | 9 A |
| Thermal losses | 3.7 W for ATV31C018M2 |
| Network number of phases | Single phase |
| maximum earth leakage current | 100 mA 50 Hz |
| power supply voltage | 200…240 V |
| Tolerance | 10 % |
| Net weight | 0.6 kg |
| IP degree of protection | IP20, IP41 (upper part) |
| Relative humidity | 0…93 % conforming to IEC 68-2-3 |
| Ambient air temperature for operation | -10…50 °C |
| Ambient air temperature for storage | -25…70 °C |
| Operating altitude | <= 1000 m without current derating, 1000...3000 m with current derating 1 % per 100 m |
| Vibration resistance | 1 gn (f= 13…150 Hz) conforming to IEC 60068-2-6, 1.5 mm peak to peak (f= 3…13 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 15 gn for 11 ms conforming to IEC 60068-2-27 |
| Standards | IEC 61800-3 |
Packaging
| Package 1 | 1 PCE, 24.000 cm × 18.700 cm × 5.000 cm (L × W × H), 499.000 g |
| Package 2 | 7 S03, 40 cm × 30 cm × 30 cm (L × W × H), 3.891 kg |
| Package 3 | 56 P06, 80.000 cm × 60.000 cm × 75.000 cm (L × W × H), 42.148 kg |
No matching specifications
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
VW3A31401: frequently asked questions
Can I still buy the VW3A31401 now that it is discontinued?
Yes. Schneider Electric has discontinued the VW3A31401, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time. If you are planning an upgrade instead, Schneider Electric names the VW3A4420 as its successor — we can quote both.
When can VW3A31401 be shipped?
VW3A31401 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up VW3A31401 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for VW3A31401 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for VW3A31401, subject to availability and destination.
