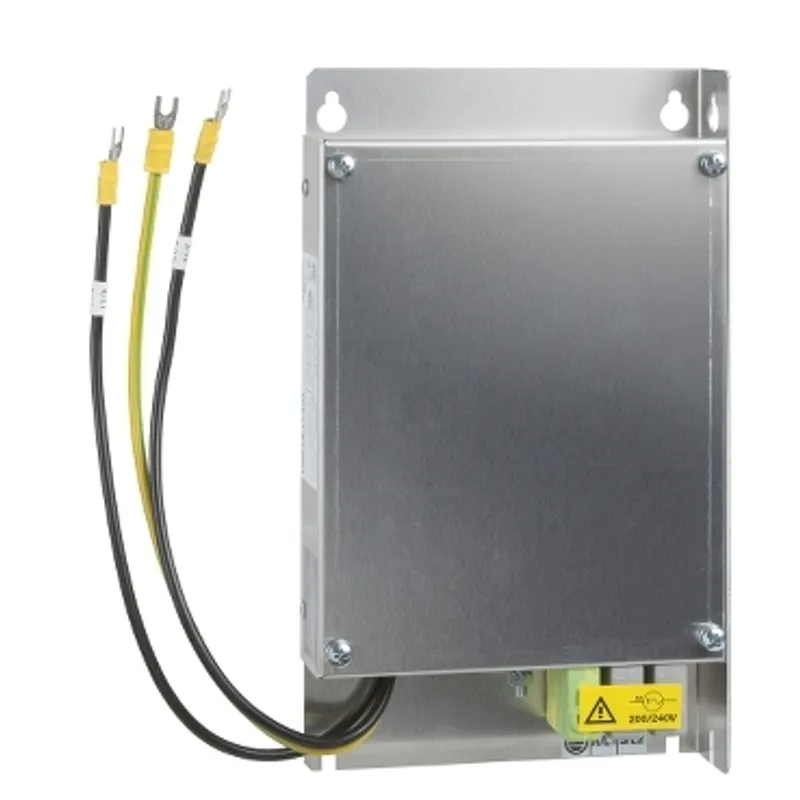

Schneider Electric VW3A31405
Additionnal EMC filter S7 M2 - 1-phase supply - 22 A
- MPN
- VW3A31405
- EAN
- 3389110689471
- Category
- Altivar 31
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Schneider Electric VW3A31405?
Schneider Electric additionnal EMC filter S7 M2 - 1-phase supply - 22 A, manufacturer part number VW3A31405. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Range of product | Altivar |
| Product or component type | EMC input filter |
| Range compatibility | Altivar 312, Lexium 05, Altivar 312 Solar, Altivar 31C, Altivar Machine ATV320 |
| Product compatibility | ATV312HU22M2, ATV31CU22M2, LXM05AD28F1, LXM05AD28M2, LXM05BD28F1, LXM05BD28M2, LXM05CD28M2, Variable speed drive ATV320...C motor: 2.2 kW, 200...240 V single phase, Variable speed drive ATV320...W/ATV320...WS motor: 2.2 kW, 200...240 V single phase |
| Product specific application | Radio interference input filter |
| [In] rated current | 22 A |
| Thermal losses | 7.5 W for ATV31CU22M2 |
| Network number of phases | Single phase |
| maximum earth leakage current | 80 mA 50 Hz |
| power supply voltage | 200…240 V |
| Tolerance | 10 % |
| Net weight | 1.13 kg |
| IP degree of protection | IP20, IP41 (upper part) |
| Relative humidity | 0…93 % conforming to IEC 68-2-3 |
| Ambient air temperature for operation | -10…50 °C |
| Ambient air temperature for storage | -25…70 °C |
| Operating altitude | <= 1000 m without current derating, 1000...3000 m with current derating 1 % per 100 m |
| Vibration resistance | 1 gn (f= 13…150 Hz) conforming to IEC 60068-2-6, 1.5 mm peak to peak (f= 3…13 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 15 gn for 11 ms conforming to IEC 60068-2-27 |
| Standards | IEC 61800-3 |
Packaging
| Package 1 | 1 PCE, 27.700 cm × 23.000 cm × 6.200 cm (L × W × H), 959.000 g |
| Package 2 | 7 S04, 60.000 cm × 40.000 cm × 30.000 cm (L × W × H), 7.466 kg |
No matching specifications
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
VW3A31405: frequently asked questions
When can VW3A31405 be shipped?
VW3A31405 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up VW3A31405 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for VW3A31405 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for VW3A31405, subject to availability and destination.
