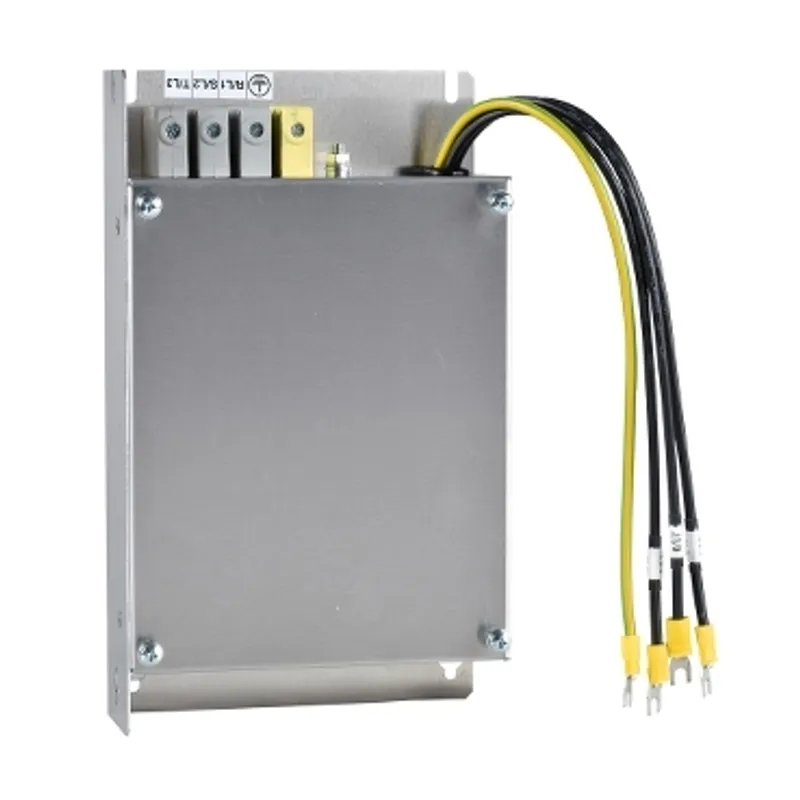

Schneider Electric VW3A31406
Additionnal EMC input filter - 3-phase supply - 25 A
- MPN
- VW3A31406
- EAN
- 3389110689488
- Category
- Altivar 31
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Schneider Electric VW3A31406?
This EMC filter is an option for variable speed drives of the Altivar range and servo drives of the Lexium range. The additional EMC input filters enable the drives to meet more stringent requirements. Its rated current is equal to 25A. It is used to reduce conducted emissions on the line supply below the limits of standards IEC/EN 61800-3 category C1 or C2 and enlarge the maximum motor cable length for category C3. Its protection index is IP20. It weighs 1.650kg. This additional EMC filter can only be used on TN (neutral connection) and TT (earthed neutral) type systems. It can be mounted beside or under the drive. The drive's power supply is then connected directly via the filter output cable.
Specifications
Specifications
| Range of product | Altivar |
| Product or component type | EMC input filter |
| Range compatibility | Altivar Machine ATV320, Lexium 23 Plus, Altivar 212, Altivar 31C, Lexium 05, Altivar 312, Altivar 312 Solar |
| Product compatibility | Servo drive LXM23 motor: 4.5 kW, Servo drive LXM23 motor: 5.5 kW, ATV212HU30M3X, ATV212HU30N4, ATV212HU40M3X, ATV212HU40N4, ATV212HU55N4, ATV31CU22N4, ATV31CU30N4, ATV31CU40N4, LXM05AD22N4, LXM05AD34N4, LXM05AD42M3X, LXM05BD22N4, LXM05BD34N4, LXM05BD42M3X, LXM05CD22N4, LXM05CD34N4, ATV312HU22N4, ATV312HU30N4, ATV312HU40N4, ATV312HU30M3, ATV312HU40M3, Variable speed drive ATV320...C motor: 2.2 kW, 380...500 V three phase, Variable speed drive ATV320...C motor: 3 kW, 380...500 V three phase, Variable speed drive ATV320...C motor: 4 kW, 380...500 V three phase, Variable speed drive ATV320...C motor: 3 kW, 200...240 V three phase, Variable speed drive ATV320...C motor: 4 kW, 200...240 V three phase, Variable speed drive ATV320...W/ATV320...WS motor: 2.2 kW, 380...500 V three phase, Variable speed drive ATV320...W/ATV320...WS motor: 3 kW, 380...500 V three phase, Variable speed drive ATV320...W/ATV320...WS motor: 4 kW, 380...500 V three phase |
| Product specific application | Radio interference input filter |
| [In] rated current | 25 A |
| Thermal losses | 1 W for ATV21HU30N4, 3 W for ATV21HU55N4, 1.6 W for ATV21HU40N4, 15.8 W for ATV31CU22N4, 3.6 W for ATV21HU30M3X, 6.2 W for ATV21HU40M3X |
| Network number of phases | Three phase |
| Electrical connection | Terminal 10 mm² AWG 6 |
| tightening torque | 1.8 N.m |
| maximum earth leakage current | 35 mA 50 Hz, 37 mA at 480 V 60 Hz, 17.8 mA at 480 V 60 Hz |
| power supply voltage | 380…500 V, 200…240 V |
| Tolerance | 10 % |
| Net weight | 1.65 kg, 1.35 kg |
| IP degree of protection | IP20, IP41 (upper part) |
| Relative humidity | 0…93 % conforming to IEC 68-2-3 |
| Ambient air temperature for operation | -10…50 °C |
| Ambient air temperature for storage | -25…70 °C |
| Operating altitude | <= 1000 m without current derating, 1000...3000 m with current derating 1 % per 100 m |
| Vibration resistance | 1 gn (f= 13…150 Hz) conforming to IEC 60068-2-6, 1.5 mm peak to peak (f= 3…13 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 15 gn for 11 ms conforming to IEC 60068-2-27 |
| Standards | IEC 61800-3 |
Packaging
| Package 1 | 1 PCE, 28.200 cm × 23.500 cm × 5.800 cm (L × W × H), 1.496 kg |
| Package 2 | 11 S04, 60.000 cm × 40.000 cm × 30.000 cm (L × W × H), 17.232 kg |
| Package 3 | 44 P06, 80.000 cm × 60.000 cm × 75.000 cm (L × W × H), 78.928 kg |
