Schneider Electric VW3A21212
Communication card LonWorks
- MPN
- VW3A21212
- EAN
- 3606480388590
- Category
- Altivar 212
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via

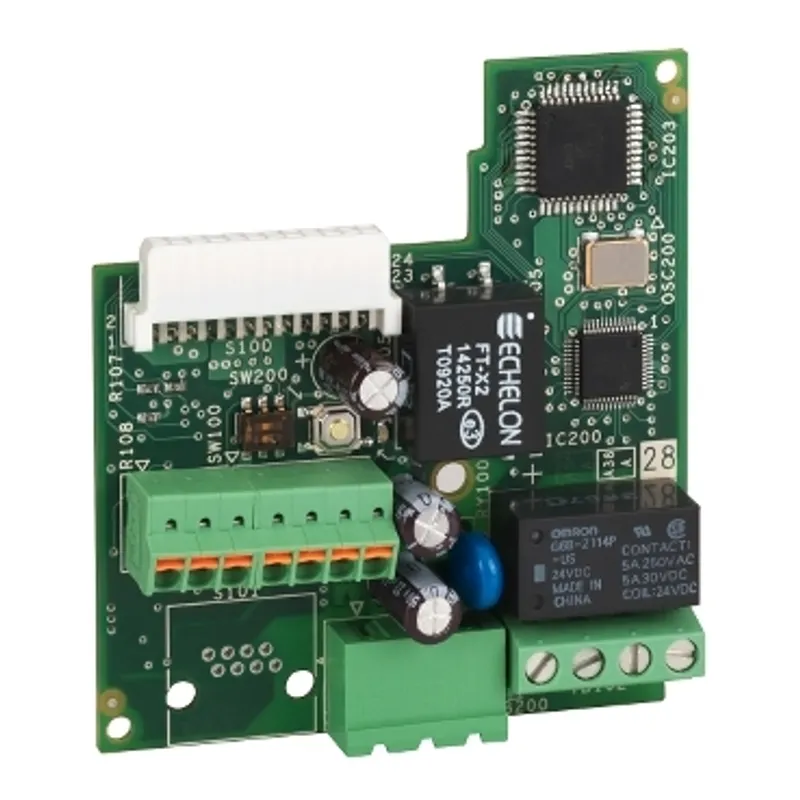

What is the Schneider Electric VW3A21212?
"This LonWorks communication card is an option for ATV212 variable speed drives." "This communication card provides a four-screw terminal block for connection to the LonWorks network." "It weighs 0.05kg" "It is Installed in place of the standard control board that comes mounted in the Altivar 212 drive." "The Altivar 212 drive can easily be adapted to all building management systems thanks to its numerous functions and communication protocols integrated as standard, Modbus, METASYS N2, APOGEE FLN P1 and BACnet."
Specifications
Specifications
| Product or component type | Communication card |
| Range compatibility | Altivar 212 |
| Communication port protocol | LonWorks |
| Electrical connection | Screw/spring terminal block |
| Input type | Multifunction programmable logic input F < 24 V DC 5 mA sink or source, Multifunction programmable contact input R < 24 V DC 5 mA sink or source, Multifunction programmable analog input VIB 10 V DC 30 kOhm |
| Output type | Multifunction programmable relay output FLA, FLB, FLC 250 V AC 1 A 1, Multifunction programmable relay output FLA, FLB, FLC 250 V AC 0.5 A 0.4, Multifunction programmable relay output FLA, FLB, FLC 30 V DC 0.5 A, Power supply output P24 24 V DC 50 mA |
| Net weight | 0.05 kg |
Packaging
| Package 1 | 1 PCE, 23.200 cm × 17.200 cm × 7.200 cm (L × W × H), 183.000 g |
| Package 2 | 7 S03, 40.000 cm × 30.000 cm × 30.000 cm (L × W × H), 2.199 kg |
No matching specifications
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
VW3A21212: frequently asked questions
When can VW3A21212 be shipped?
VW3A21212 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up VW3A21212 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for VW3A21212 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for VW3A21212, subject to availability and destination.
