Schneider Electric VW3A4420

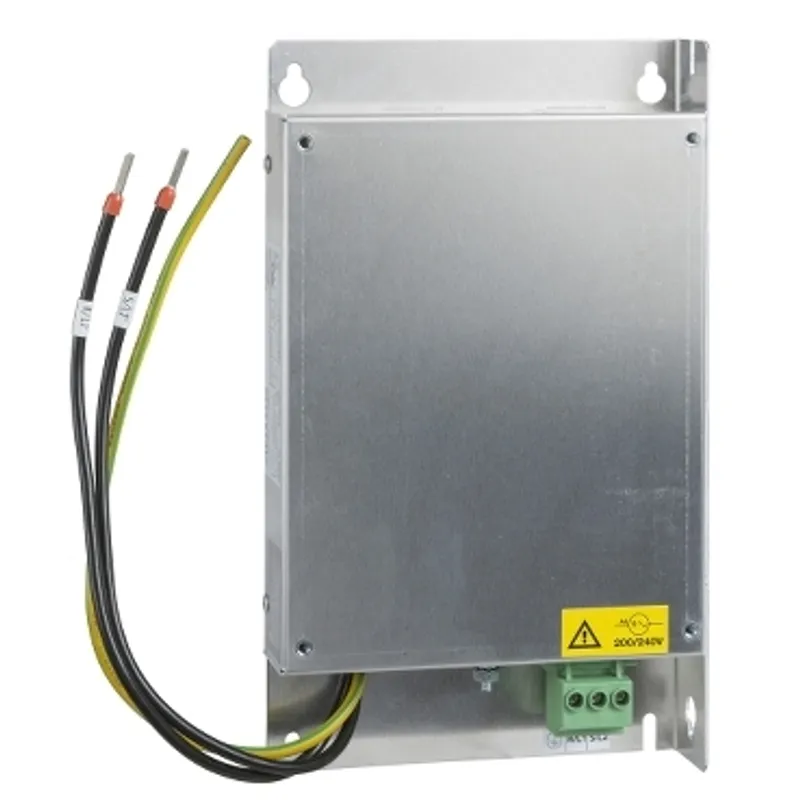

EMC input filter, Altivar, Lexium, 10.1A, 1 phase, 200…240V
- MPN
- VW3A4420
- EAN
- 3606480166877
- Category
- Lexium 32 & Motors
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric VW3A4420?
This EMC input filter enables your servo drive to be in compliance with electromagnetic compatibility requirements. It is designed to reduce conducted emissions on the supply mains and enlarge the maximum motor cable length. Its rated current is 10.1A, its thermal losses are 3.7W and its network rated voltage is 200V to 240V. The external input filters allow Easy Lexium 16 servo drives to comply with the European directive on EMC (electromagnetic compatibility). The maximum servo motor cable length conforming to IEC/EN 61800-3 category C3 (1) in environment 2 is 25meters. It acts as a support for the drives and is attached to them via tapped holes. It weighs 0.600kg. It is a low-pass filter used to improve noise attenuation (or rejection) in problems of electromagnetic compatibility. This product is compliant with IEC/EN 61800-3, category C1, C2 or C3, in Environment 1 (public network). It is compatible with Easy Lexium 16 servo drives. It is sold by one piece. It is mounted beside the variable speed drive. Easy Lexium 16 servo drive and BCH16 servo motor combinations are specially designed for easy integration & commissioning in your machine. Easy Lexium 16 servo drive and BCH16 servo motor combinations provide the right level of performance for the majority of simple motion control machines.
Specifications
Specifications
| Range of product | Lexium, Altivar |
| Product or component type | EMC input filter |
| Range compatibility | Altivar 32, Altivar Machine ATV320, Lexium 28, Lexium 32 |
| Product compatibility | ATV32, 200...240 V, 0.18...0.75 kW, LXM28A, LXM32, single-phase, line current 2.9...5.4 A, Variable speed drive ATV320...B at 0.18 kW, 200...240 V, single phase, Variable speed drive ATV320...B at 0.37 kW, 200...240 V, single phase, Variable speed drive ATV320...B at 0.55 kW, 200...240 V, single phase, Variable speed drive ATV320...B at 0.75 kW, 200...240 V, single phase |
| Product specific application | Radio interference input filter |
| Mounting location | At variable speed drive side |
| Network number of phases | Single phase |
| Maximum cable distance between devices | 20 m conforming to IEC 61800-3 category C1, 50 m conforming to IEC 61800-3 category C2 |
| [In] rated current | 10.1 A |
| Thermal losses | 3.7 W |
| Network rated voltage | 200…240 V |
| Tolerance | - 15...10 % |
| Net weight | 0.6 kg |
| Emc filter compatibility | Type 020 |
Packaging
| Package 1 | 1 PCE, 23.200 cm × 18.200 cm × 5.000 cm (L × W × H), 466.000 g |
| Package 2 | 11 S03, 40.000 cm × 30.000 cm × 30.000 cm (L × W × H), 5.748 kg |
| Package 3 | 88 P06, 80.000 cm × 60.000 cm × 75.000 cm (L × W × H), 55.828 kg |
