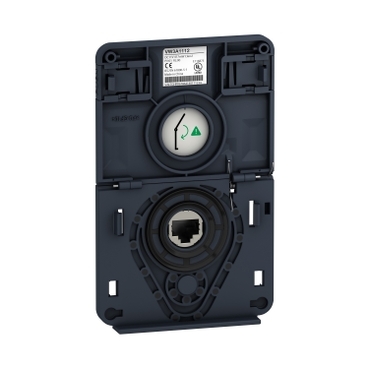

door mounting kit, Altivar, for remote graphic terminal, IP65
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Altivar Process ATV600 |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 0.13 kg |
Shipping & availability
When can VW3A1112 be shipped?
VW3A1112 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up VW3A1112 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for VW3A1112 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for VW3A1112, subject to availability and destination.
This door mounting kit is an accessory for variable speed drives of Altivar range. This door mounting kit is designed for mounting the graphic terminal on enclosure door with IP 65/UL Type 12 degree of protection as standard. It comprises a tightening tool, cover plate to maintain IP 65 if no terminal connected, mounting plate, RJ45 for graphic display terminal, seal, fixing nut, anti-rotation pin, RJ45 for mounting cordset (10m maxi), grounding connector. A remote-mounting cordset VW3A1104Rxx has to be ordered separately.
Specifications
Specifications
| Range of product | Altivar |
| Accessory / separate part category | Mounting and fixing accessory |
| Accessory / separate part type | Mounting kit |
| Accessory / separate part destination | Variable speed drive |
| Range compatibility | Altivar Process ATV900, Altivar Process ATV600, Altivar Easy 610, Altivar Machine ATV340, Altivar Machine ATV320 |
| IP degree of protection | IP65 |
| Kit composition | Fixing nut, Mounting plate, Anti-rotation tee, Tightening wrench |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 6.800 cm |
| Package 1 Width | 9.100 cm |
| Package 1 Length | 12.800 cm |
| Package 1 Weight | 128.000 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 32 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 4.960 kg |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 256 |
| Package 3 Height | 75.000 cm |
| Package 3 Width | 60.000 cm |
| Package 3 Length | 80.000 cm |
| Package 3 Weight | 47.680 kg |
| Warranty (in months) | 18 |
