Schneider Electric TSXDSZ08R5 – TSX Micro - 8 output relay
Discontinued by Schneider Electric — we can still source the original TSXDSZ08R5 (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Modicon TSX Micro |
| Lifecycle | Discontinued |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Country of origin | FR |
| UPC / EAN | 3389110540499 |
| Datasheet | Manufacturer datasheet ↗ |
Shipping & availability
Can I still buy the TSXDSZ08R5 now that it is discontinued?
Yes. Schneider Electric has discontinued the TSXDSZ08R5, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.
When can TSXDSZ08R5 be shipped?
TSXDSZ08R5 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up TSXDSZ08R5 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for TSXDSZ08R5 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for TSXDSZ08R5, subject to availability and destination.

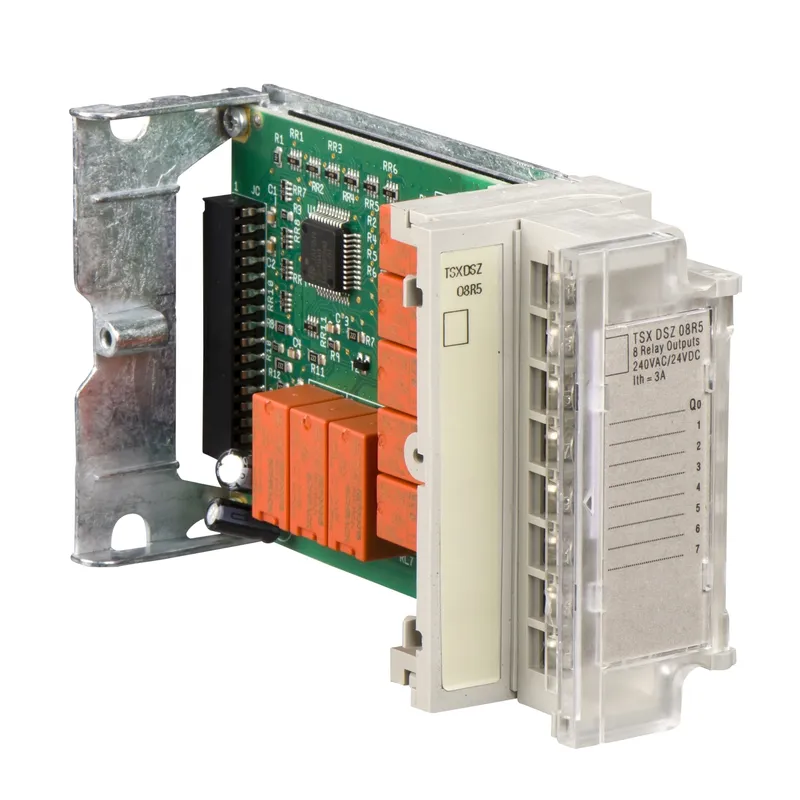

This product is part of the Modicon TSX Micro range, an offer of Programmable Logic Controllers (PLC). This relay discrete output module has normally open contacts with 8 screw terminal block outputs. It is an output module with an output voltage of 19V AC to 264V AC, 10V to 34V DC, a current consumption of 85mA and a power dissipation of 1.5W. The response time is <10ms. It is suitable for infrastructures, machine and manufacturing control applications. The automation platform designed to enhance system's performance. With Micro's accuracy, flexibility and increased productivity, you have a real partner at the heart of the machine. Discontinued by Schneider Electric. PartnerPLC sources discontinued and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.
Specifications
Main
| Range of product | Modicon TSX Micro automation platform |
| Product or component type | Relay discrete output module |
| Discrete output number | 8 screw terminal block |
| Contacts type and composition | NO |
Complementary
| Output voltage limits | 19...264 V AC; 10...34 V DC |
| [Ith] conventional free air thermal current | 3 A |
| Power consumption in VA | 50 VA 24 V AC-12 resistive; 110 VA 48 V AC-12 resistive; 220 VA 110 V AC-12 resistive; 220 VA 220 V AC-12 resistive; 24 VA 24 V AC-15 inductive; 24 VA 48 V AC-15 inductive; 220 VA 220 V AC-15 inductive; 110 VA 110 V AC-15 inductive |
| Power consumption in W | 24 V DC-12 resistive; 24 V DC-13 inductive |
| Response time | < 10 ms |
| Current consumption | 85 mA |
| Power dissipation in W | 1.5 W |
| Isolation voltage | 1500 V for 1 s |
| Insulation resistance | >= 10 mOhm |
