Schneider Electric TSXDSZ04T22 – TSX Micro - 4 discret output DC
Discontinued by Schneider Electric — we can still source the original TSXDSZ04T22 (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Modicon TSX Micro |
| Lifecycle | Discontinued |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Country of origin | FR |
| UPC / EAN | 3389110540482 |
| Datasheet | Manufacturer datasheet ↗ |
Shipping & availability
Can I still buy the TSXDSZ04T22 now that it is discontinued?
Yes. Schneider Electric has discontinued the TSXDSZ04T22, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.
When can TSXDSZ04T22 be shipped?
TSXDSZ04T22 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up TSXDSZ04T22 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for TSXDSZ04T22 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for TSXDSZ04T22, subject to availability and destination.
Schneider Electric TSXDSZ04T22 — TSX Micro - 4 discret output DC (Modicon TSX Micro). Discontinued by Schneider Electric. PartnerPLC sources discontinued and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.
Specifications
Main
| Range of product | Modicon TSX Micro automation platform |
| Product or component type | Discrete output module |
| Discrete output number | 4 screw terminal block |
| Discrete output voltage | 24 V DC |
| Discrete output current | 2 mA |
| Discrete output logic | Positive |
Complementary
| Output voltage limits | 19...30 V |
| Output current limits | 2.5 A |
| Maximum leakage current | 0.5 mA at state 0 |
| [Ures] residual voltage | 0.8 V |
| Load impedance ohmic | 12 Ohm |
| Response time | < 1 ms at state 1; < 1 ms at state 0 |
| Switching frequency | < 0.5/LI² Hz |
| Output overvoltage protection | By zener diode |
| Output short-circuit protection | Current limiter; Thermal circuit breaker |
| Reverse polarity protection | Reverse diode on power supply |
| Paralleling of outputs | Yes : 2 maximum |
| Current consumption | 36 mA |
| Power dissipation in W | 3.8 W by module; 1.15 W by channel |
| Isolation voltage | 1500 V for 1 s |
| Net weight | 0.31 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
| Product data sheet TSXDSZ04T22 |
More Schneider Electric parts

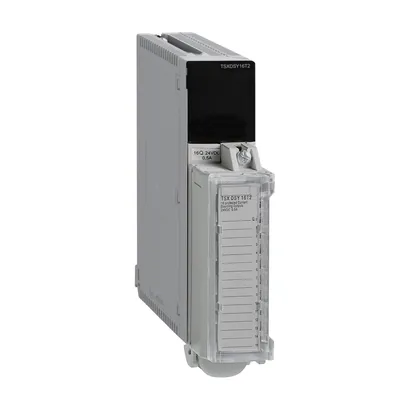

Available on requestdiscrete output module Modicon Premium - 16 O solid state

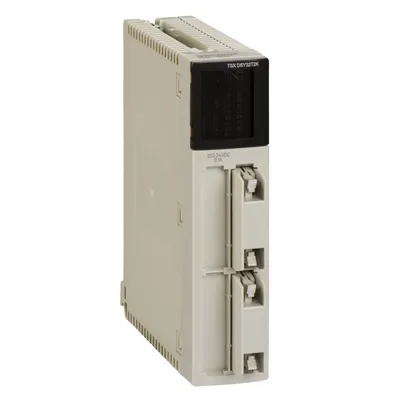

Available on requestdiscrete output module Modicon Premium - 32 O solid state
